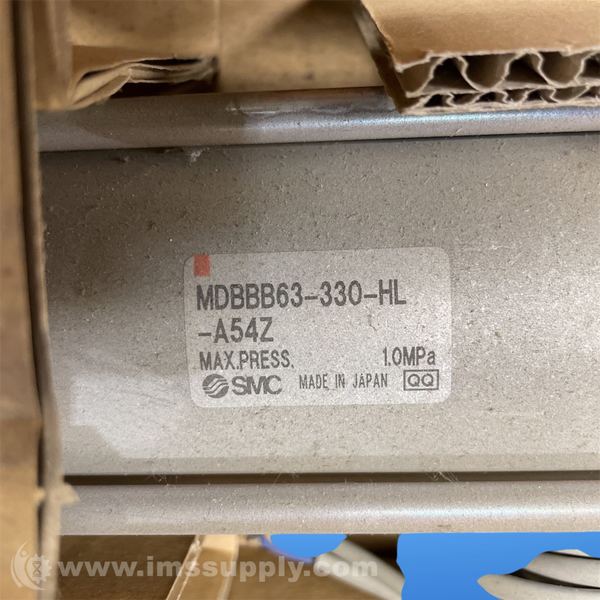

SMC MDBBB63-330-HL-A54Z AIR CYLINDER
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: MDBBB63-330-HL-A54Z
IMS Product Code: 2127148
Packaging: Sold Individually
Description:
SMC MDBBB63-330-HL-A54Z Air Cylinder
Double acting air cylinder with end lock, 63mm bore diameter, 330mm stroke length.
Specifications
- Tube Inner Diameter (mm): 63
- Action: Double acting, single rod
- Fluid: Air
- Proof Pressure: 1.5 MPa
- Maximum operating pressure: 1.0 MPa
- Minimum operating pressure: 0.15 MPa
- Ambient and Fluid Temperature: Without auto switch: -10°C to 70°C (No freezing), With auto switch: -10°C to 60°C (No freezing)
- Lubrication: Not required
- Piston Speed: 50 to 1,000 mm/s
- Stroke Length Tolerance: Up to 250: (0 to +1.0), 251 to 1,000: (0 to +1.4), 1,001 to 1,500: (0 to +1.8)
- Cushioning: Air cushion
- Connection Port Size (Rc, NPT, G): 1/4
- Mount Support Type: Basic type, foot type, rod-end flange type, head-end flange type, Single clevis type, double clevis type, center trunnion type
- Lock position: Head end
- Retention (MAX.) N: 2,140
- Backlash: 1.5 mm or less
- Manual release: Non-locking type, locking type
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
