SMC MGPM25-40Z COMPACT GUIDE CYLINDER
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: MGPM25-40Z
IMS Product Code: 2114069
Packaging: Sold Individually
Description:

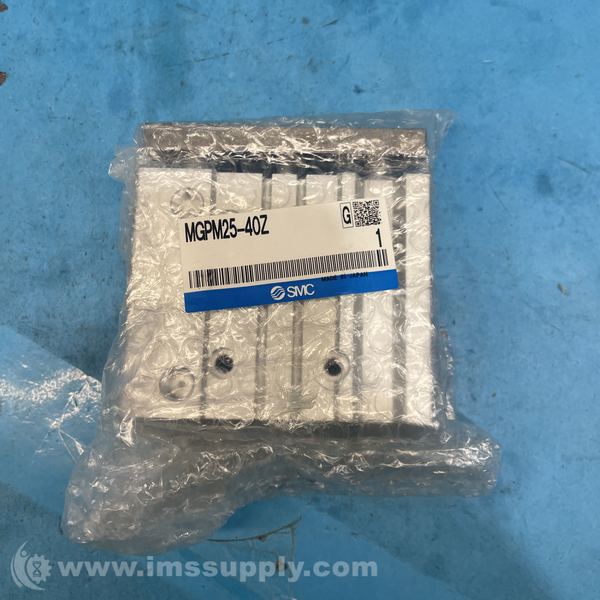

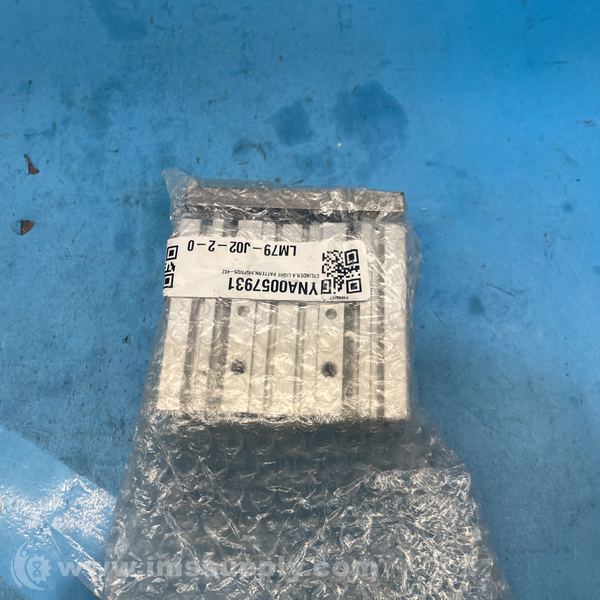

SMC MGPM25-40Z Compact Guide Cylinder
Double-acting compact guide cylinder with slide bearing, 25mm bore, 40mm stroke, Rc port; no auto switch.
Specifications
- Bore Size: 25 mm
- Stroke: 40 mm
- Piston Action: Double-Acting
- Rod Type: Single Rod
- Bearings: Slide Bearing
- Cushion Type: Rubber Bumper
- Port Size: 1/8 BSPT
- Operating Pressure Range: +0.1 to +1 MPa
- Maximum Operating Pressure: +1 MPa
- Minimum Operating Pressure: +0.1 MPa
- Push Force At 100 Psi: 344 N
- Pull Force At 100 Psi: 265 N
- Operating Temperature Range: -10 to +60 degrees C
- Overall Length: 93.5 mm
- Overall Width: 93 mm
- Overall Height: 42 mm
- Mounting Type: Direct
- Port Thread Standard: Rc
- Port Gender: Female
- Rod Gender: Female
- Rod Size: 12 mm
- Series: MGP-Z
- Product Type: Guided Air Cylinders
- Weight: 2.07 Kg
