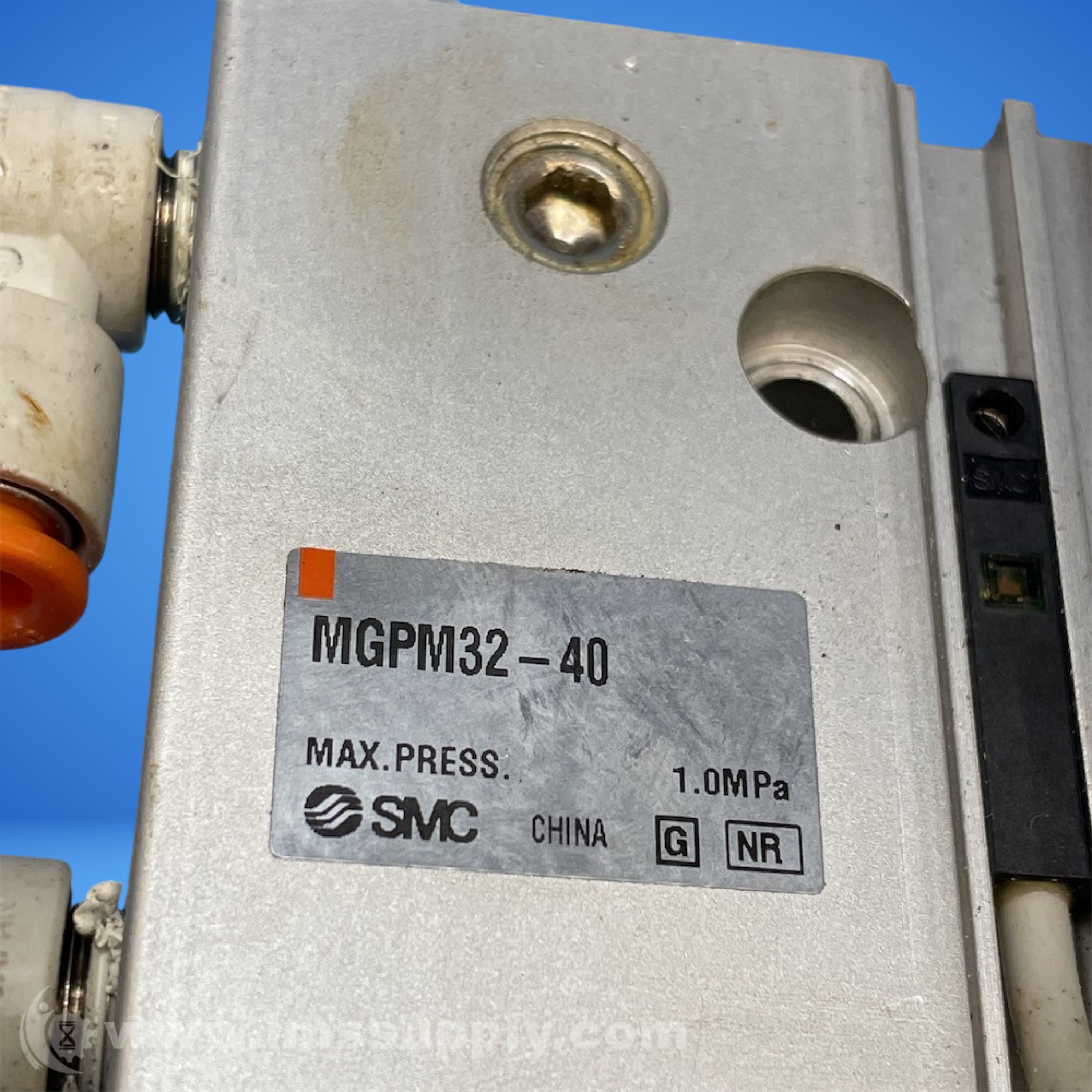

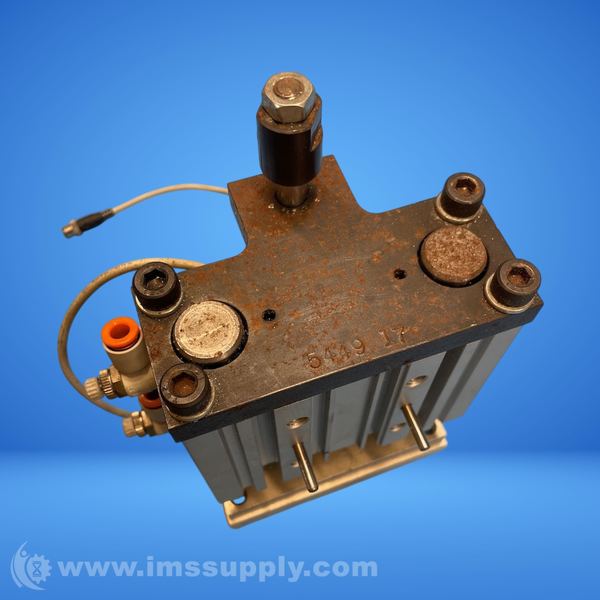

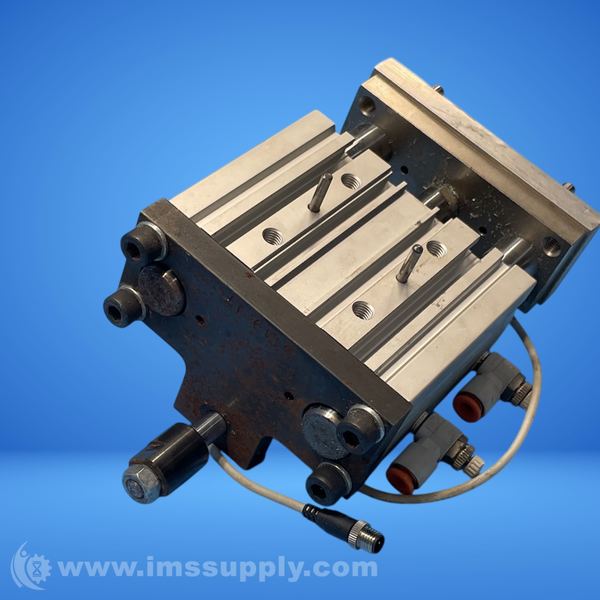

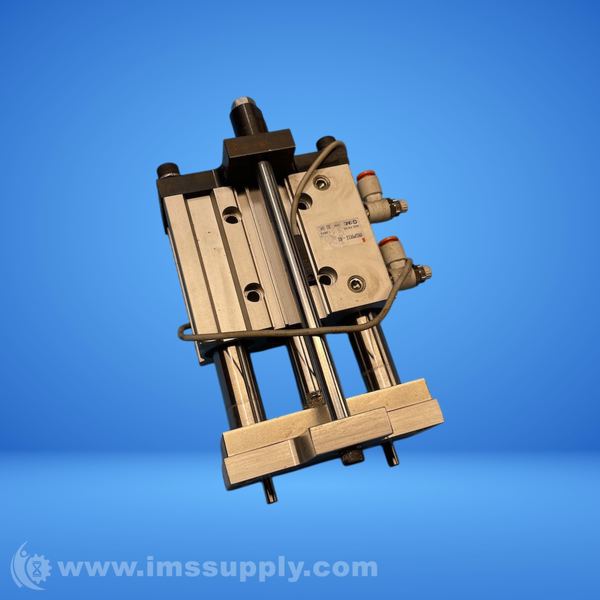

SMC MGPM32-40 COMPACT GUIDE CYLINDER
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: MGPM32-40
IMS Product Code: 2133339
Packaging: Sold Individually
Description:
SMC MGPM32-40 Compact Guide Cylinder
Double-acting compact guide cylinder with slide bearing, 32 mm bore, 40 mm stroke.
Specifications
- Bore Size: 32 mm
- Stroke: 40 mm
- Piston Action: Double-Acting
- Rod Type: Single Rod
- Bearings: Slide Bearing
- Cushion Type: Rubber Bumper
- Port Size: 1/8 BSPT
- Operating Pressure Range: +0.1 to +1 MPa
- Push Force At 100 Psi: 563 N
- Pull Force At 100 Psi: 422 N
- Operating Temperature Range: -10 to +60 degrees C
- Overall Length: 137 mm
- Overall Width: 112 mm
- Overall Height: 48 mm
- Port Thread Standard: BSPT
- Maximum Operating Pressure: +1 MPa
- Minimum Operating Pressure: +0.1 MPa
- Mounting Type: Direct
- Rod Size: 16 mm
Used (Special):

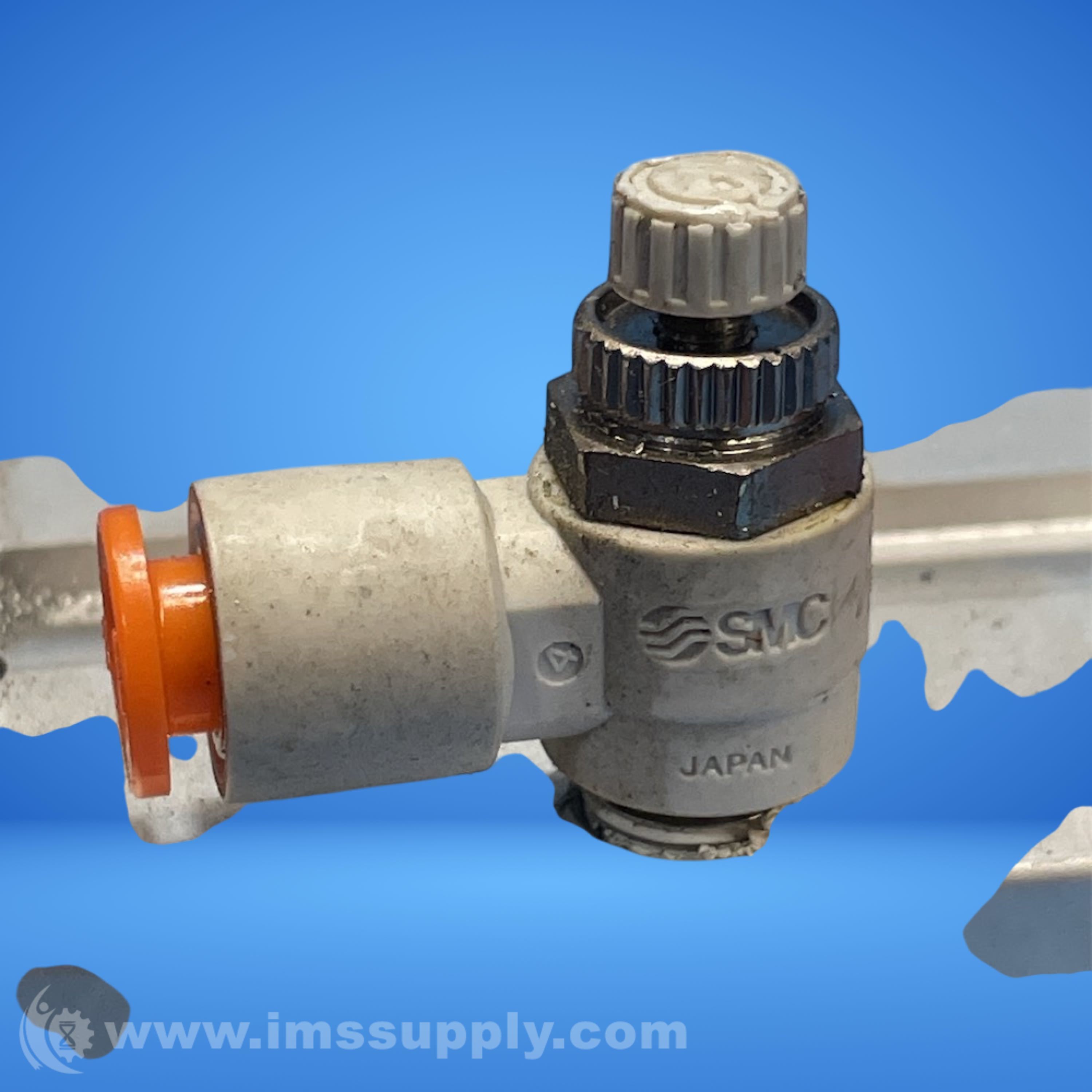

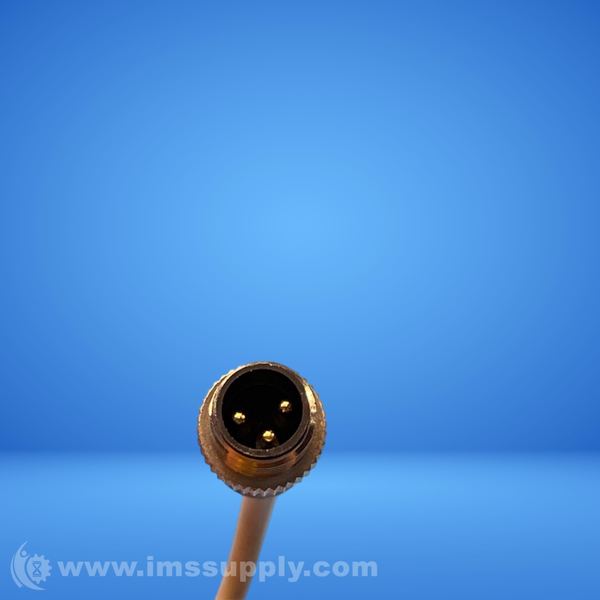

Part comes with SMC attachments and cable.
Availability: 10 In Stock
Ships today if ordered in the next 12 hours and 56 minutes.
