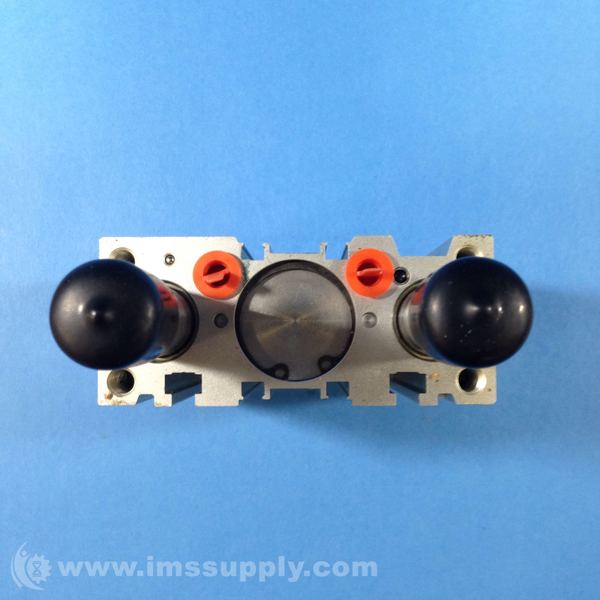

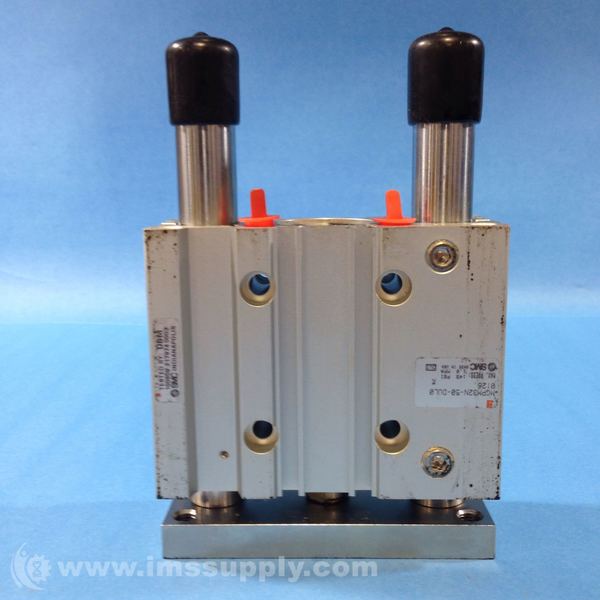

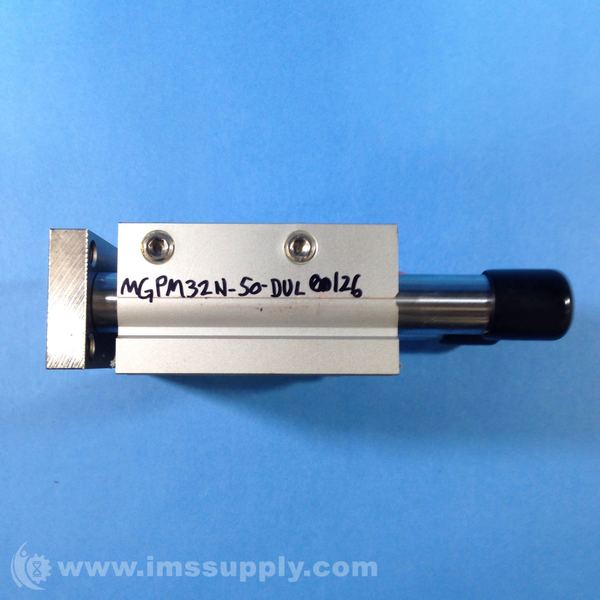

SMC MGPM32N-50-DUL0 GUIDE CYLINDER
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: MGPM32N-50-DUL0
IMS Product Code: 1733992
Packaging: Sold Individually
Description:
CYL, COMPACT GUIDE, SLIDE *LQA
SMC Products Line: ACTUATOR
SMC Family: MGP COMPACT GUIDE CYLINDER
SMC Family Code: LM
SMC Class Description: 32MM MGP SLIDE BEARING
Weight: 4.50944 lb
SPECS
| Actuation | : | Double Acting |
| Bearing Type | : | Slide |
| Body Style | : | Compact |
| Brand/Series | : | MGP |
| Material, Body | : | Aluminum Alloy |
| Pressure Range | : | 0.12 to 1 MPa |
| Size, Bore | : | 32 mm |
| Size, Port | : | 1/8 NPT |
| Speed, Piston | : | 50 to 500 mm/Sec. |
| Stroke | : | 50 mm |
| Type | : | Guided |
| Bore size (mm) | Model | Standard stroke (mm) | |||||||||||||||
| 10 | 20 | 25 | 30 | 40 | 50 | 75 | 100 | 125 | 150 | 175 | 200 | 250 | 300 | 350 | 400 | ||
| 32 | MGPM32 | ? | ? | 1.69 | ? | ? | 2.07 | 2.47 | 2.85 | 3.24 | 3.62 | 4.00 | 4.38 | 5.33 | 6.09 | 6.86 | 7.62 |
