SMC MGPM40-200Z COMPACT GUIDED CYLINDER
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: MGPM40-200Z
IMS Product Code: 2150170
Packaging: Sold Individually
Description:

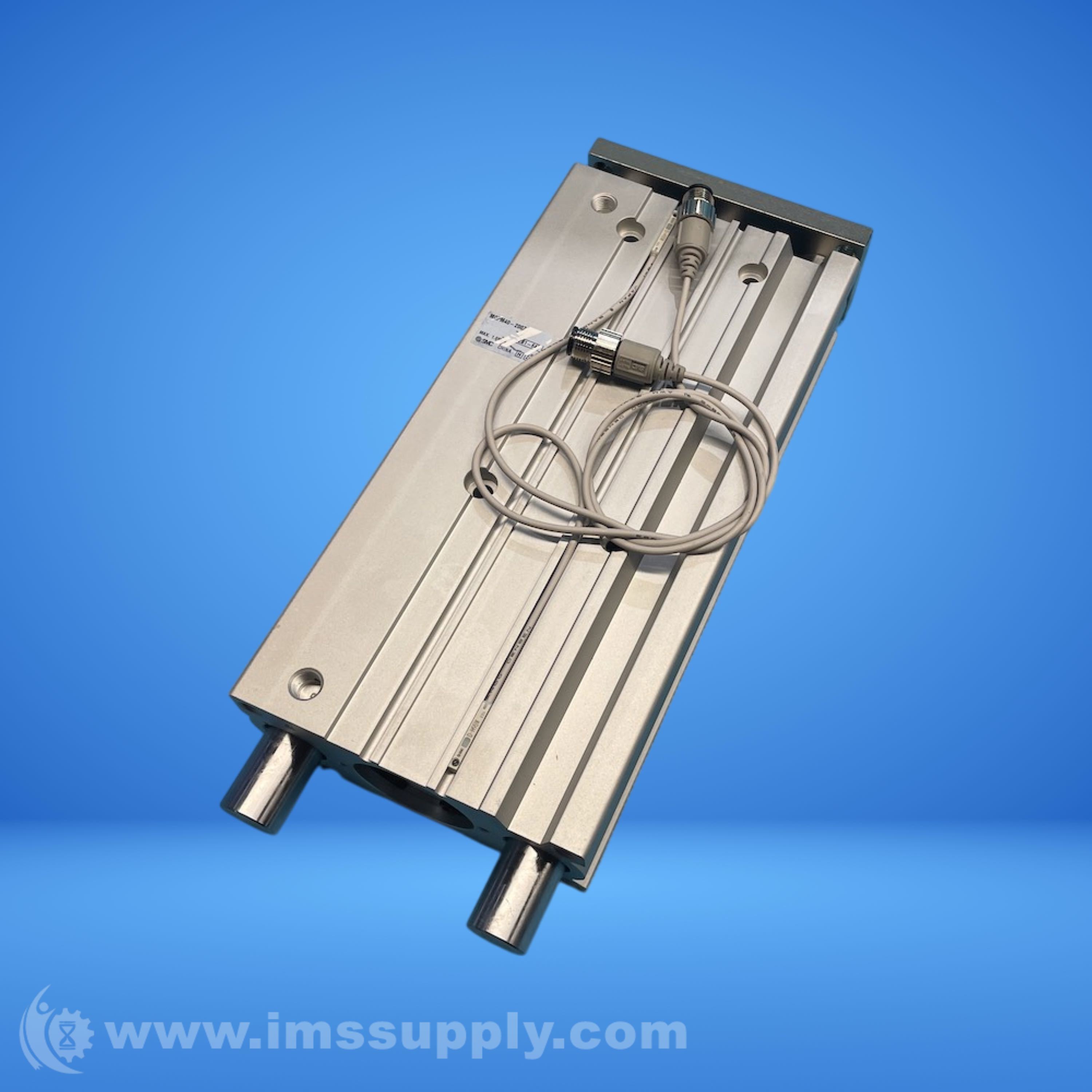

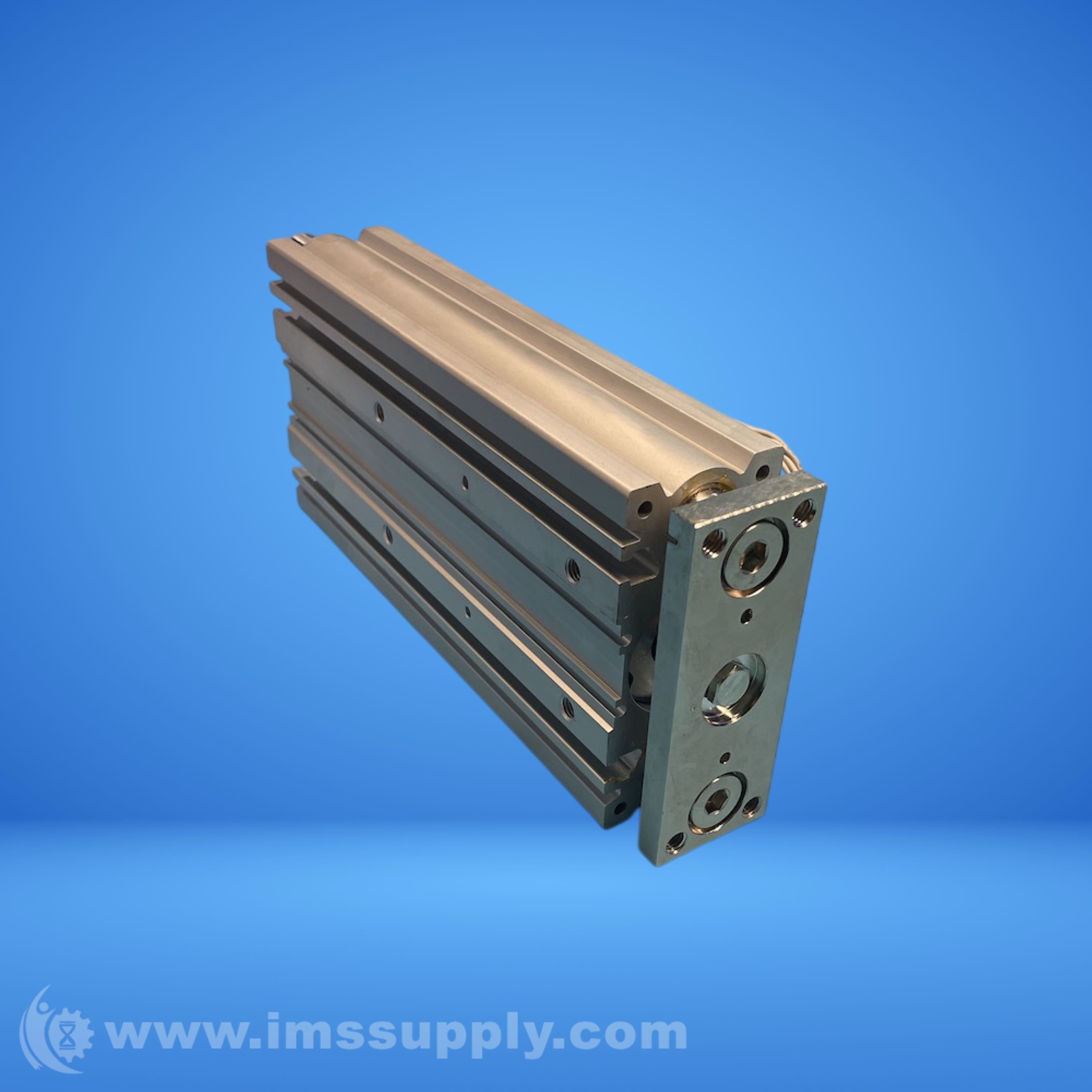

SMC MGPM40-200Z Compact Guided Cylinder
Compact guided air cylinder with slide bearing, 40 mm bore diameter, 200 mm stroke length, double acting.
Specifications
- Bore Diameter: 40 mm
- Stroke Length: 200 mm
- Cylinder Action: Double Acting
- Cylinder Type: Compact
- Mounting Style: Through Hole
- Body Material: Aluminum
- Body Material Grade: A6063S-T5
- Body Material Finish: Hard Anodized
- Bearing Type: Slide Bearing
- Port Location: Side Ported; Top Ported
- Maximum Operating Pressure: 145 psi
- Maximum Operating Temperature: 140 F
- Overall Height: 120 mm
- Overall Width: 44 mm
- Cushion Type: Rubber Bumper
- Port Thread Standard: Rc
- Series: MGP-Z
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
