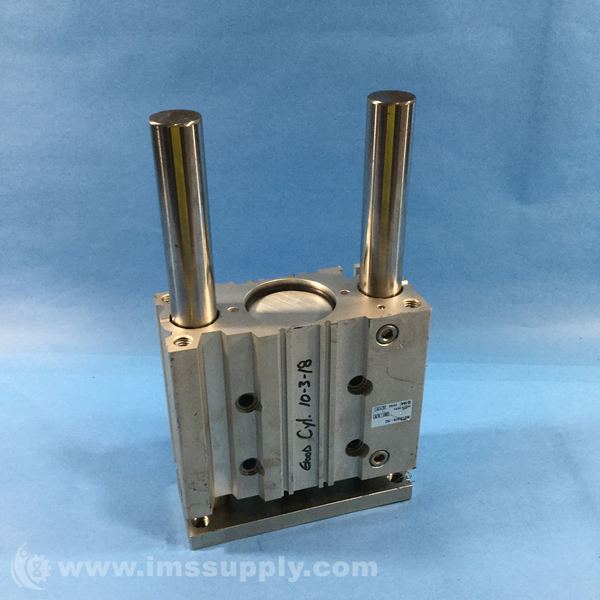

SMC MGPM50TN-75Z COMPACT GUIDED CYLINDER
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: MGPM50TN-75Z
IMS Product Code: 1830070
Packaging: Sold Individually
Description:
SMC MGPM50TN-75Z Compact Guided Cylinder
Compact guided air cylinder with slide bearing, 50mm bore diameter, 75mm stroke length, double acting, aluminum body, hard anodized finish.
Specifications
- Bore Diameter: 50 mm
- Stroke Length: 75 mm
- Cylinder Action: Double Acting
- Cylinder Type: Compact
- Mounting Style: Through Hole
- Body Material: Aluminum
- Body Material Grade: A6063S-T5
- Body Material Finish: Hard Anodized
- Bearing Type: Slide Bearing
- Port Location: Side Ported; Top Ported
- Port Thread Type: M5x0.8
- Maximum Operating Pressure: 145 psi
- Maximum Operating Temperature: 140 degrees F
- Overall Height: 148 mm
- Overall Width: 60 mm
- Series: MGP
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
