SMC MGPM63TN-75Z GUIDED CYLINDER
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: MGPM63TN-75Z
IMS Product Code: 2137201
Packaging: Sold Individually
Description:

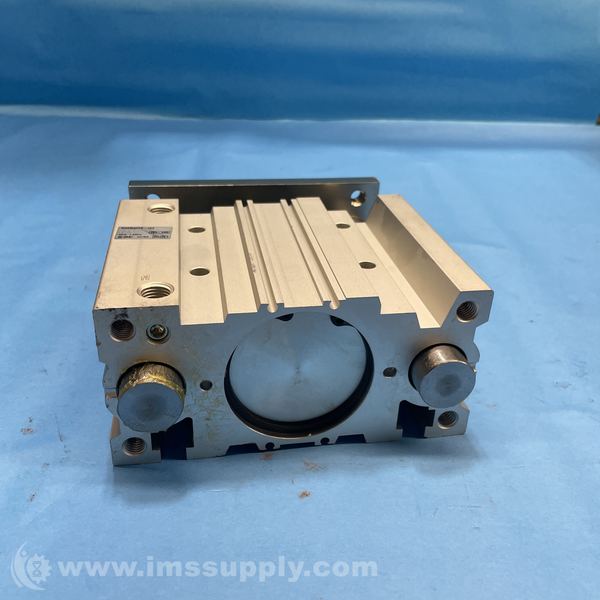

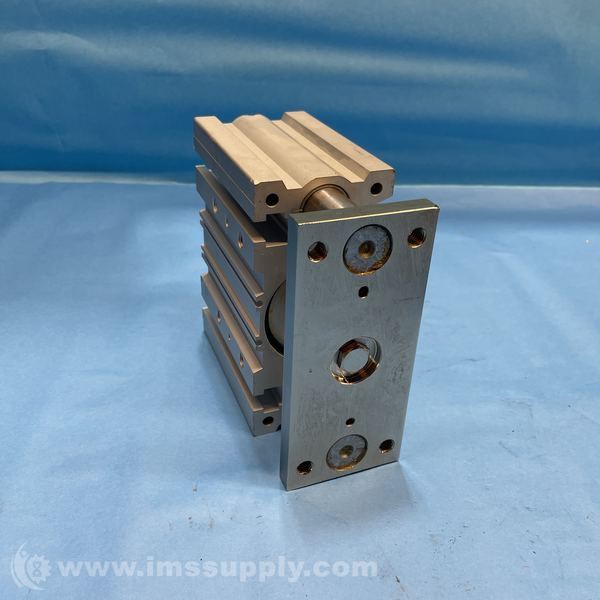

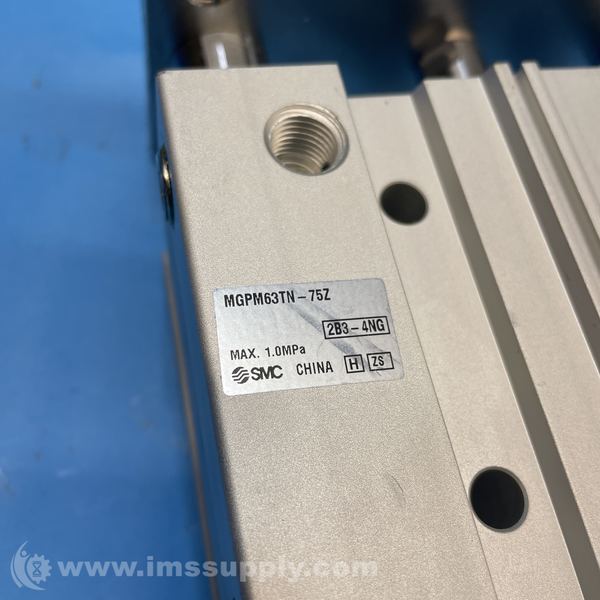

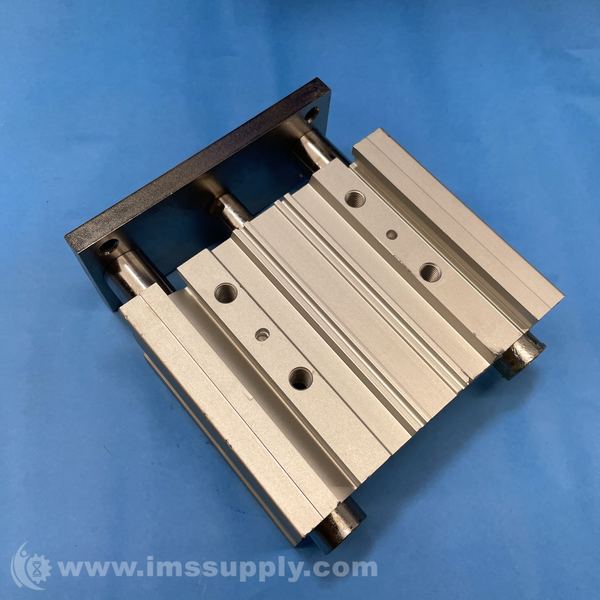

SMC MGPM63TN-75Z Guided Cylinder
Guided compact air cylinders feature dual rods which provide enhanced stability and resistance to load rotation.
Specifications
- Bore size (mm): 63
- Standard stroke (mm): 75
- Weight: 16.18136 lb
- Bearings: Slide Bearing
- Cushion Type: Rubber Bumper
- Number of Switches: 2
- Port Thread Standard: NPT
- Series: MGP-Z
- Product Type: Guided Air Cylinders
- Cylinder Action: Double Acting
- Cylinder Type: Compact
- Mounting Style: Through Hole
- Body Material: Aluminum
- Maximum Operating Pressure: 145 psi
- Body Material Grade: A6063S-T5
- Body Material Finish: Hard Anodized
- Maximum Operating Temperature: 140 degrees F
- Overall Height: 162 mm
- Overall Width: 70 mm
- Bearing Type: Slide Bearing
- Port Location: Side Ported; Top Ported
- Stroke: 75 mm
- Pneumatic port size: M5
- Mounting type: Through hole
- Body type: Double rod
- Operating pressure: 0.1 to 0.7 MPa
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 2 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
