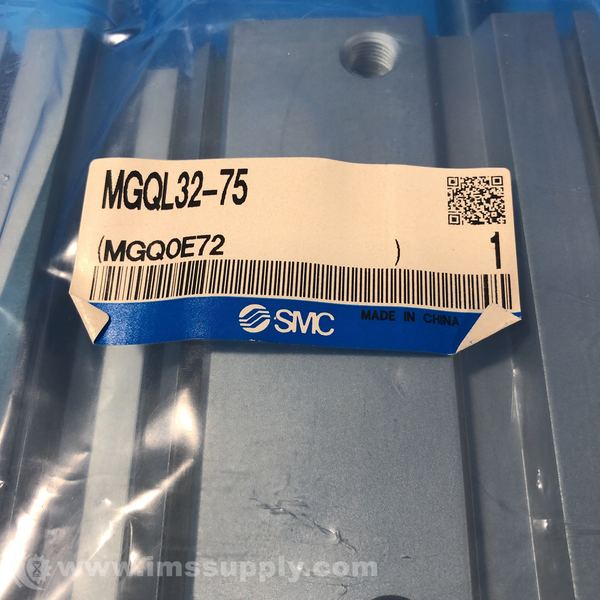

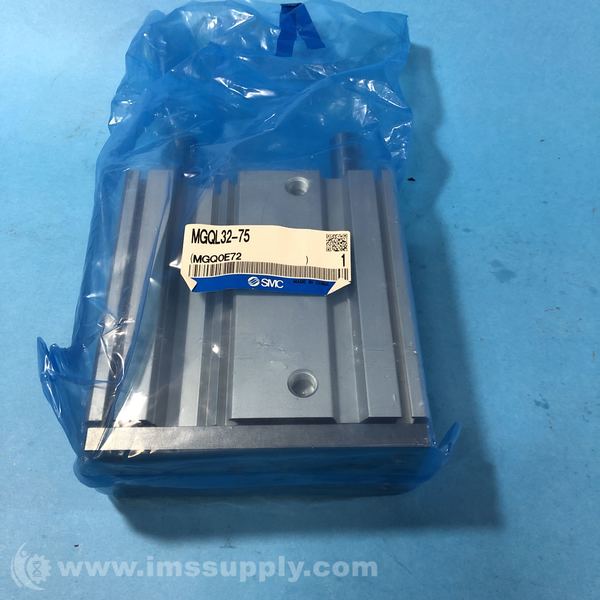

SMC MGQL32-75 GUIDED CYLINDER
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: MGQL32-75
IMS Product Code: 1793454
Packaging: Sold Individually
Description:
SMC MGQL32-75 Guided Cylinder
Compact guided cylinder with ball bushing bearing, 32mm bore size, 75mm stroke, double-acting.
Specifications
- Bore size (mm): 32
- Standard stroke (mm): 75
- Weight: 3.53 lbs
- Guided Cylinder Type: Heavy Duty Compact Guide Cylinder
- Bore Diameter: 32 mm
- Stroke: 75 mm
- Piston Action: Double-Acting
- Rod Type: Single Rod
- Bearings: Ball Bushing Bearing
- Cushion Type: Rubber Bumper
- Port Size: 1/8 BSPT
- Proof Pressure: +1.5 MPa
- Operating Pressure Range: +0.1 to +1 MPa
- Push Force At 100 Psi: 563 N
- Pull Force At 100 Psi: 422 N
- Operating Temperature Range: -10 to +60 degrees C
- Overall Length: 165 mm
- Overall Width: 114 mm
- Overall Height: 51 mm
- Port Thread Standard: BSPT
- Maximum Operating Pressure: +1 MPa
- Minimum Operating Pressure: +0.1 MPa
- Mounting Type: Direct
- Port Gender: Female
- Rod Gender: Female
- Rod Size: 16 mm
- Series: MGQ
- Product Type: Guided Air Cylinders
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships today if ordered in the next 20 minutes.
