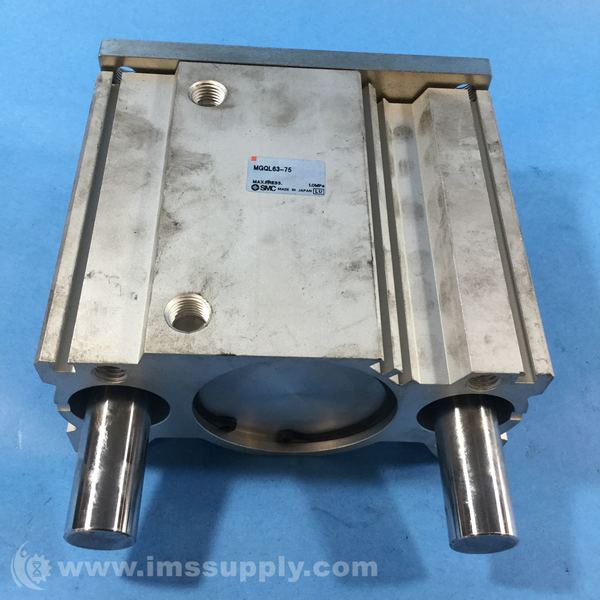

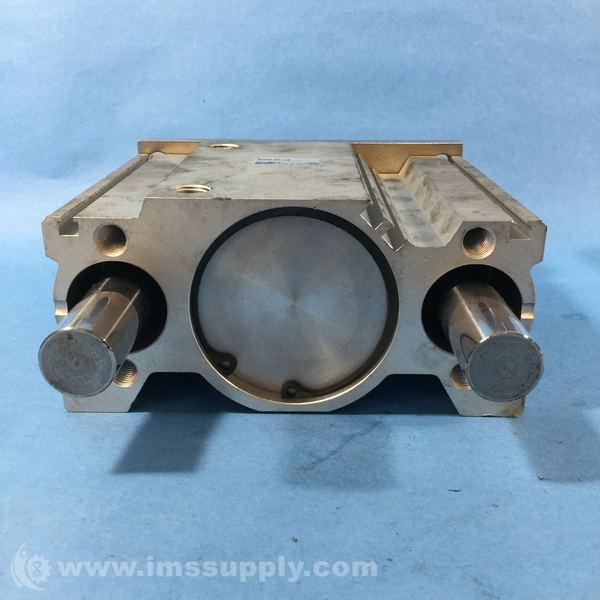

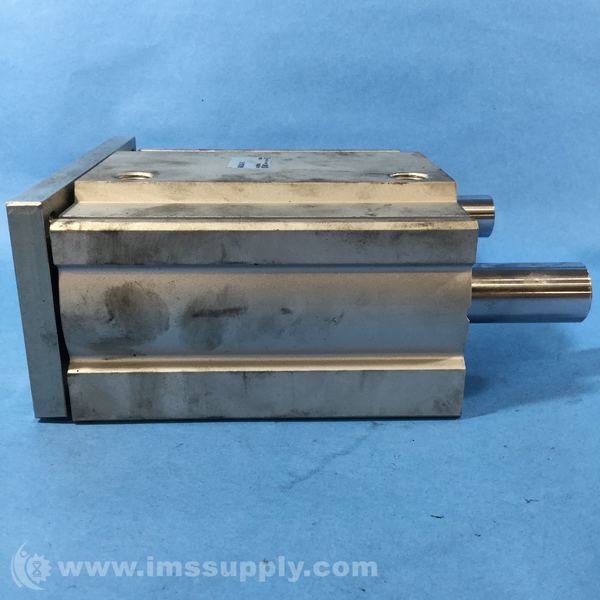

SMC MGQL63-75 GUIDED AIR CYLINDER
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: MGQL63-75
IMS Product Code: 1793323
Packaging: Sold Individually
Description:
SMC MGQL63-75 Guided Air Cylinder
Double-acting guided air cylinder with 63 mm bore size and 75 mm stroke. Features ball bushing bearing and rubber bumper cushioning.
Specifications
- Bore Diameter: 63 mm
- Stroke: 75 mm
- Piston Action: Double-Acting
- Rod Type: Single Rod
- Bearings: Ball Bushing Bearing
- Cushion Type: Rubber Bumper
- Port Size: 1/4 BSPT
- Operating Pressure Range: +0.1 to +1 MPa
- Push Force At 100 Psi: 2182 N
- Pull Force At 100 Psi: 1962 N
- Operating Temperature Range: -10 to +60 degrees C
- Overall Length: 177 mm
- Overall Width: 150 mm
- Overall Height: 72 mm
- Port Thread Standard: BSPT
- Maximum Operating Pressure: +1 MPa
- Minimum Operating Pressure: +0.1 MPa
- Mounting Type: Direct
- Rod Size: 20 mm
- Series: MGQ
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
