SMC MGQM100-50 GUIDED AIR CYLINDER
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: MGQM100-50
IMS Product Code: 2049352
Packaging: Sold Individually
Description:

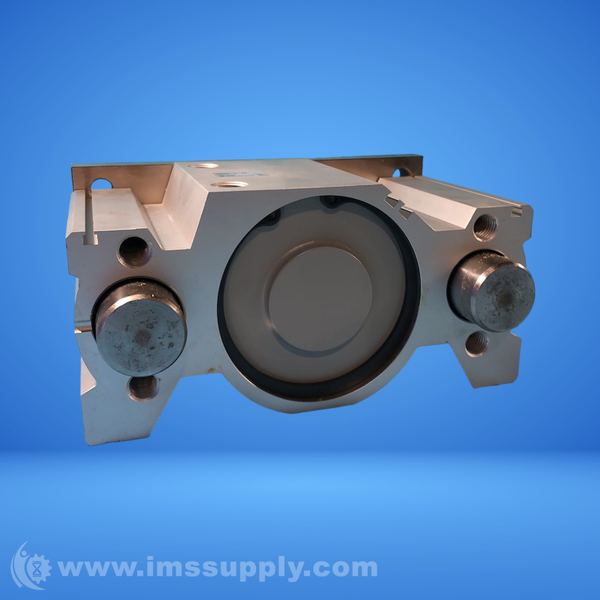

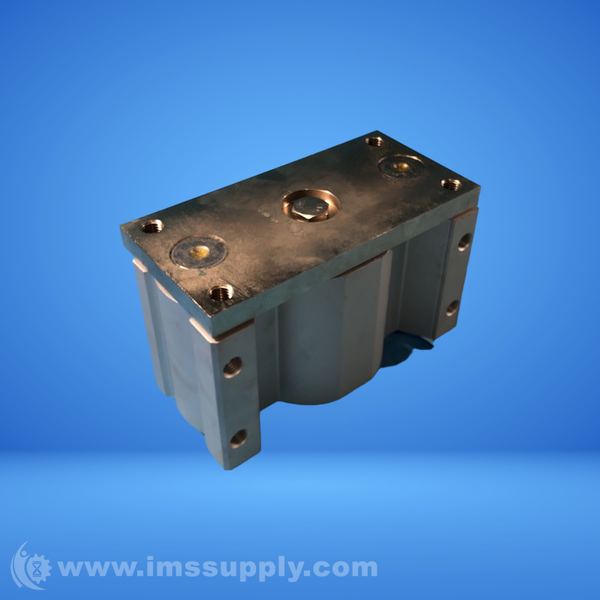

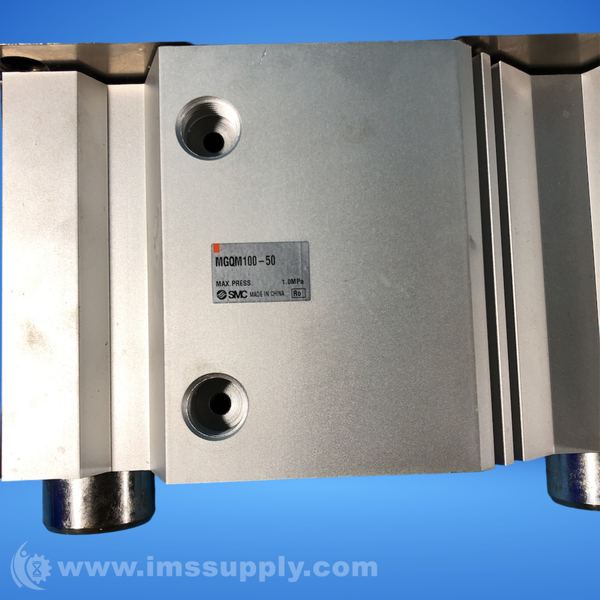

SMC MGQM100-50 Guided Air Cylinder
Double-acting guided air cylinder with 100 mm bore size and 50 mm stroke.
Specifications
- Bearings: Slide Bearing
- Bore Diameter: 100 mm
- Cushion Type: Rubber Bumper
- Guided Cylinder Type: Heavy Duty Compact Guide Cylinder
- Maximum Operating Pressure: +1 MPa
- Minimum Operating Pressure: +0.1 MPa
- Mounting Type: Direct
- Operating Pressure Range: +0.1 to +1 MPa
- Operating Temperature Range: -10 to +60 degrees C
- Overall Height: 112 mm
- Overall Length: 155 mm
- Overall Width: 224 mm
- Piston Action: Double-Acting
- Port Gender: Female
- Port Size: 3/8 BSPT
- Port Thread Standard: BSPT
- Proof Pressure: +1.5 MPa
- Pull Force At 100 Psi: 5003 N
- Push Force At 100 Psi: 5498 N
- Rod Gender: Female
- Rod Size: 30 mm
- Rod Type: Single Rod
- Series: MGQ
- Stroke: 50 mm
- Product Type: Guided Air Cylinders
- Weight: 22.16190 lb
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
