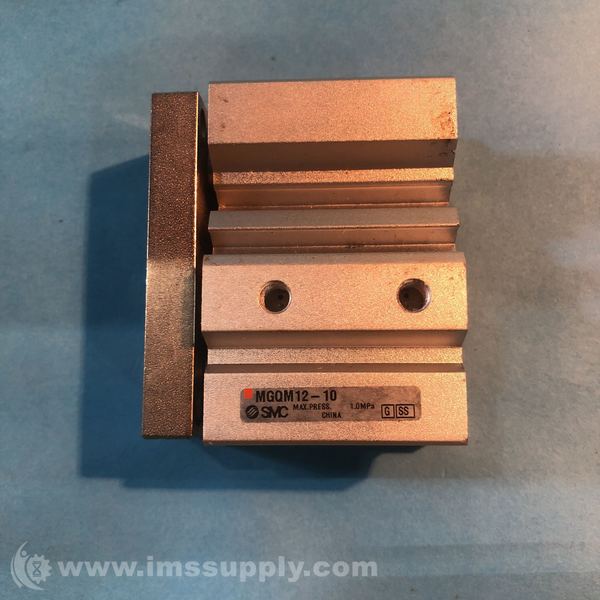

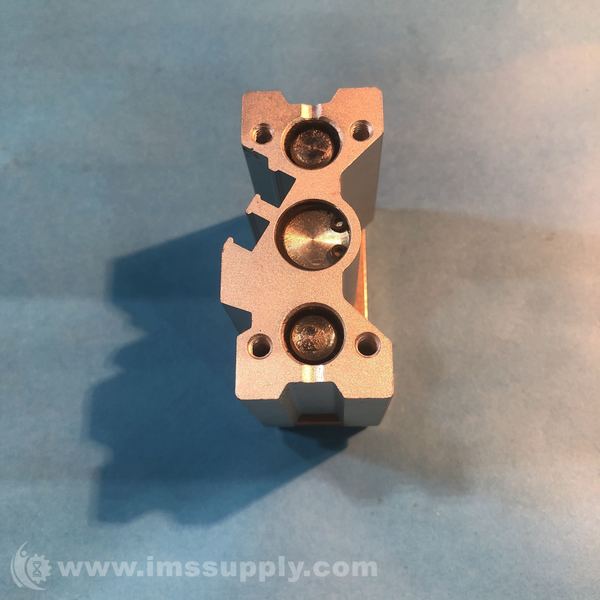

SMC MGQM12-10 GUIDED CYLINDER
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: MGQM12-10
IMS Product Code: 1998460
Packaging: Sold Individually
Description:
SMC MGQM12-10 Guided Cylinder
Double-acting guided air cylinder with slide bearing, 12mm bore size, 10mm stroke.
Specifications
- Bore Size: 12 mm
- Stroke: 10 mm
- Piston Action: Double-Acting
- Rod Type: Single Rod
- Bearings: Slide Bearing
- Cushion Type: Rubber Bumper
- Port Size: M5x0.8
- Operating Pressure Range: +0.12 to +1 MPa
- Push Force At 100 Psi: 79 N
- Pull Force At 100 Psi: 60 N
- Operating Temperature Range: -10 to +60 degrees C
- Overall Length: 49 mm
- Overall Width: 58 mm
- Overall Height: 29 mm
- Series: MGQ
- Maximum Operating Pressure: +1 MPa
- Minimum Operating Pressure: +0.12 MPa
- Mounting Type: Direct
- Port Gender: Female
- Rod Gender: Female
- Rod Size: 6 mm
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
