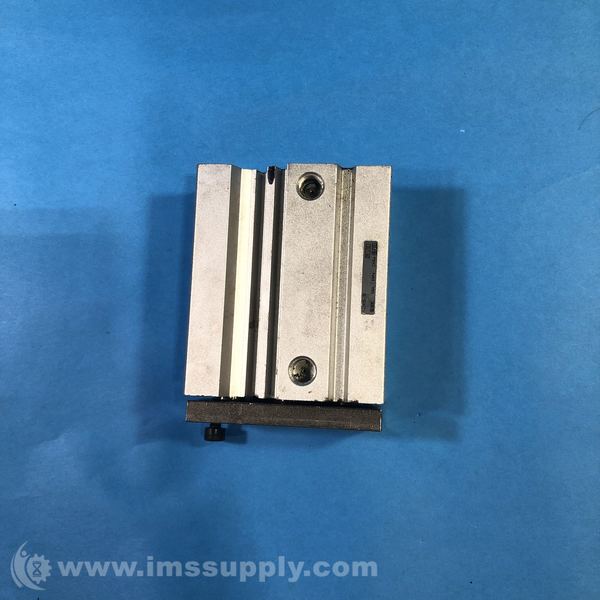

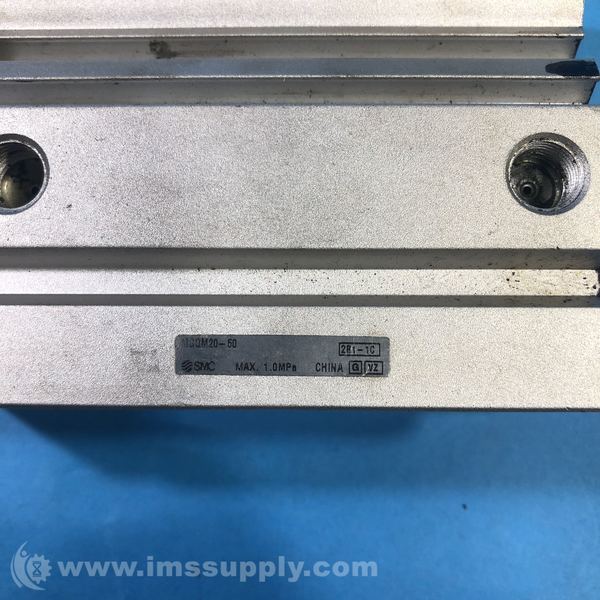

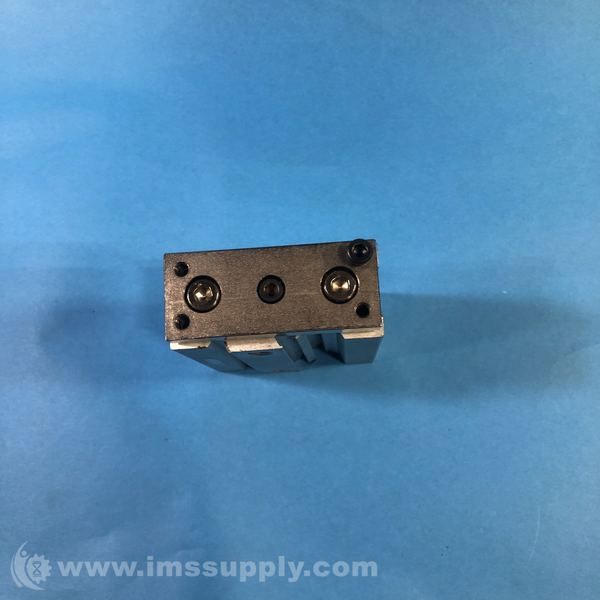

SMC MGQM20-50 COMPACT GUIDE CYLINDER
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: MGQM20-50
IMS Product Code: 1906286
Packaging: Sold Individually
Description:
SMC MGQM20-50 Compact Guide Cylinder
SMC MGQ series guided cylinder with 20mm bore size and 50mm stroke, double acting, maximum operating pressure 1 MPa.
Specifications
- Bore size (mm): 20
- Standard stroke (mm): 50
- Weight: 1.79654 lb
- Guided Cylinder Type: Heavy Duty Compact Guide Cylinder
- Bore Diameter: 20 mm
- Stroke: 50 mm
- Piston Action: Double-Acting
- Rod Type: Single Rod
- Bearings: Slide Bearing
- Cushion Type: Rubber Bumper
- Port Size: 1/8 BSPT
- Proof Pressure: +1.5 MPa
- Operating Pressure Range: +0.1 to +1 MPa
- Push Force At 100 Psi: 220 N
- Pull Force At 100 Psi: 165 N
- Operating Temperature Range: -10 to +60 degrees C
- Overall Length: 97 mm
- Overall Width: 74 mm
- Overall Height: 36 mm
- Port Thread Standard: BSPT
- Mounting Type: Direct
- Maximum Operating Pressure: +1 Mpa
- Minimum Operating Pressure: +0.1 MPa
- Port Gender: Female
- Rod Gender: Female
- Rod Size: 10 mm
- Series: MGQ
- Product Type: Guided Air Cylinders
- Cylinder Bore: 20 mm
- Cylinder Action: Double Acting
- Max Pressure: 1 bar
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
