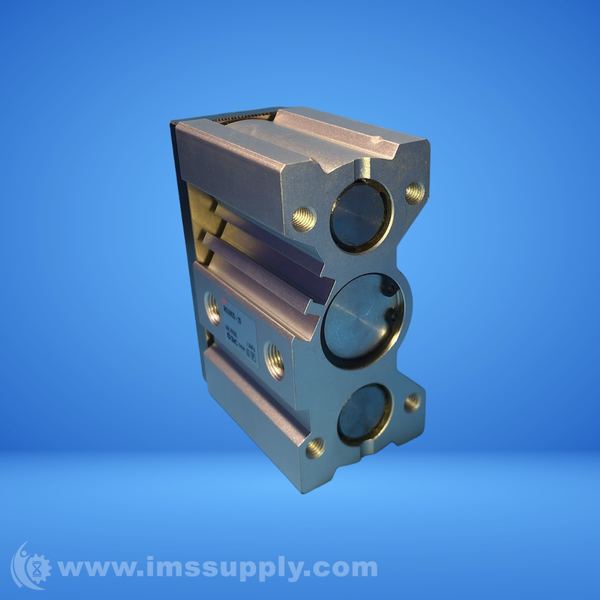

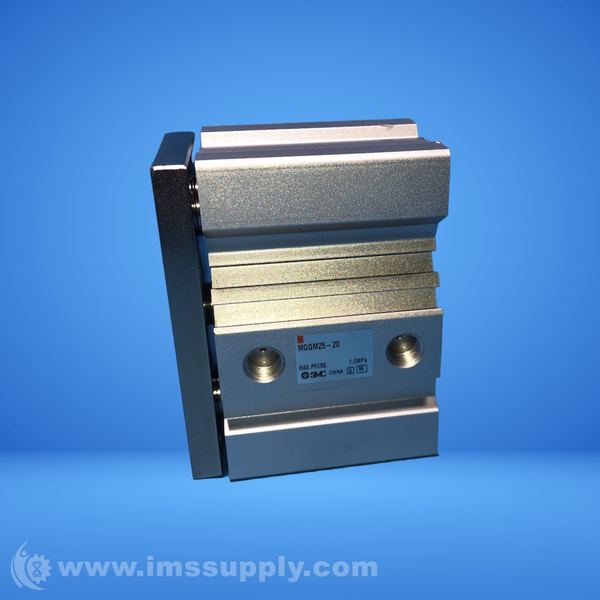

SMC MGQM25-20 GUIDED CYLINDER
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: MGQM25-20
IMS Product Code: 1814806
Packaging: Sold Individually
Description:
SMC MGQM25-20 Guided Cylinder
Double-acting guided air cylinder with 25mm bore and 20mm stroke.
Specifications
- Bore size (mm): 25
- Standard stroke (mm): 20
- Weight: 1.69623 lb
- Guided Cylinder Type: Heavy Duty Compact Guide Cylinder
- Bore Diameter: 25 mm
- Stroke: 20 mm
- Piston Action: Double-Acting
- Rod Type: Single Rod
- Bearings: Slide Bearing
- Cushion Type: Rubber Bumper
- Port Size: 1/8 BSPT
- Proof Pressure: +1.5 MPa
- Operating Pressure Range: +0.1 to +1 MPa
- Push Force At 100 Psi: 344 N
- Pull Force At 100 Psi: 265 N
- Operating Temperature Range: -10 to +60 degrees C
- Overall Length: 67.5 mm
- Overall Width: 88 mm
- Overall Height: 42 mm
- Port Thread Standard: BSPT
- Maximum Operating Pressure: +1 MPa
- Minimum Operating Pressure: +0.1 MPa
- Mounting Type: Direct
- Port Gender: Female
- Rod Gender: Female
- Rod Size: 12 mm
- Series: MGQ
- Product Type: Guided Air Cylinders
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 2 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
