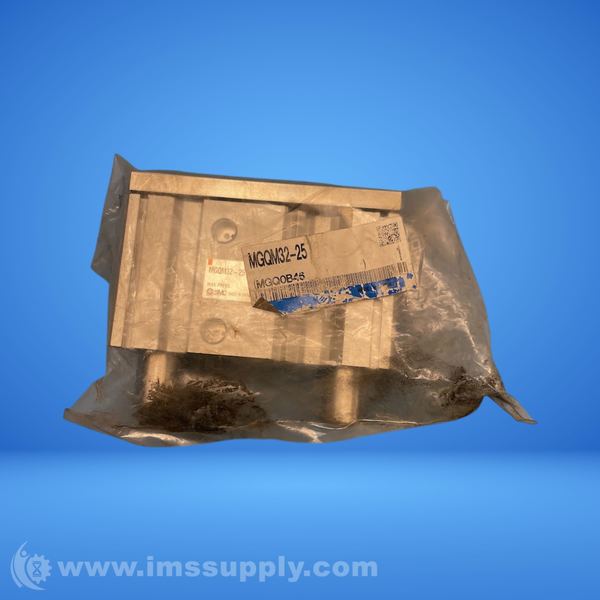

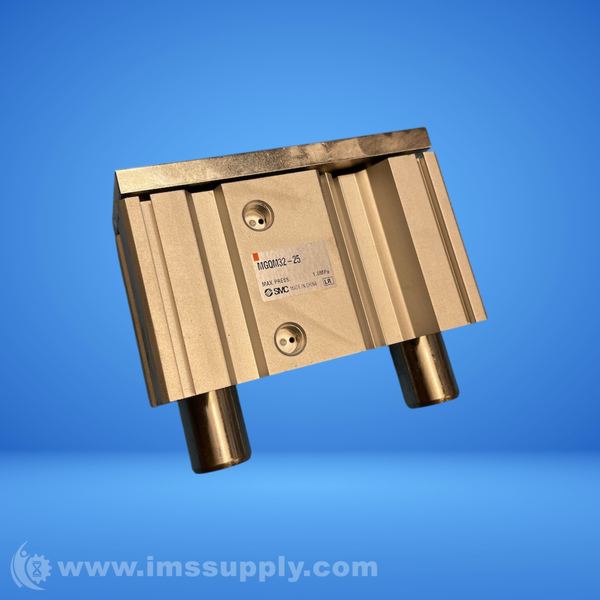

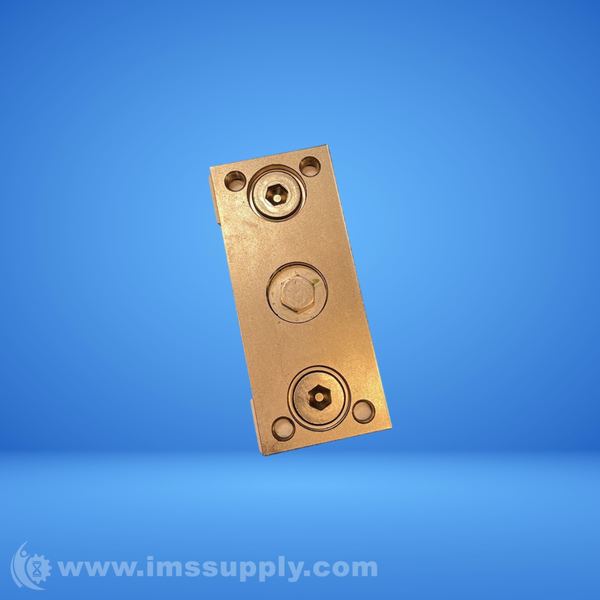

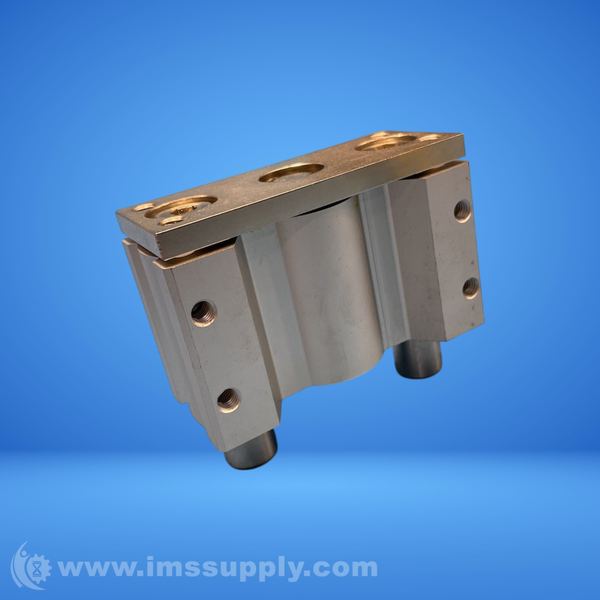

SMC MGQM32-25 GUIDED CYLINDER
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: MGQM32-25
IMS Product Code: 2123210
Packaging: Sold Individually
Description:
SMC MGQM32-25 Guided Cylinder
SMC MGQM32-25 is a compact guide cylinder with 32 mm bore and 25 mm stroke, featuring double-acting operation and slide bearing type.
Specifications
- Bore Size: 32 mm
- Stroke: 25 mm
- Piston Action: Double-Acting
- Rod Type: Single Rod
- Bearings: Slide Bearing
- Cushion Type: Rubber Bumper
- Port Size: 1/8 BSPT
- Operating Pressure Range: +0.1 to +1 MPa
- Push Force At 100 Psi: 563 N
- Pull Force At 100 Psi: 422 N
- Operating Temperature Range: -10 to +60 degrees C
- Series: MGQ
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships today if ordered in the next 2 hours and 35 minutes.
