SMC MGQM32-75 COMPACT GUIDE CYLINDER
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: MGQM32-75
IMS Product Code: 1748516
Packaging: Sold Individually
Description:

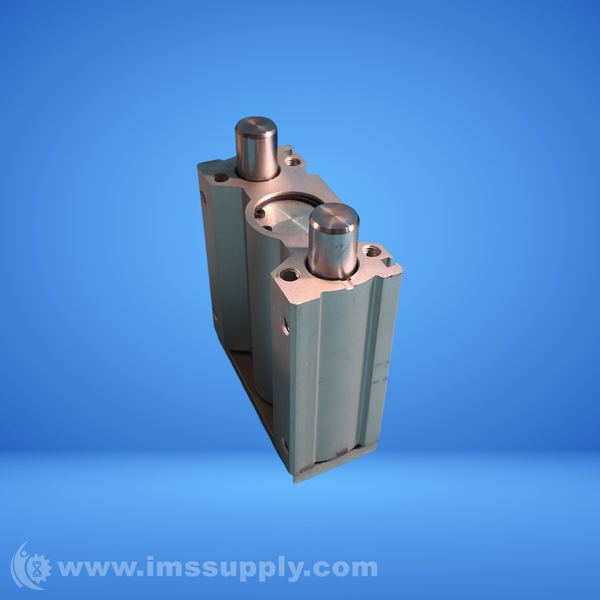

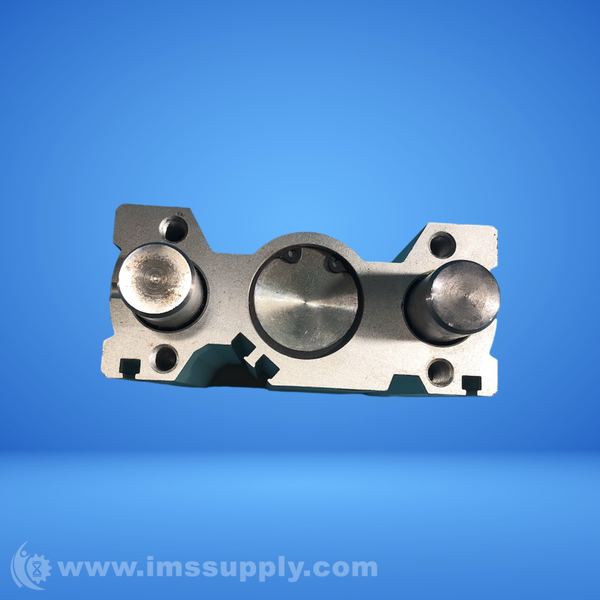

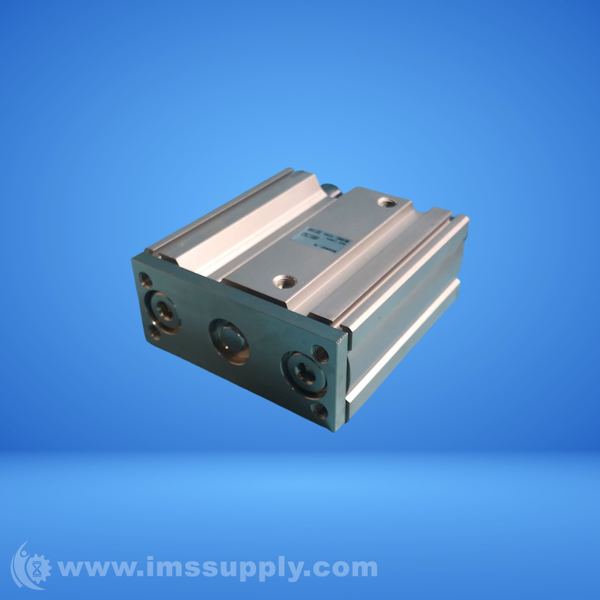

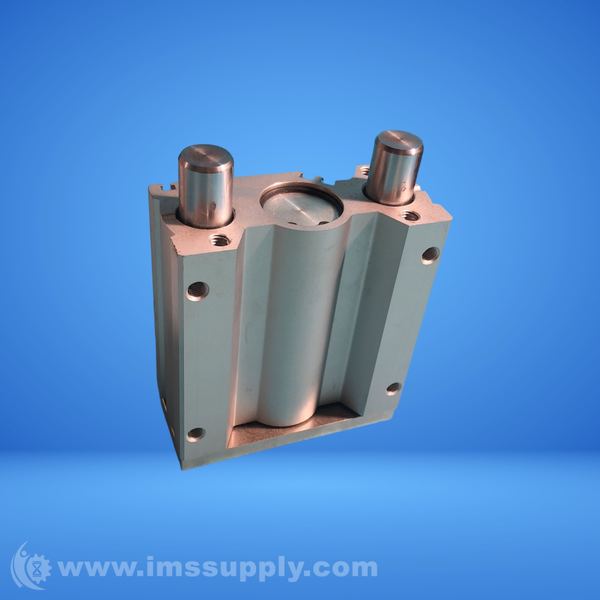

SMC MGQM32-75 Compact Guide Cylinder
SMC MGQM32-75 is a compact guide cylinder with 32mm bore size and 75mm stroke, double-acting with single rod, slide bearing, and rubber bumper cushioning.
Specifications
- Bore size (mm): 32
- Standard stroke (mm): 75
- Weight: 4.90843 lb
- Guided Cylinder Type: Heavy Duty Compact Guide Cylinder
- Bore Diameter: 32 mm
- Stroke: 75 mm
- Piston Action: Double-Acting
- Rod Type: Single Rod
- Rod Size: 16 mm
- Bearings: Slide Bearing
- Cushion Type: Rubber Bumper
- Port Size: 1/8 BSPT
- Port Thread Standard: BSPT
- Port Gender: Female
- Rod Gender: Female
- Proof Pressure: +1.5 MPa
- Operating Pressure Range: +0.1 to +1 MPa
- Maximum Operating Pressure: +1 Mpa2
- Minimum Operating Pressure: +0.1 MPa
- Mounting Type: Direct
- Push Force At 100 Psi: 563 N
- Pull Force At 100 Psi: 422 N
- Operating Temperature Range: -10 to +60 degrees C
- Overall Length: 146.5 mm
- Overall Width: 114 mm
- Overall Height: 51 mm
- Series: MGQ
- Product Type: Guided Air Cylinders
