SMC MHF2-16DR LOW PROFILE AIR GRIPPER
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: MHF2-16DR
IMS Product Code: 1922818
Packaging: Sold Individually
Description:

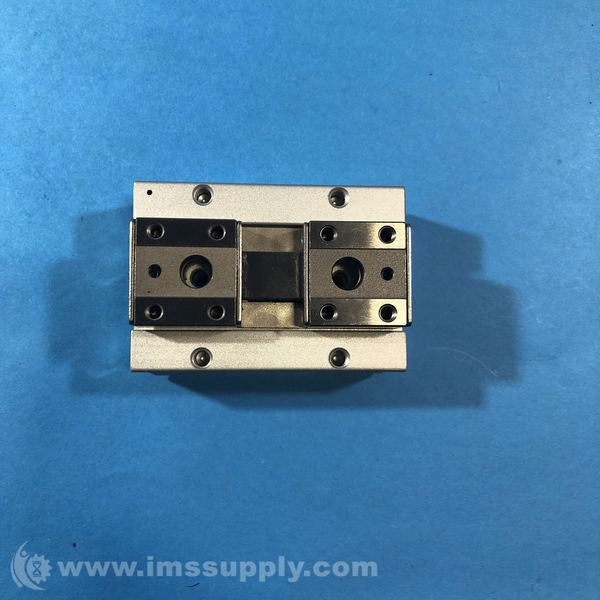

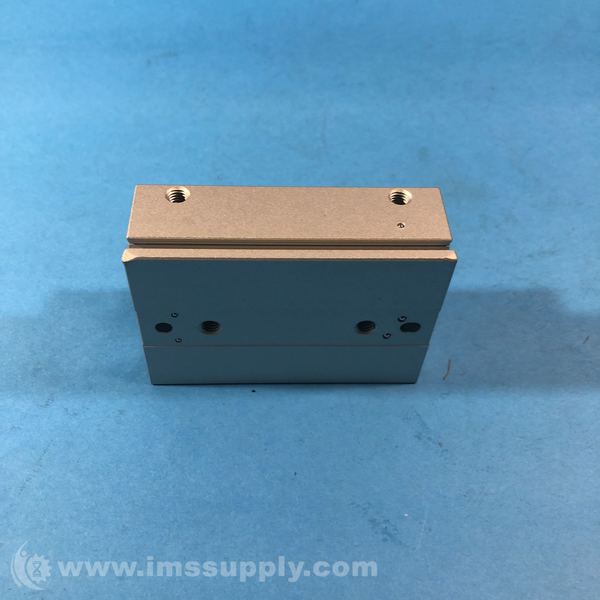

SMC MHF2-16DR Low Profile Air Gripper
Double-acting low-profile air gripper with 16mm bore diameter and 20mm stroke length. Made of aluminum with stainless steel fingers. Hard anodized body finish and nitrile seals. RoHS compliant.
Specifications
- Bore Diameter: 16 mm
- Stroke Length: 20 mm
- Body Material: Aluminum
- Finger Material: Stainless Steel
- Body Material Finish: Hard Anodized
- Seal Material: Nitrile
- Overall Length: 50 mm
- Overall Width: 72 mm
- Overall Height: 33 mm
- Inlet Size: M5 x 0.8
- Maximum Operating Pressure: 101.53 psi
- Minimum Operating Pressure: 14.5 psi
- Maximum Operating Temperature: 140 Degrees F
- Minimum Operating Temperature: 14 Degrees F
- Weight: 350 g
- Repeatability: +/-0.05 mm
- Series: MHF2
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
