SMC MHK2-25D PARALLEL GRIPPER
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: MHK2-25D
IMS Product Code: 2125397
Packaging: Sold Individually
Description:

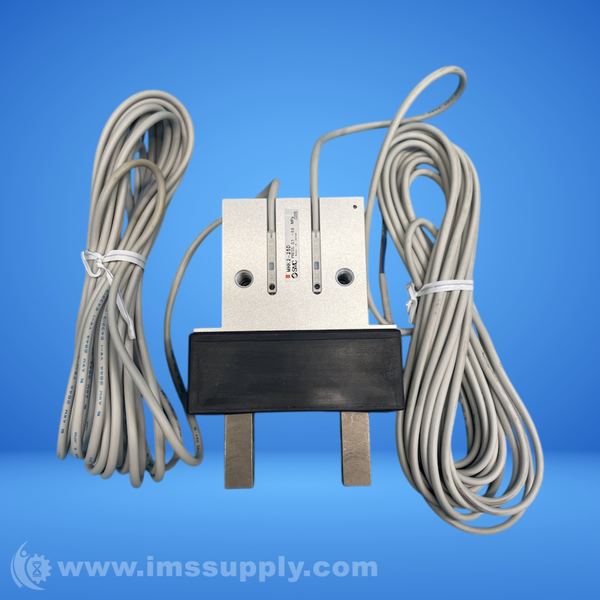

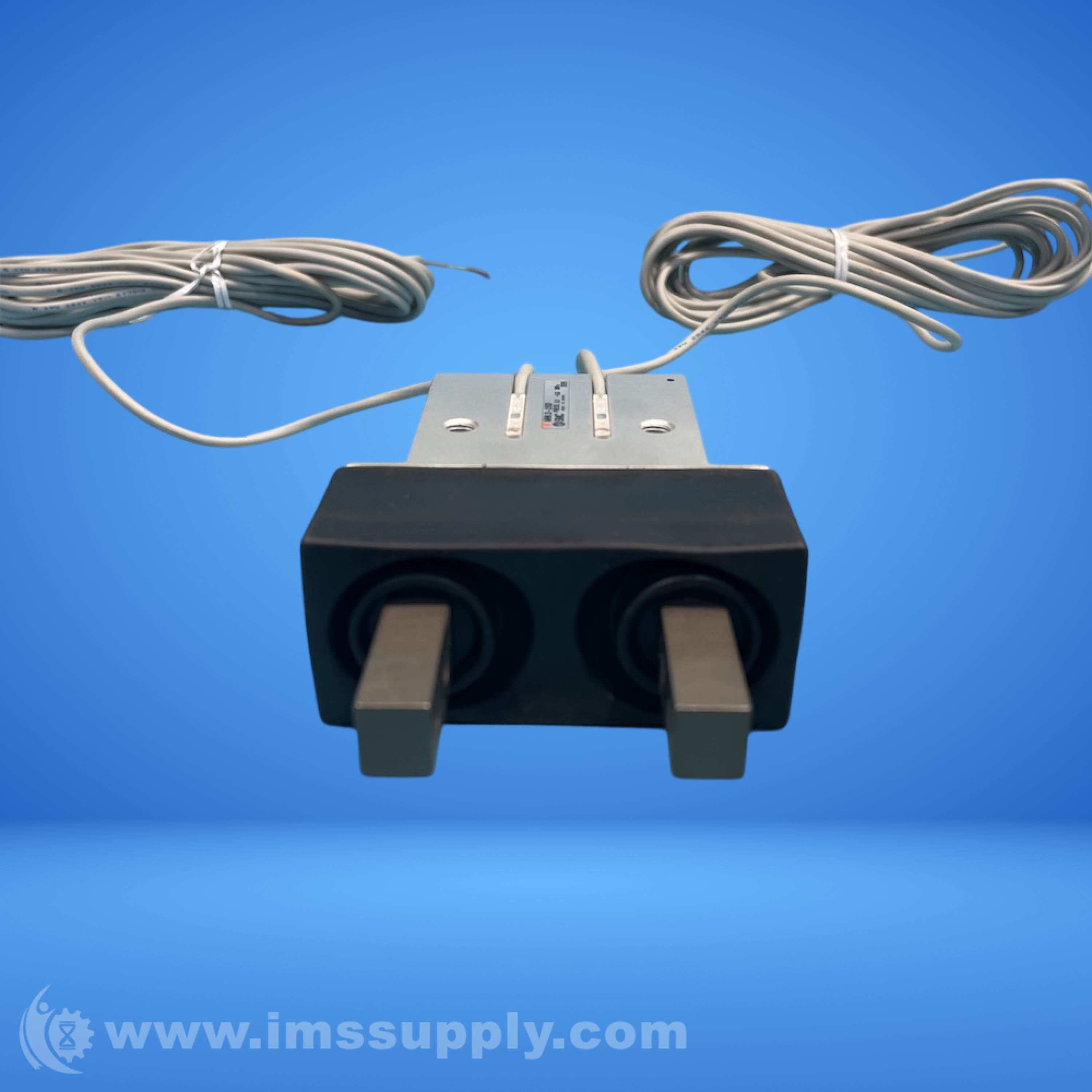

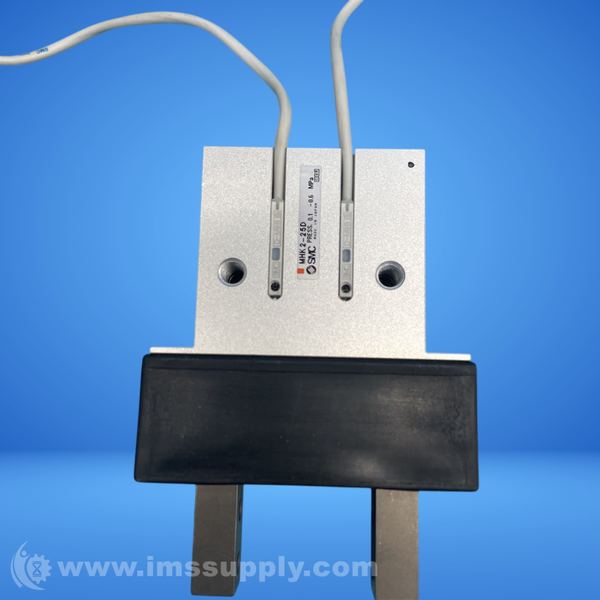

SMC MHK2-25D Parallel Gripper
Double-acting parallel gripper with wedge cam design, 25mm bore diameter, carbon steel fingers.
Specifications
- Series: MHK2/MHKL2
- Action: Double-acting
- Bore Diameter: 25 mm
- Finger Material: Carbon steel
- Finger Stroke: Standard
- Gripper Type: Parallel
- Holding Force Closed: 86 N
- Holding Force Open: 80 N
- Maximum Operating Pressure: 87 psi
- Minimum Operating Pressure: 15 psi
- Open Width: 33 mm
- Closed Width: 19 mm
- Overall Height: 33.6 mm
- Overall Length: 102.7 mm
- Overall Width: 74 mm
- Port Size: M5x0.8
- Operating Temperature Range: 14 F to 140 F
- Weight: 1.05537 lb
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
