SMC MHSL3-50D 3-FINGER GRIPPER
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: MHSL3-50D
IMS Product Code: 2163847
Packaging: Sold Individually
Description:

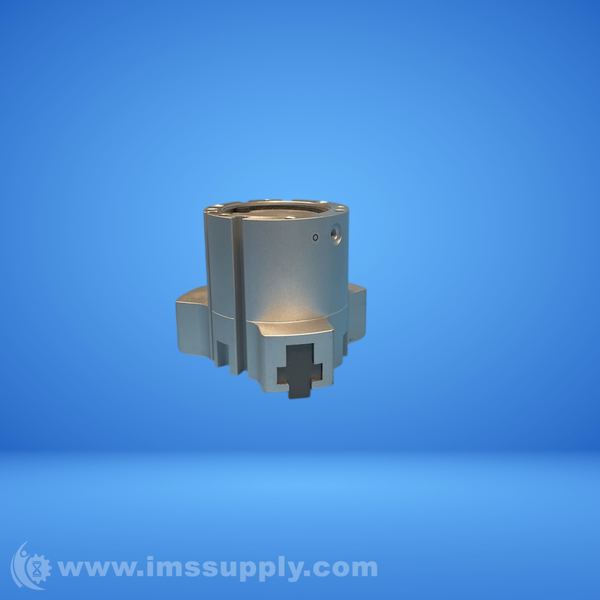

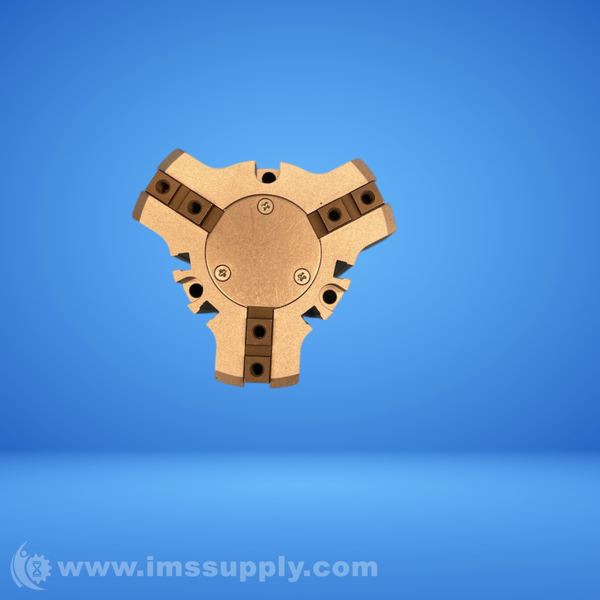

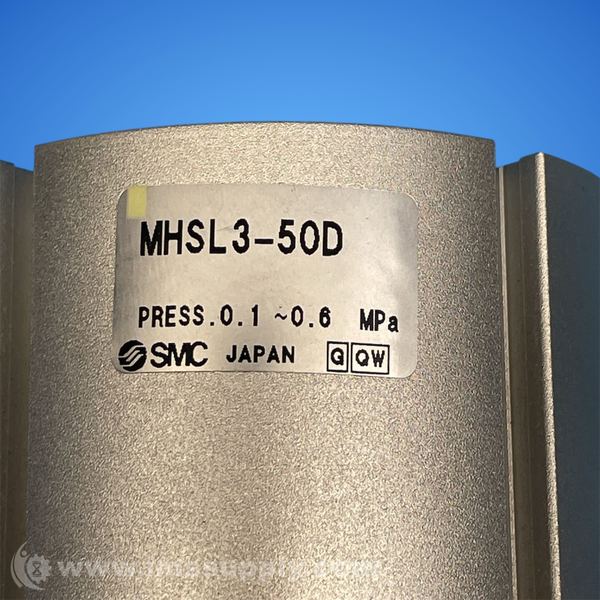

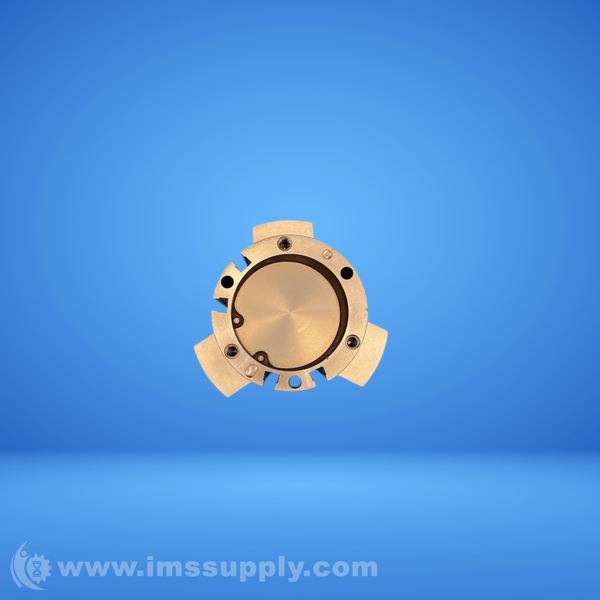

SMC MHSL3-50D 3-Finger Gripper
SMC MHSL3-50D is a 3-finger parallel pneumatic gripper with long stroke and wedge cam design. It is used for gripping spherical, cylindrical, or round workpieces and is ideal for loading/unloading from machine tool chucks. The gripper has a compact size and high holding force.
Specifications
- Series: MHSL3
- Type: 3 Finger, Long Stroke, Parallel
- Bore: 50mm
- Open Width: 60 mm
- Closed Width: 46 mm
- Stroke Length: 28 mm
- Internal Holding Force: 204N @ 0.5MPa
- External Holding Force: 187N @ 0.5MPa
- Body Material: Aluminum
- Finger Material: Carbon Steel
- Maximum Operating Pressure: 87 psi
- Minimum Operating Pressure: 14.5 psi
- Operating Temperature Range: -10 to 60 degrees C
- Port Size: M5 x 0.8
- Port Thread: Rc
- Weight: 2.051 lb
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 2 In Stock
Ships today if ordered in the next 10 hours and 57 minutes.
