SMC MK2B32-20R ROTARY CYLINDER
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: MK2B32-20R
IMS Product Code: 1750590
Packaging: Sold Individually
Description:

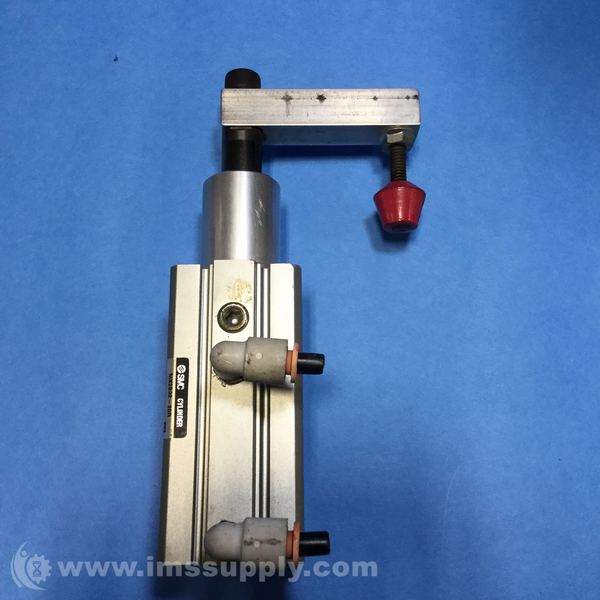

SMC MK2B32-20R Rotary Cylinder
SMC MK2B32-20R is a rotary clamp cylinder with a 32mm bore diameter and 20mm stroke. It operates with compressed air and has a maximum working pressure of 1.0 MPa.
Specifications
- Bore Diameter: 32 mm
- Stroke Length: 20 mm
- Cylinder Type: Single-Rod Cylinder
- Max Pressure: 1.0 MPa
- Dimension: 50 x 46 x 176 mm
- Weight: 647 g
- Air Connection: G1/8
- Magnetic Piston: Yes
- Min Working Pressure: 0.1 MPa
- Operating Medium: Compressed air, lubed or non-lube
- Operating Temperature: -10...60 degrees C
- Operation: Double acting
- Piston Speed: 50-200 mm/s
- Rod Connection: M10
- Rotation Direction: Right
- Shock Absorption: Absorption pads
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
Used (Special):
Many additional parts attached to the main unit.
