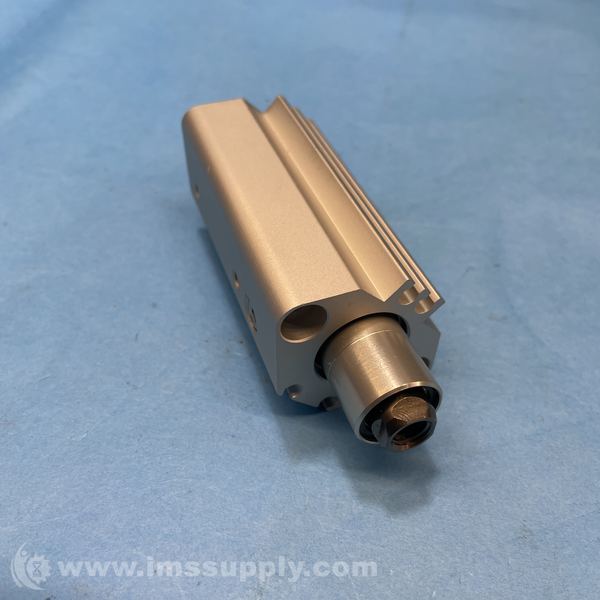

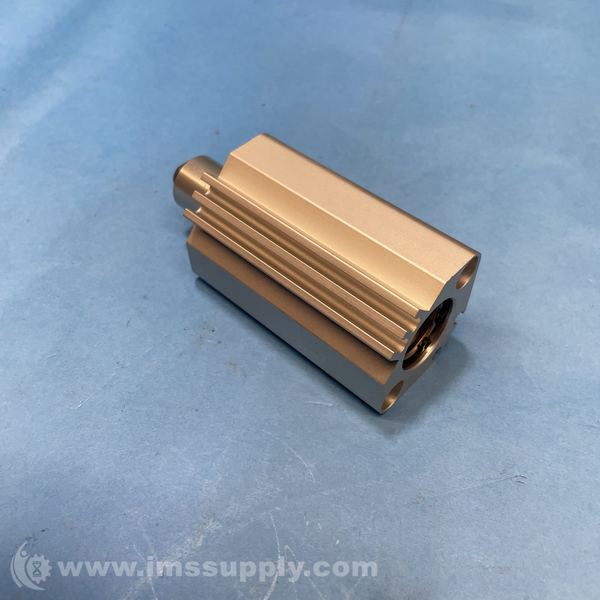

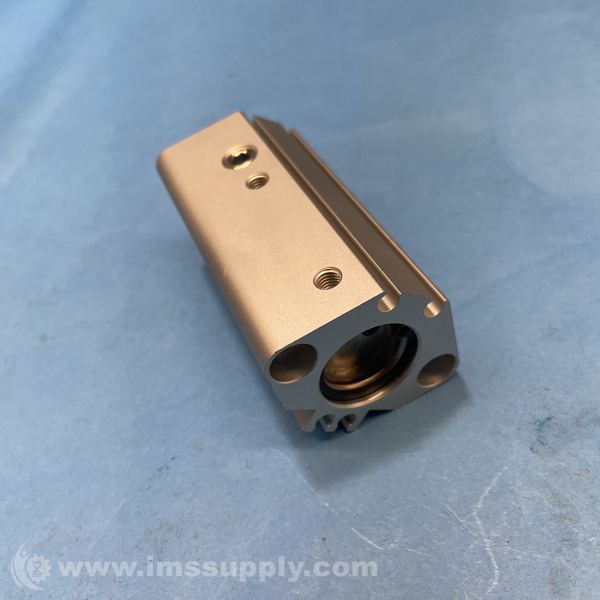

SMC MKB20-10RZ ROTARY CLAMP CYLINDER
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: MKB20-10RZ
IMS Product Code: 2136966
Packaging: Sold Individually
Description:
SMC MKB20-10RZ Rotary Clamp Cylinder
Rotating-Arm Power Clamp Cylinders with 20 mm bore size and 10 mm stroke.
Specifications
- Bore Diameter: 20 mm
- Stroke: 10 mm
- Clamp Force At 0.5Mpa: 100 N
- Rotary Direction: Clockwise
- Arm Opening Angles: 90 degrees
- Cushion Type: Rubber Bumper
- Operating Pressure Range: +0.1 to +1 MPa
- Proof Pressure: +1.5 MPa
- Operating Temperature Range: -10 to +60 degrees C
- Overall Body Length: 112 mm
- Overall Body Width: 36 mm
- Overall Body Height: 36 mm
- Series: MK
- Mounting Type: Basic
- Port Thread Standard: ISO
- Maximum Operating Pressure: +1 MPa
- Minimum Operating Pressure: +0.1 MPa
- Port Gender: Female
- Body Options: Standard
- Piston Action: Double-Acting
- Product Type: Rotating-Arm Power Clamp Cylinders
- Weight: 0.52037 lb

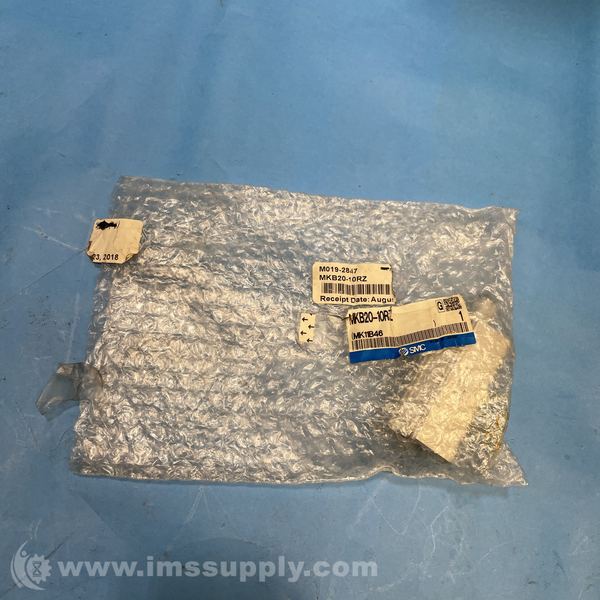

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 5 hours and 1 minutes.
