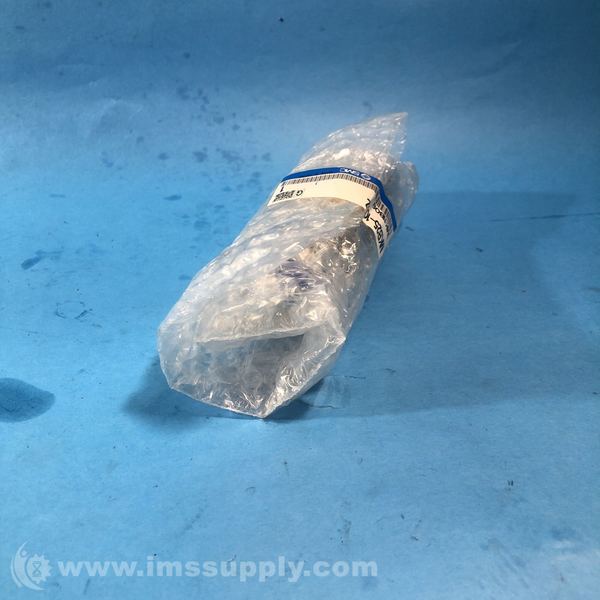

SMC MKB25-10LZ ROTARY CLAMP CYLINDER
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: MKB25-10LZ
IMS Product Code: 1999631
Packaging: Sold Individually
Description:
SMC MKB25-10LZ Rotary Clamp Cylinder
Double-acting rotary clamp cylinder with 25mm bore size and 10mm stroke
Specifications
- Series: MK
- Bore Diameter: 25 mm
- Stroke: 10 mm
- Cylinder Action: Double-Acting
- Arm Opening Angles: 90 degrees
- Rotary Direction: Counter-Clockwise
- Clamp Force At 0.5Mpa: 185 N
- Operating Pressure Range: +0.1 to +1 MPa
- Maximum Operating Pressure: +1 Mpa
- Minimum Operating Pressure: +0.1 MPa
- Proof Pressure: +1.5 MPa
- Operating Temperature Range: -10 to +60 degrees C
- Port Size: M5x0.8
- Port Thread Standard: ISO
- Port Gender: Female
- Cushion Type: Rubber Bumper
- Mounting Type: Basic
- Body Options: Standard
- Number Of Auto Switches: 2
- Overall Body Length: 133 mm
- Overall Body Width: 40 mm
- Overall Body Height: 40 mm
- Weight: 0.80739 lb
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 1 In Stock
Ships today if ordered in the next 4 hours and 50 minutes.
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships today if ordered in the next 4 hours and 50 minutes.
New - Missing Box (Special):
Part comes with hardware.
Availability: 1 In Stock
Ships today if ordered in the next 5 hours and 50 minutes.
