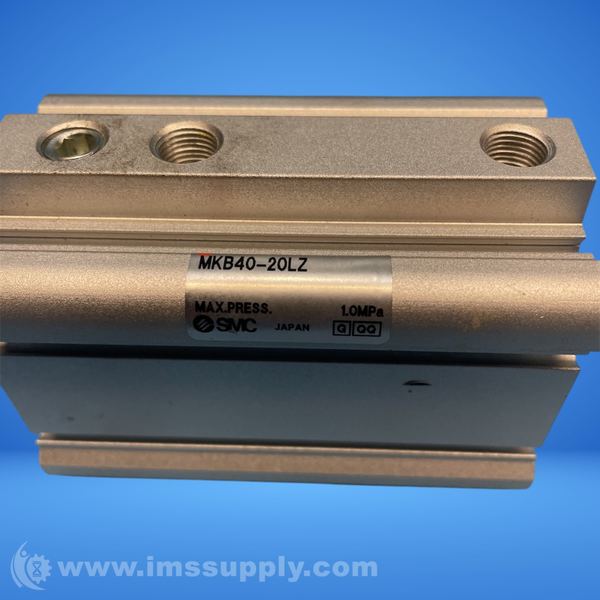

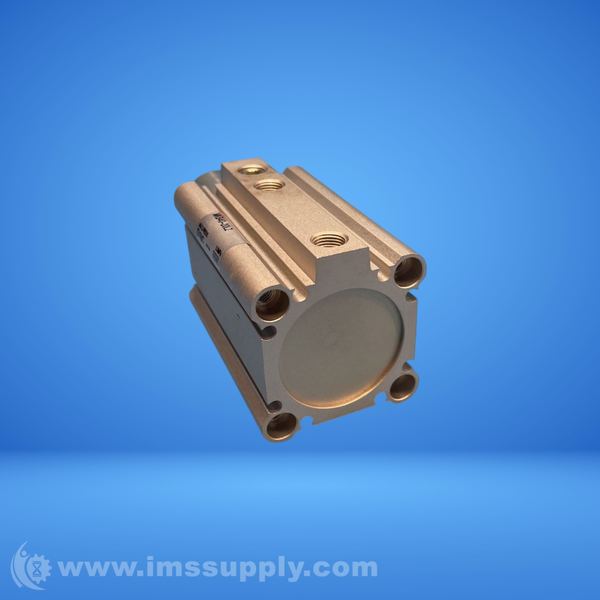

SMC MKB40-20LZ ROTARY CLAMP CYLINDER
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: MKB40-20LZ
IMS Product Code: 2124060
Packaging: Sold Individually
Description:
SMC MKB40-20LZ Rotary Clamp Cylinder
Rotating-Arm Power Clamp Cylinders with 40 mm Bore Size and 20 mm Stroke
Specifications
- Series: MK
- Bore Diameter: 40 mm
- Stroke: 20 mm
- Piston Action: Double-Acting
- Clamp Force At 0.5Mpa: 525 N
- Rotary Direction: Counter-Clockwise
- Arm Opening Angles: 90 degrees
- Port Size: 1/8 BSPT
- Port Thread Standard: BSPT
- Port Gender: Female
- Cushion Type: Rubber Bumper
- Operating Pressure Range: +0.1 to +1 MPa
- Maximum Operating Pressure: +1 Mpa
- Minimum Operating Pressure: +0.1 MPa
- Proof Pressure: +1.5 MPa
- Operating Temperature Range: -10 to +60 degrees C
- Overall Body Length: 169.5 mm
- Overall Body Width: 57 mm
- Overall Body Height: 57 mm
- Mounting Type: Basic
- Weight: 1.35240 lb

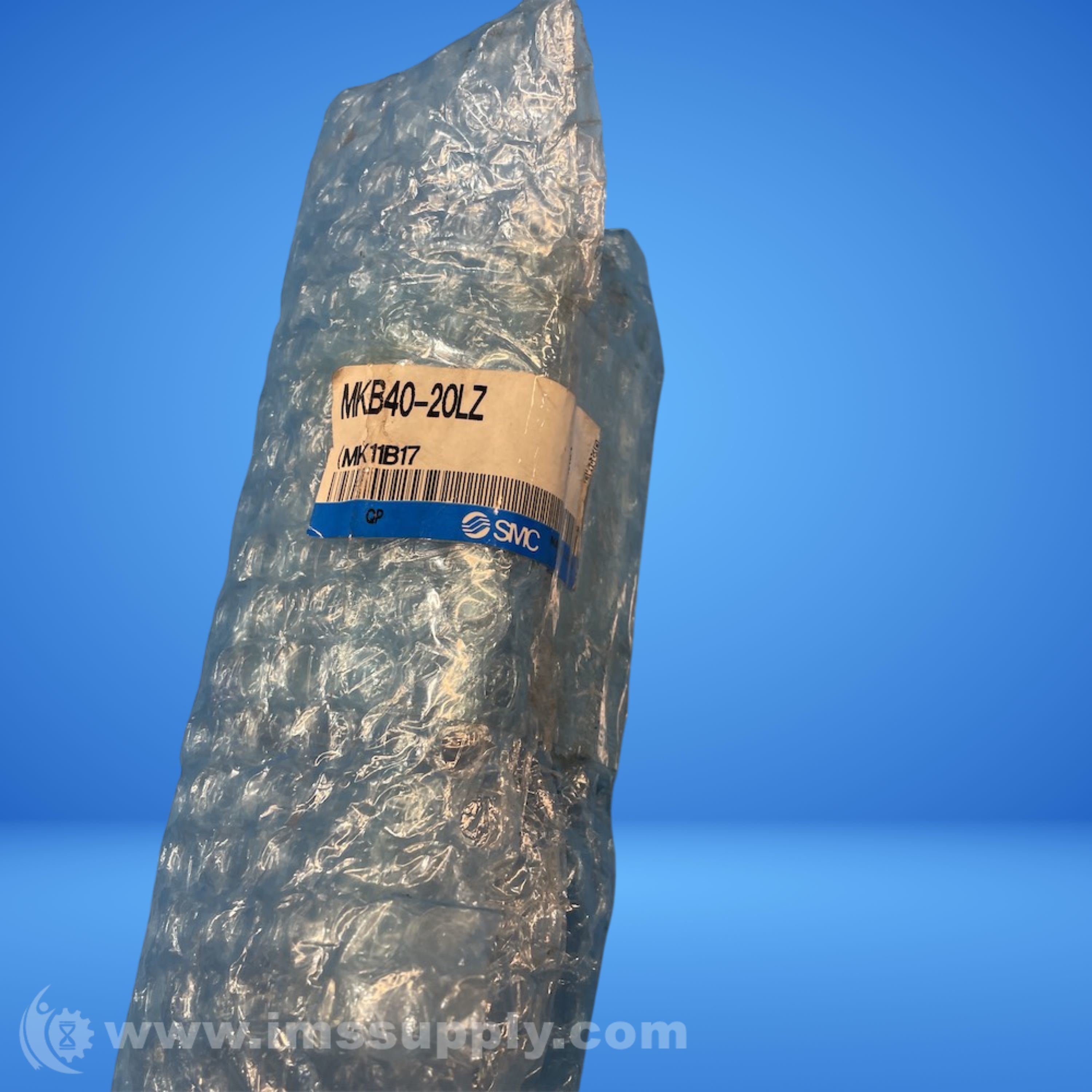

New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships today if ordered in the next 14 hours and 30 minutes.
