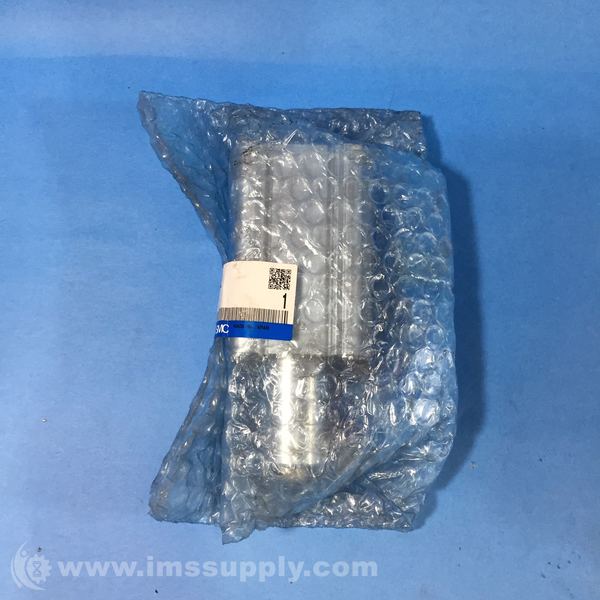

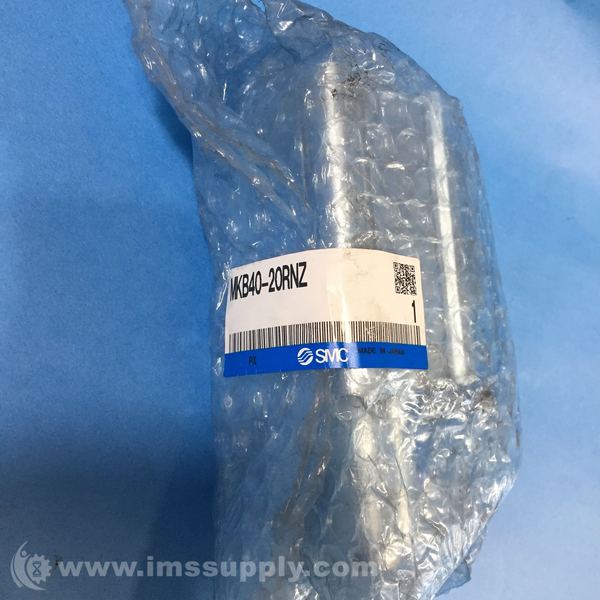

SMC MKB40-20RNZ ROTARY CLAMP CYLINDER
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: MKB40-20RNZ
IMS Product Code: 1846195
Packaging: Sold Individually
Description:
SMC MKB40-20RNZ Rotary Clamp Cylinder
Double-acting rotary clamp cylinder with 40mm bore size and 20mm stroke. Clockwise rotation, arm option, and auto switch mounting grooves.
Specifications
- Bore Diameter: 40 mm
- Stroke: 20 mm
- Clamp Force At 0.5Mpa: 525 N
- Rotary Direction: Clockwise
- Body Options: Arm
- Cushion Type: Rubber Bumper
- Operating Pressure Range: +0.1 to +1 MPa
- Proof Pressure: +1.5 MPa
- Operating Temperature Range: -10 to +60 degrees C
- Overall Body Length: 183 mm
- Overall Body Width: 57 mm
- Overall Body Height: 57 mm
- Port Thread Standard: BSPT
- Mounting Type: Basic
- Maximum Operating Pressure: +1 Mpa
- Minimum Operating Pressure: +0.1 MPa
- Port Gender: Female
- Series: MK
- Product Type: Rotating-Arm Power Clamp Cylinders
- Weight: 796g
