SMC MKB50TN-50LZ ROTARY CLAMP CYLINDER
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: MKB50TN-50LZ
IMS Product Code: 2150541
Packaging: Sold Individually
Description:

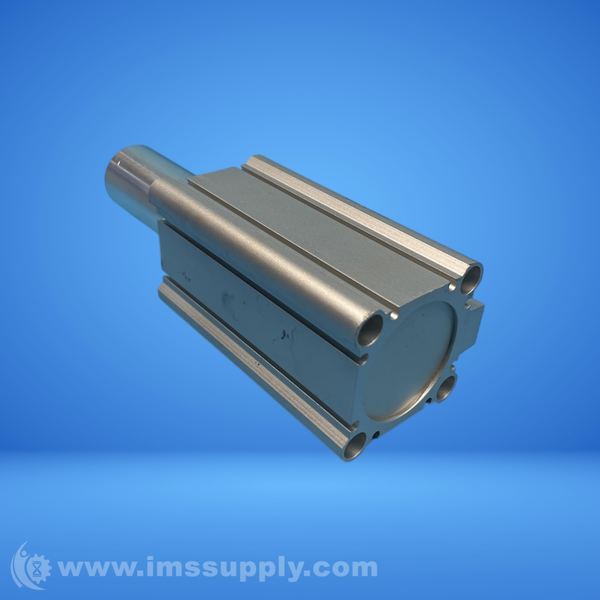

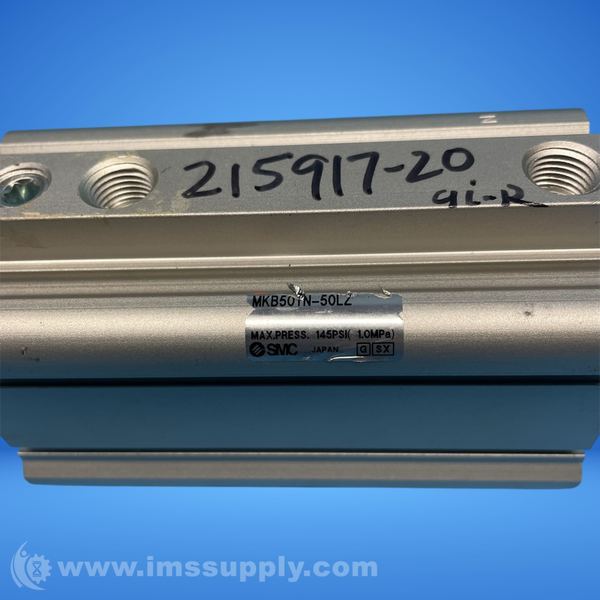

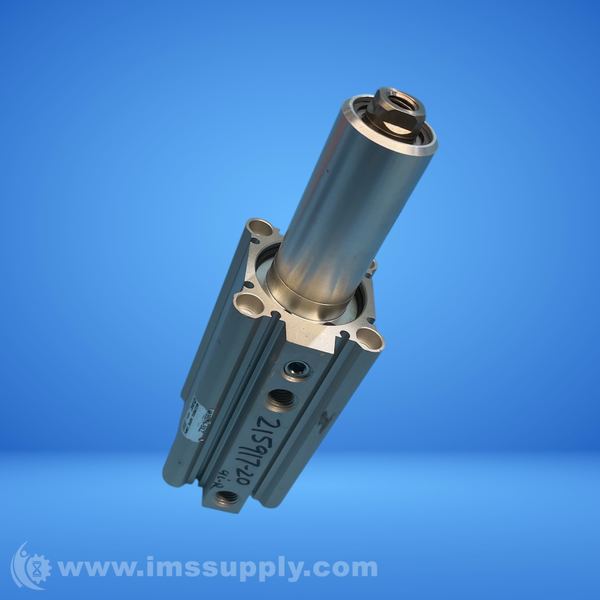

SMC MKB50TN-50LZ Rotary Clamp Cylinder
Double-acting rotary clamp cylinder with 50 mm bore size and 50 mm stroke. Features auto switch and NPT port thread standard.
Specifications
- Bore Diameter: 50 mm
- Stroke: 50 mm
- Port Size: 1/4 NPT
- Clamp Force At 0.5Mpa: 825 N
- Rotary Direction: Counter-Clockwise
- Arm Opening Angles: 90 degrees
- Operating Pressure Range: +0.1 to +1 MPa
- Proof Pressure: +1.5 MPa
- Operating Temperature Range: -10 to +60 degrees C
- Overall Body Length: 281 mm
- Overall Body Width: 71 mm
- Overall Body Height: 71 mm
- Cushion Type: Rubber Bumper
- Piston Action: Double-Acting
- Number Of Auto Switches: 2
- Body Options: Standard
- Options Included: Auto Switch
- Port Thread Standard: NPT
- Maximum Operating Pressure: +1 Mpa
- Minimum Operating Pressure: +0.1 MPa
- Mounting Type: Basic
- Port Gender: Female
- Series: MK
- Product Type: Rotating-Arm Power Clamp Cylinders
- Weight: 2.73593 lb
- Country of Origin: JP
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
