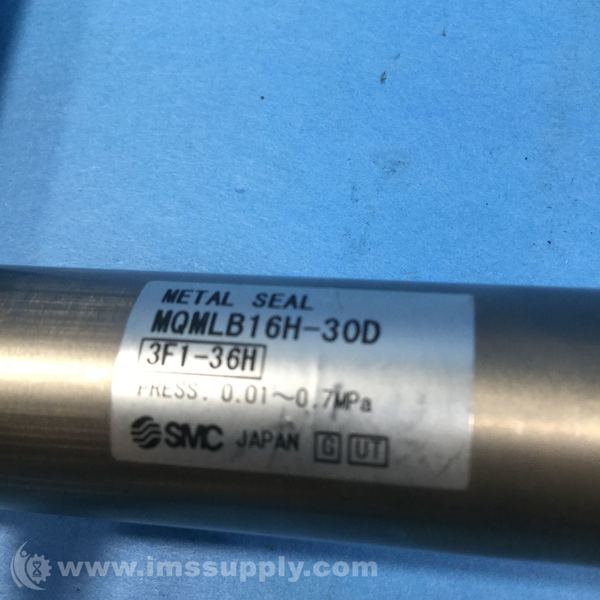

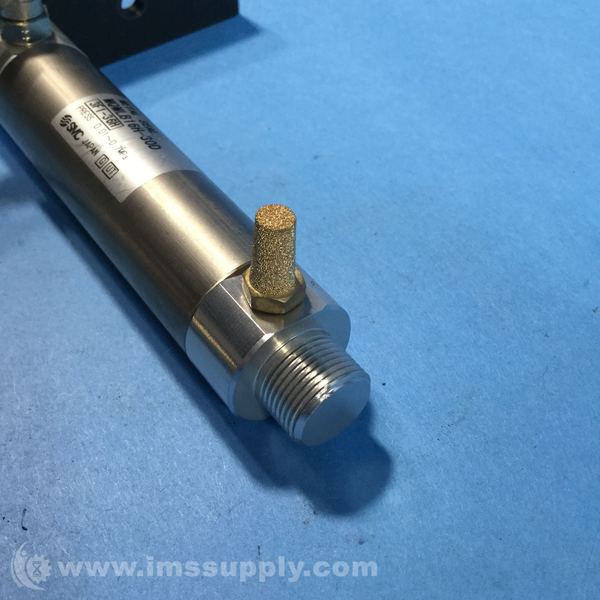

SMC MQMLB16H-30D LOW FRICTION CYLINDER
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: MQMLB16H-30D
IMS Product Code: 1825336
Packaging: Sold Individually
Description:
SMC MQMLB16H-30D Low Friction Cylinder
Double-acting, compact air cylinder with low friction and metal seal construction. Suitable for low to high speeds and lateral load resisting applications.
Specifications
- Bore Diameter: 16 mm
- Stroke: 30 mm
- Rod Type: Single Rod
- Port Size: M5x0.8
- Cushion Type: Rubber Bumper
- Operating Temperature Range: -10 to +80 degrees C
- Maximum Operating Pressure: 0.7 MPa
- Minimum Operating Pressure: 0.01 MPa
- Proof Pressure: 1.05 MPa
- Push Force At 100 Psi: 140.8 N
- Pull Force At 100 Psi: 127 N
- Overall Length: 144 mm
- Overall Width: 22 mm
- Overall Height: 19.5 mm
- Series: MQM
- Mounting Type: Basic
Used (Special):

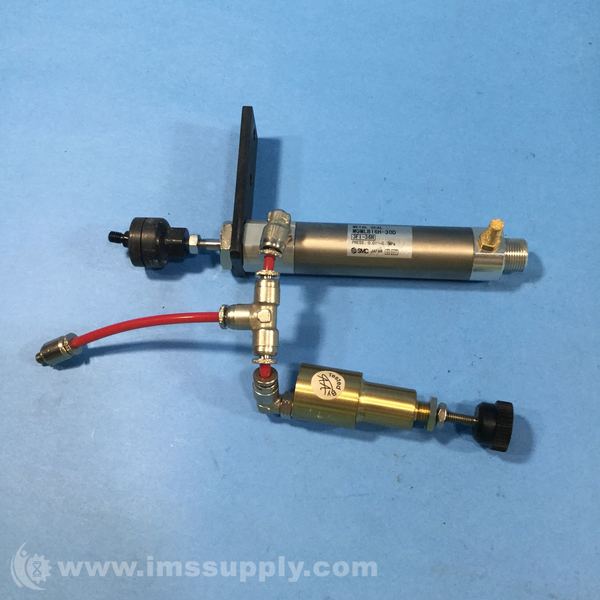

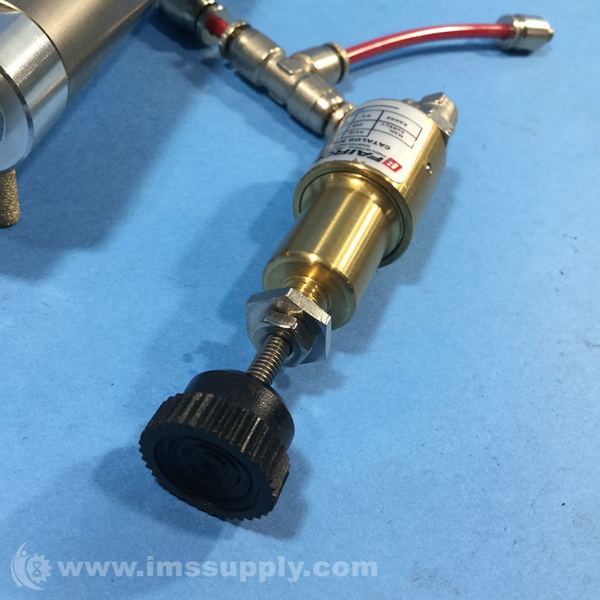

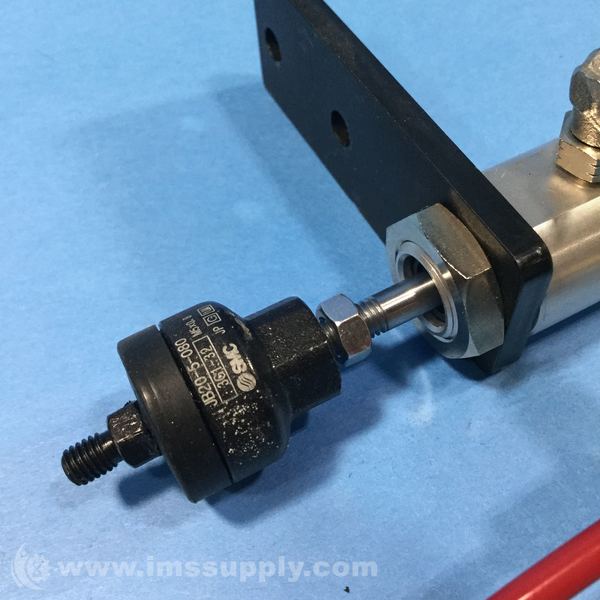

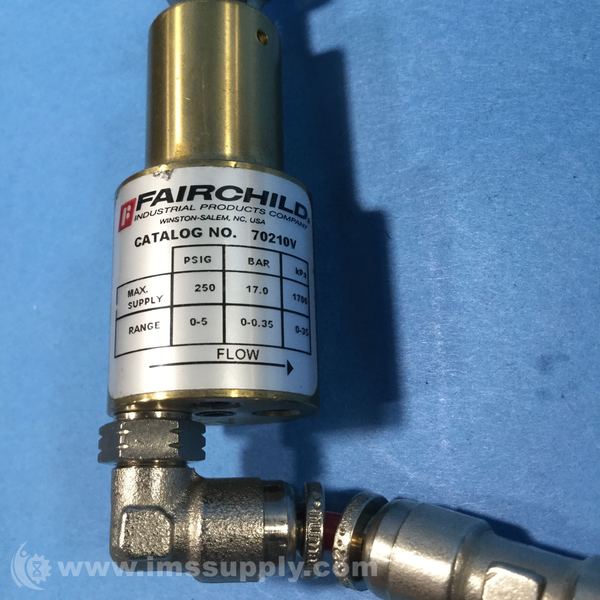

Has Fairchild 70210V and SMC JB20-5-080 attached.
Availability: 1 In Stock
Ships today if ordered in the next 5 hours and 58 minutes.
