SMC MXS12-20 GUIDED CYLINDER
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: MXS12-20
IMS Product Code: 1737865
Packaging: Sold Individually
Description:

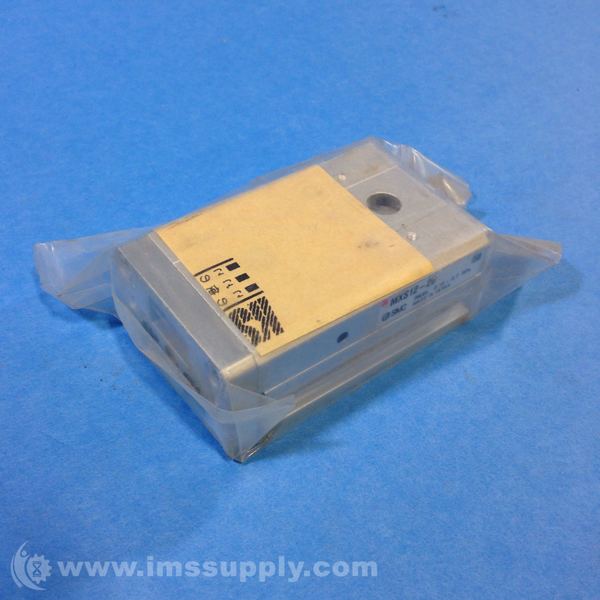

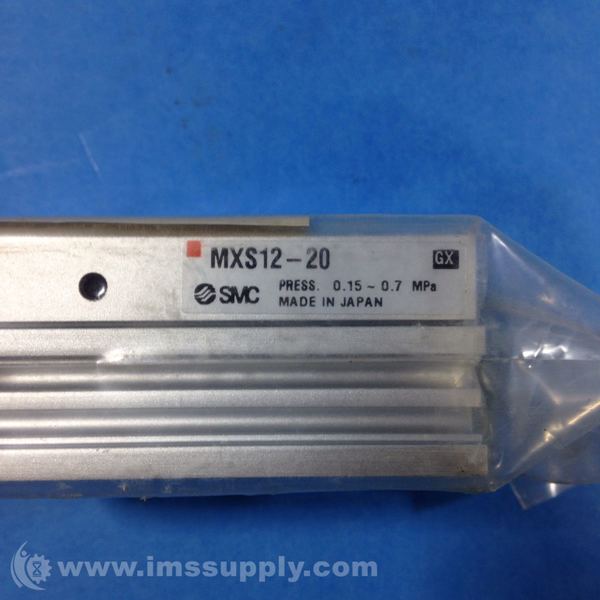

SMC MXS12-20 Guided Cylinder
The MXS is a precision slide table integrated with guides and rails combined with cross roller bearings to isolate the load bearing from the movement of the dual rods and piston seals. Rubber bumpers or shock absorbers stop the slide table and can be paired with a stroke adjuster for precise positioning; available for extend, retract, or both ends in ranges of 0-5 mm, 0-15 mm and 0-25 mm. The end lock option prevents the slide table from dropping in vertical applications, enhancing safety in the event of air pressure loss.
Specifications
- Bore Diameter: 12 mm
- Stroke: 20 mm
- Piston Action: Double-Acting
- Port Size: M5x0.8
- Operating Pressure Range: +0.15 to +0.7 MPa
- Operating Temperature Range: -10 to +60 degrees C
- Overall Length: 80 mm
- Overall Width: 50 mm
- Overall Height: 32 mm
- Port Thread Standard: Rc
- Series: MXS
- Product Type: Guided Air Cylinders
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
Used (Special):
Attached: SMC MXS12L-20, mounted on metal plate. Unknown attachment, PN half-scraped
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
Used (Special):
Attached: SMC MXS12L-20. Signalysis part attached only partial PN. Mounted on metal plate
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
