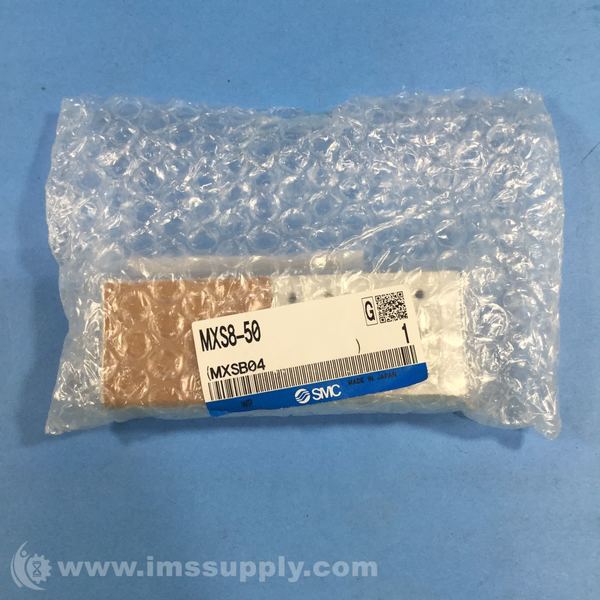

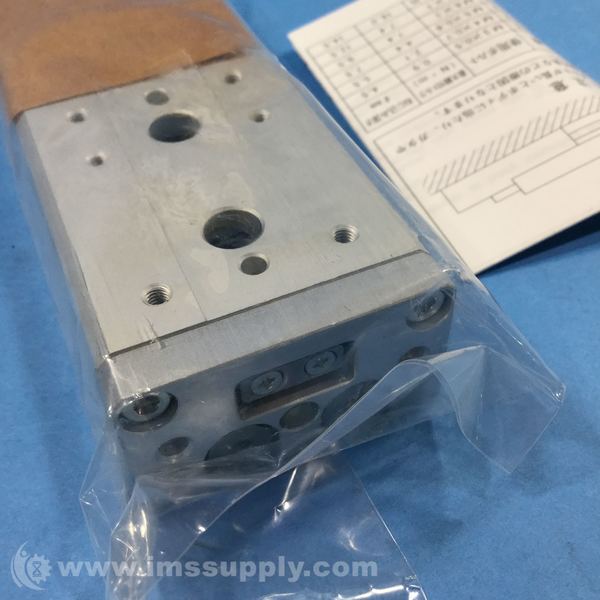

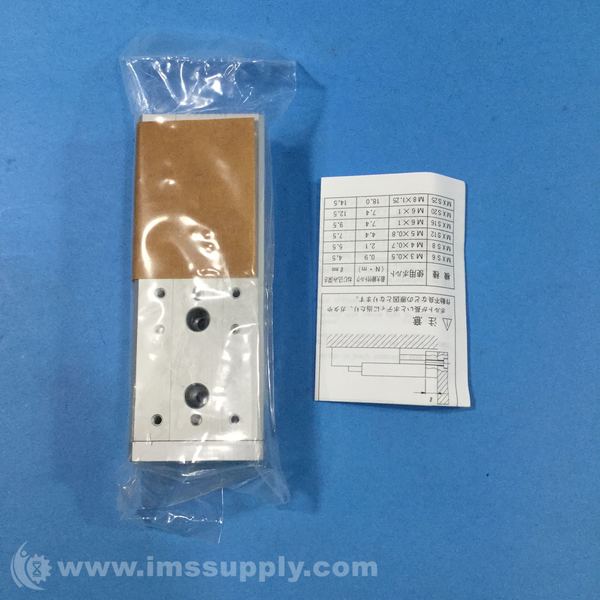

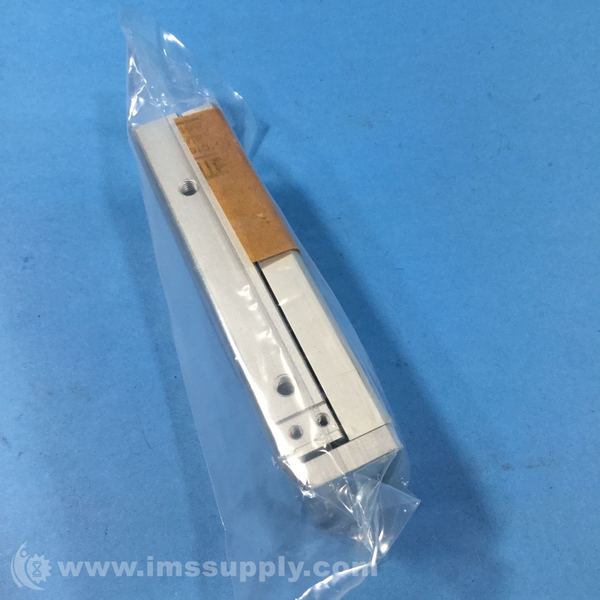

SMC MXS8-50 GUIDED AIR CYLINDER
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: MXS8-50
IMS Product Code: 1778485
Packaging: Sold Individually
Description:
SMC MXS8-50 Guided Air Cylinder
Pneumatic slide table with dual rod actuator, 8 mm bore diameter, 50 mm stroke length. Double-acting piston action with M5x0.8 port size. Operating pressure range +0.15 to +0.7 MPa, temperature range -10 to +60 degrees C.
Specifications
- Series: MXS
- Bore Diameter: 8 mm
- Stroke: 50 mm
- Piston Action: Double-Acting
- Port Size: M5x0.8
- Operating Pressure Range: +0.15 to +0.7 MPa
- Proof Pressure: +1.05 MPa
- Operating Temperature Range: -10 to +60 degrees C
- Overall Length: 108 mm
- Overall Width: 40 mm
- Overall Height: 24 mm
- Port Thread Standard: Rc
- Maximum Applied Force: 71 N
- Seal Material: Nitrile
