SMC MY1B50-800 RODLESS CYLINDER
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: MY1B50-800
IMS Product Code: 2123537
Packaging: Sold Individually
Description:

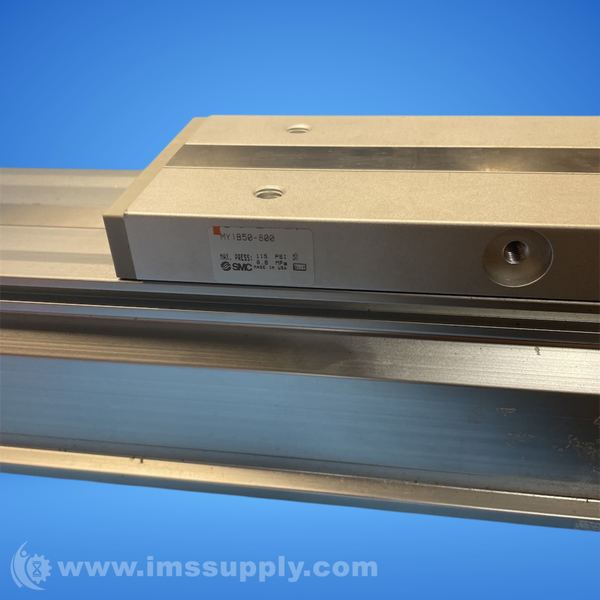

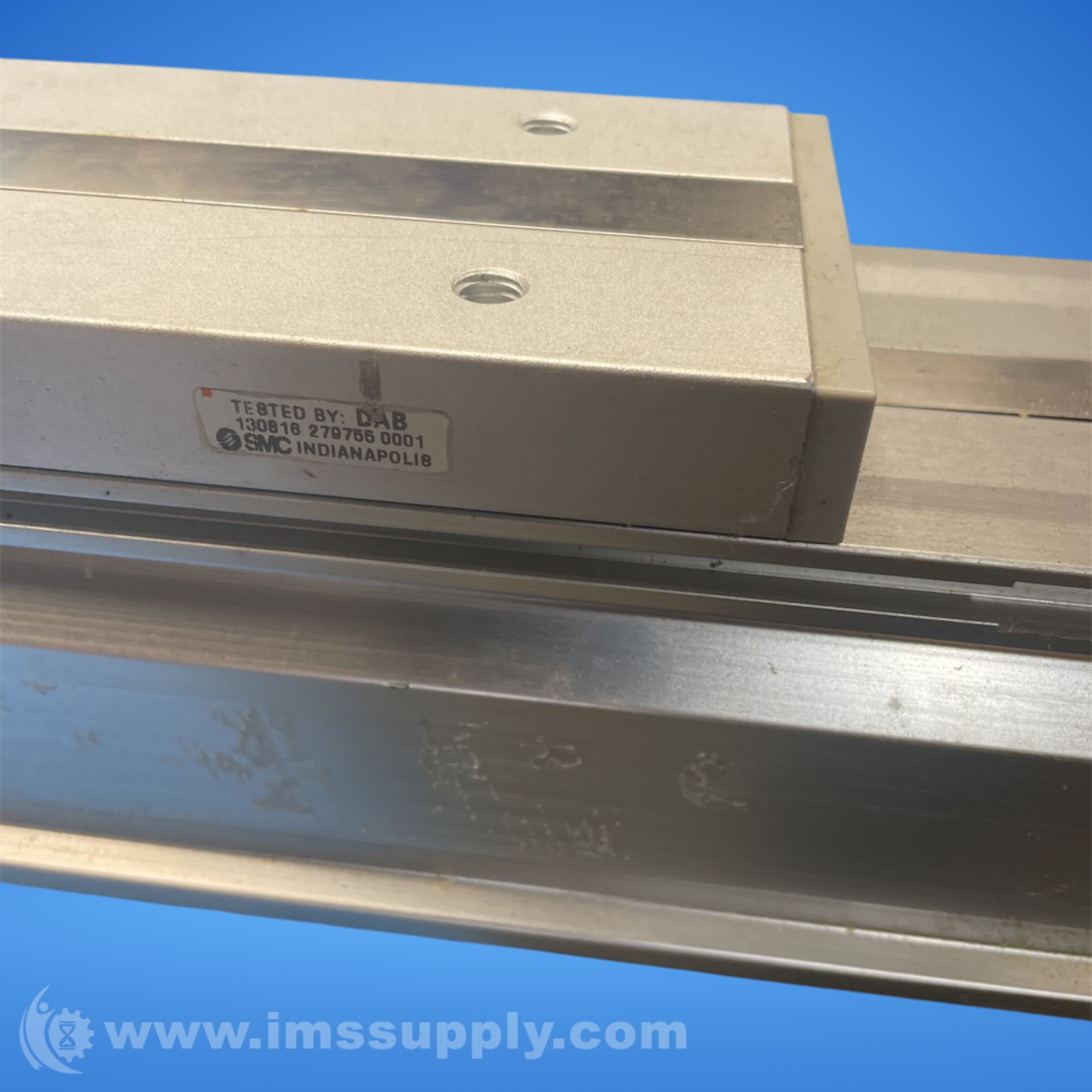

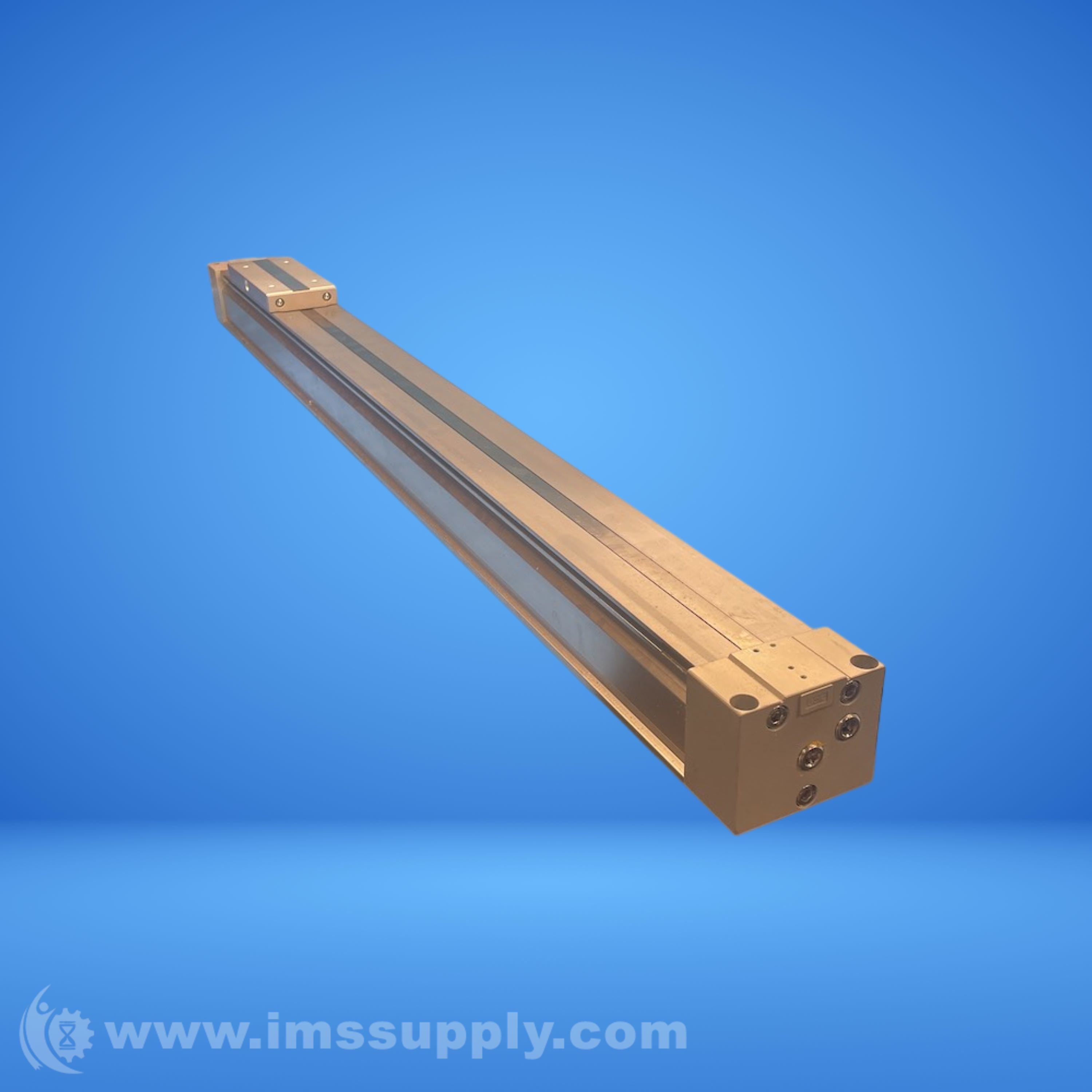

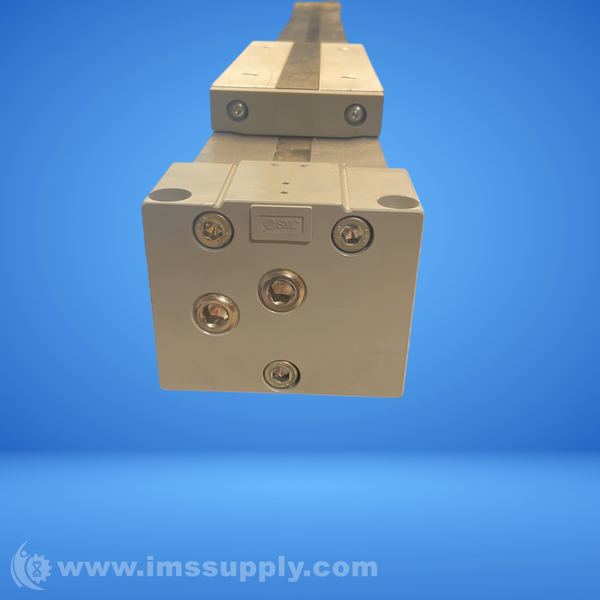

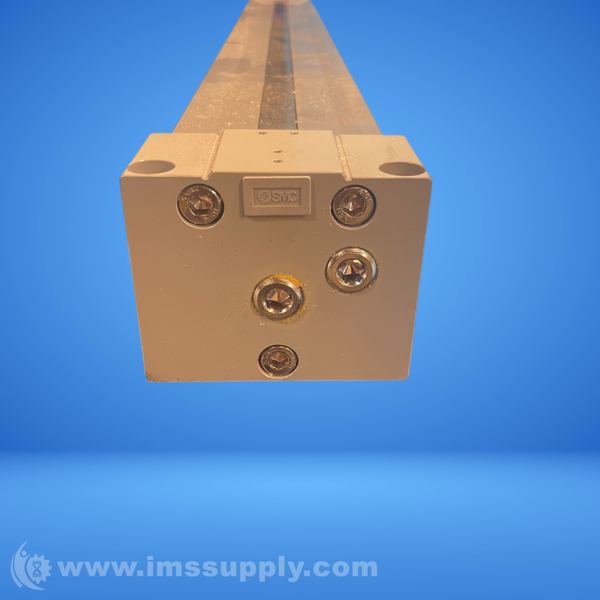

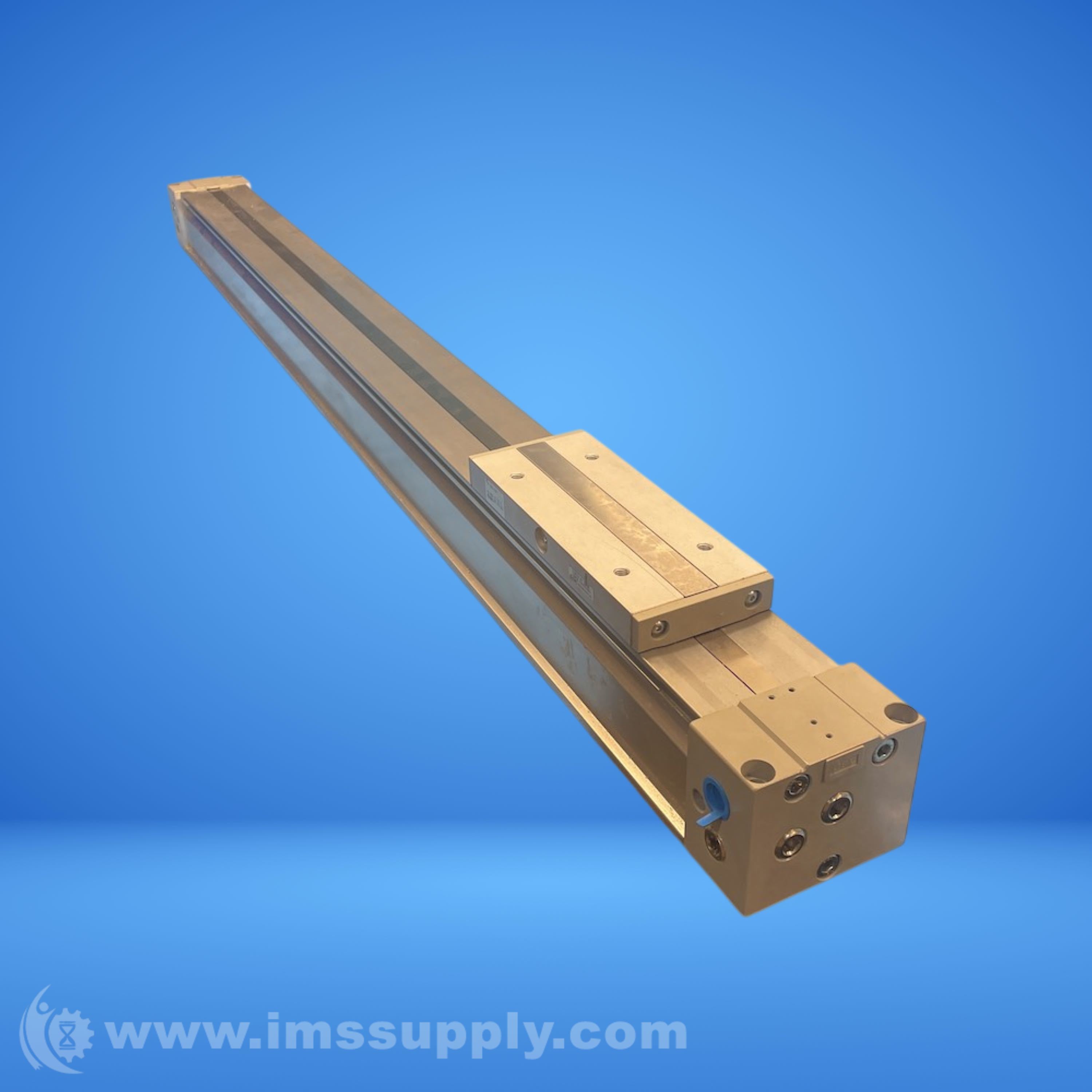

SMC MY1B50-800 Rodless Cylinder
Mechanically Jointed, Basic Type, MY1B Series Rodless Cylinder with 50 mm Bore Size and 800 mm Stroke
Specifications
- Series: MY1
- Cylinder Inner Diameter: 50
- Stroke: 800 mm
- Cylinder Style: Mechanically Jointed
- Guide Type: Basic Guide - Standard
- Bore Diameter: 50 mm
- Cushion Type: Air Cushion
- Piston Action: Double-Acting
- Port Thread Standard: BSPT
- Port Size: 1/8 BSPT
- Piping Type: Standard Piping
- Port Gender: Female
- Stroke Adjuster Type: Without adjusting unit
- Mounting Orientation: Ceiling, Horizontal, Vertical, Wall
- Operating Temperature Range: 41 to 140 degrees F
- Overall Height: 94 mm
- Overall Width: 92 mm
- Overall Length: 1200 mm
- Operating Pressure Range: 14 to 116 psi
- Minimum Operating Pressure: 14 psi
- Maximum Operating Pressure: 116 psi
- Proof Pressure: 174 psi
- Seal Kit: MY1B50-PS
- Mounting Type: Basic
- Product Type: Rodless Air Cylinders
- Suitable Media: Compressed Air
- Weight: 28.66009 lb
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
