SMC MY1B63-800 RODLESS CYLINDER
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: MY1B63-800
IMS Product Code: 1862312
Packaging: Sold Individually
Description:

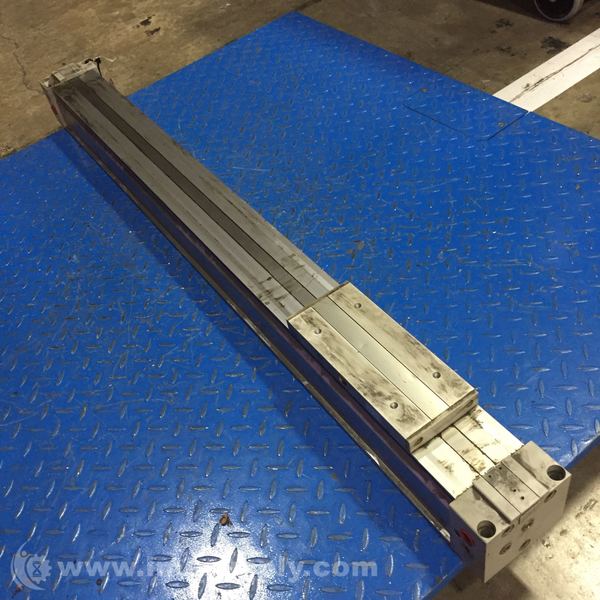

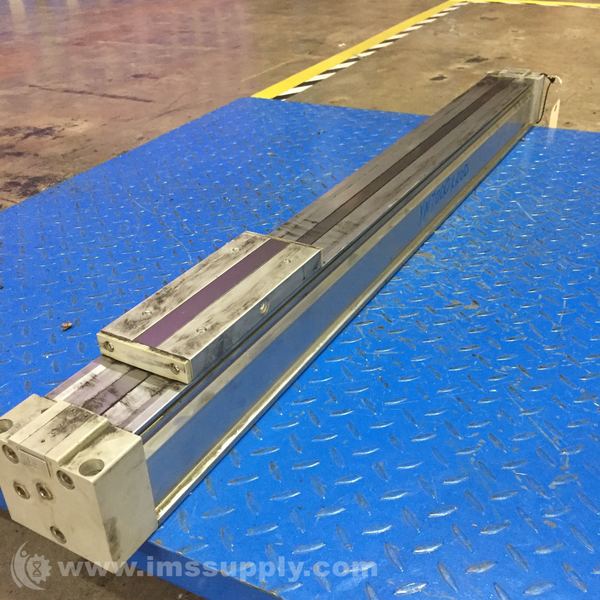

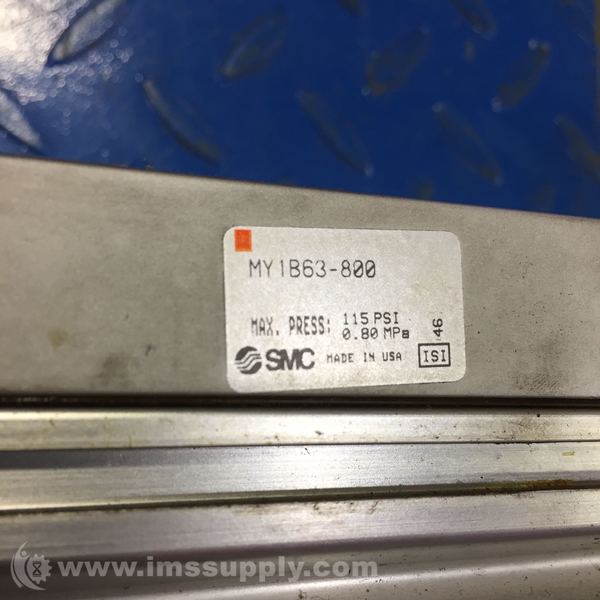

SMC MY1B63-800 Rodless Cylinder
Mechanically jointed rodless cylinder with 63mm bore and 800mm stroke
Specifications
- Bore Diameter: 63 mm
- Stroke: 800 mm
- Cylinder Style: Mechanically Jointed
- Guide Type: Basic Guide - Standard
- Cushion Type: Air Cushion
- Piston Action: Double-Acting
- Port Thread Standard: BSPT
- Port Size: 1/8 BSPT
- Piping Type: Standard Piping
- Port Gender: Female
- Stroke Adjuster Type: Without adjusting unit
- Mounting Orientation: Ceiling, Horizontal, Vertical, Wall
- Operating Temperature Range: 41 to 140 degrees F
- Operating Pressure Range: 14 to 116 psi
- Proof Pressure: 174 psi
- Overall Height: 116 mm
- Overall Width: 112 mm
- Overall Length: 1260 mm
- Weight: 77.16179 lb
- Series: MY1
- Country of Origin: US
