SMC MY1B63TN-1400 RODLESS CYLINDER
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: MY1B63TN-1400
IMS Product Code: 2125242
Packaging: Sold Individually
Description:

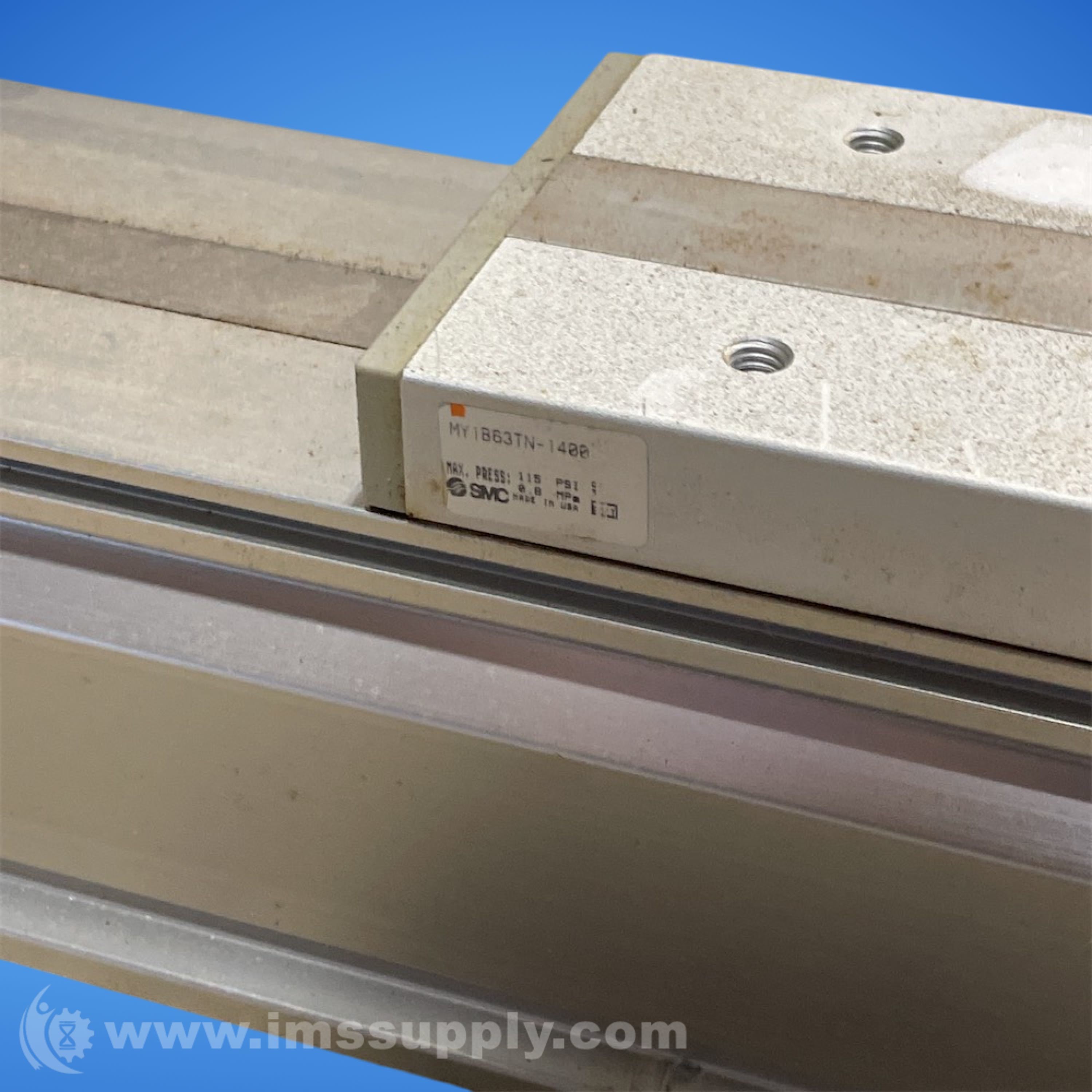

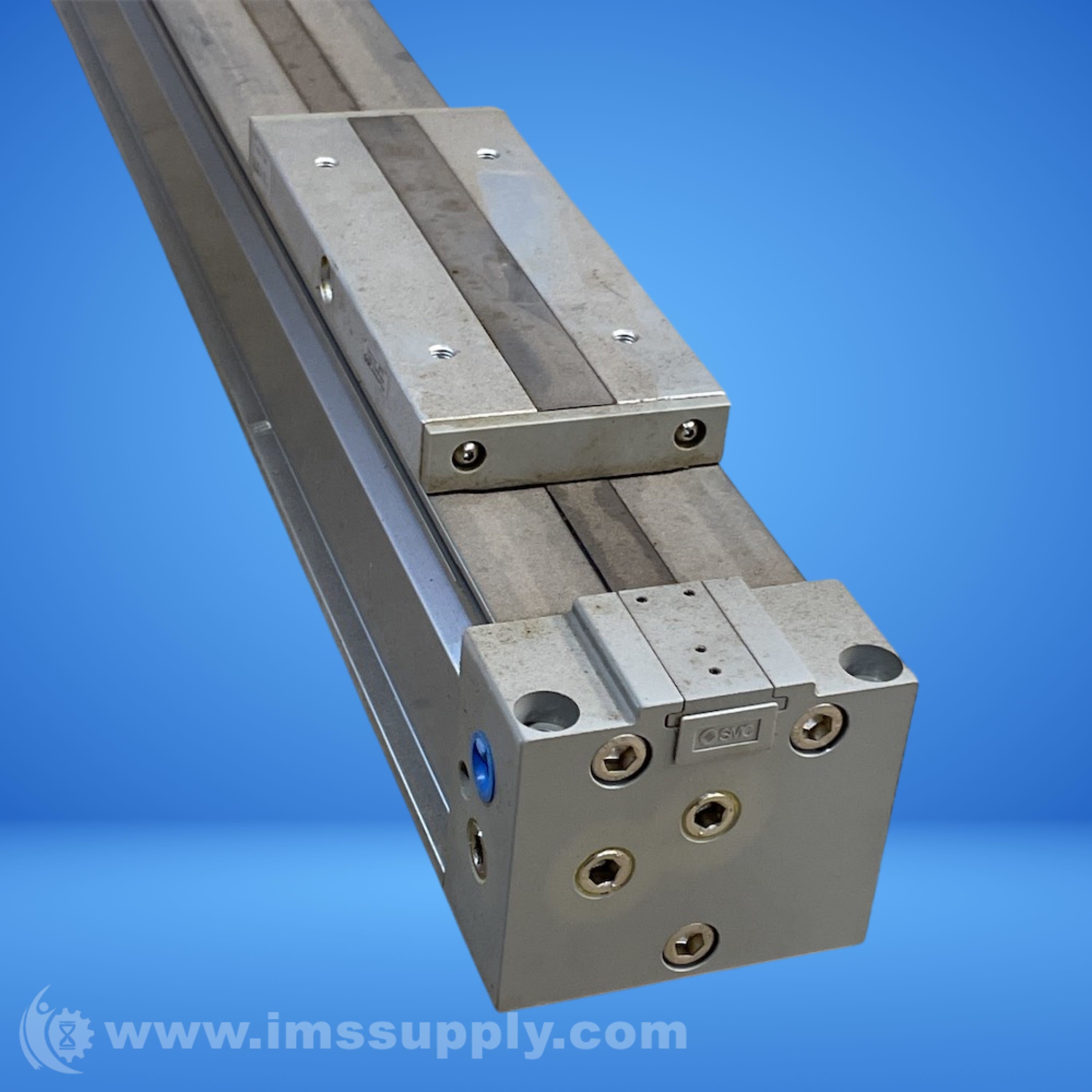

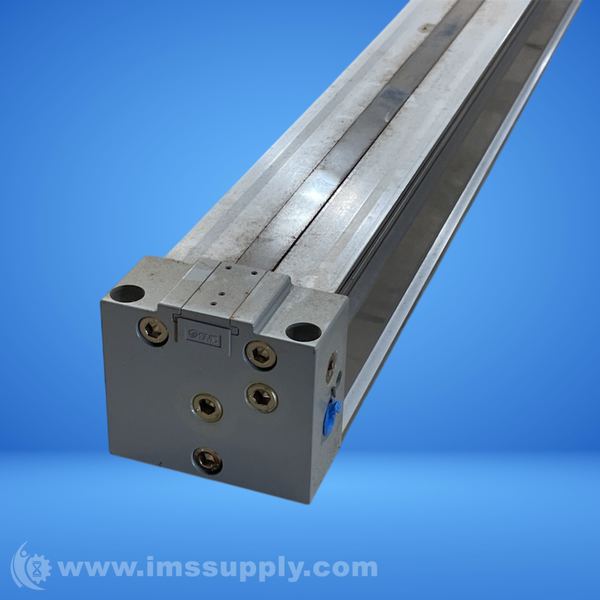

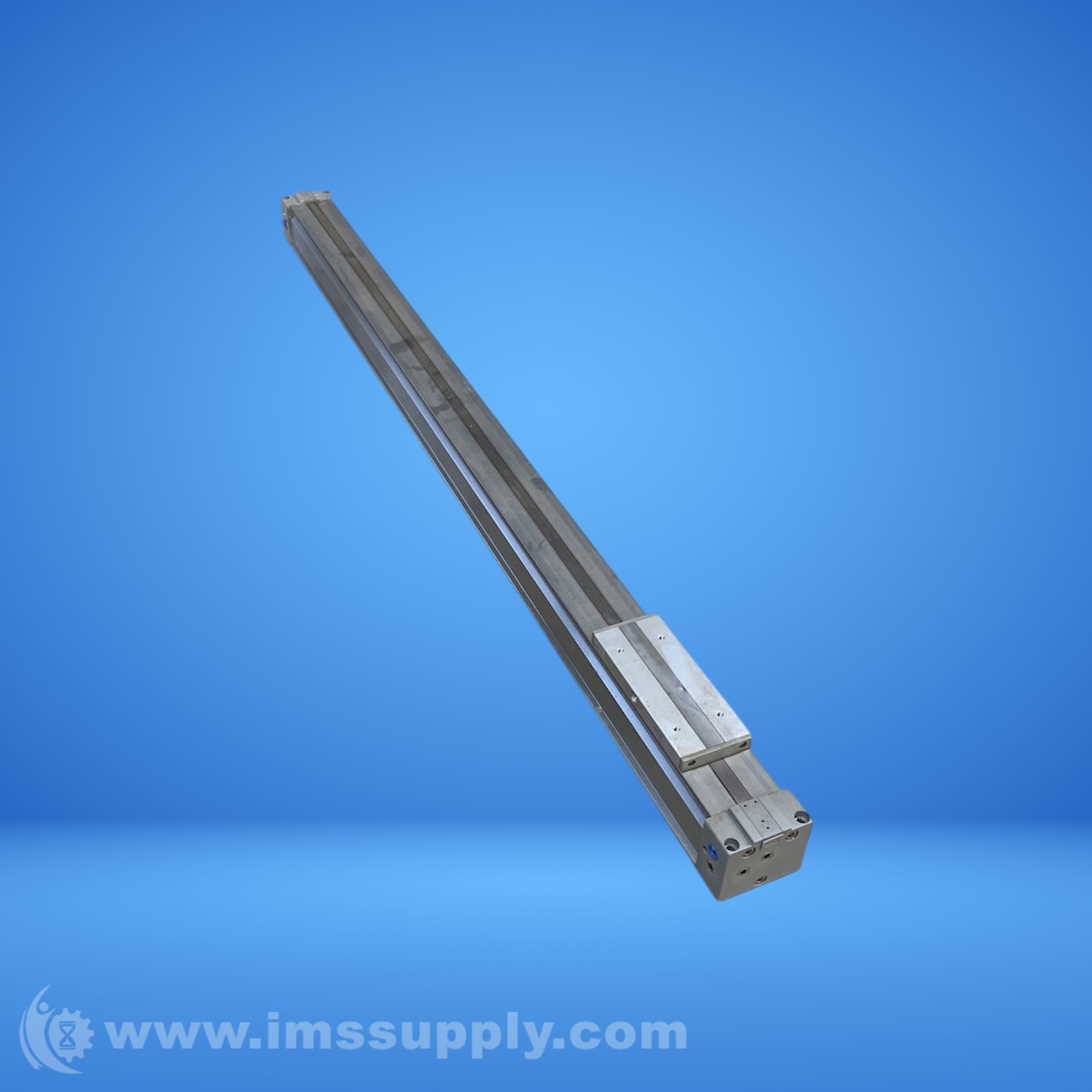

SMC MY1B63TN-1400 Rodless Cylinder
Mechanically jointed rodless cylinder with 63 mm bore diameter and 1400 mm stroke.
Specifications
- Series: MY1
- Cylinder Style: Mechanically Jointed
- Guide Type: Basic Guide - Standard
- Bore Diameter: 63 mm
- Stroke: 1400 mm
- Cushion Type: Air Cushion
- Piston Action: Double-Acting
- Port Thread Standard: NPT
- Port Size: 1/8 NPT
- Piping Type: Standard Piping
- Port Gender: Female
- Stroke Adjuster Type: Without adjusting unit
- Mounting Orientation: Ceiling, Horizontal, Vertical, Wall
- Operating Temperature Range: 41 to 140 degrees F
- Overall Height: 116 mm
- Overall Width: 112 mm
- Overall Length: 1860 mm
- Operating Pressure Range: 14 to 116 psi
- Minimum Operating Pressure: 14 psi
- Maximum Operating Pressure: 116 psi
- Proof Pressure: 174 psi
- Seal Kit: MY1B63-PS
- Mounting Type: Basic
- Product Type: Rodless Air Cylinders
- Weight: 41.22644 lb
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
