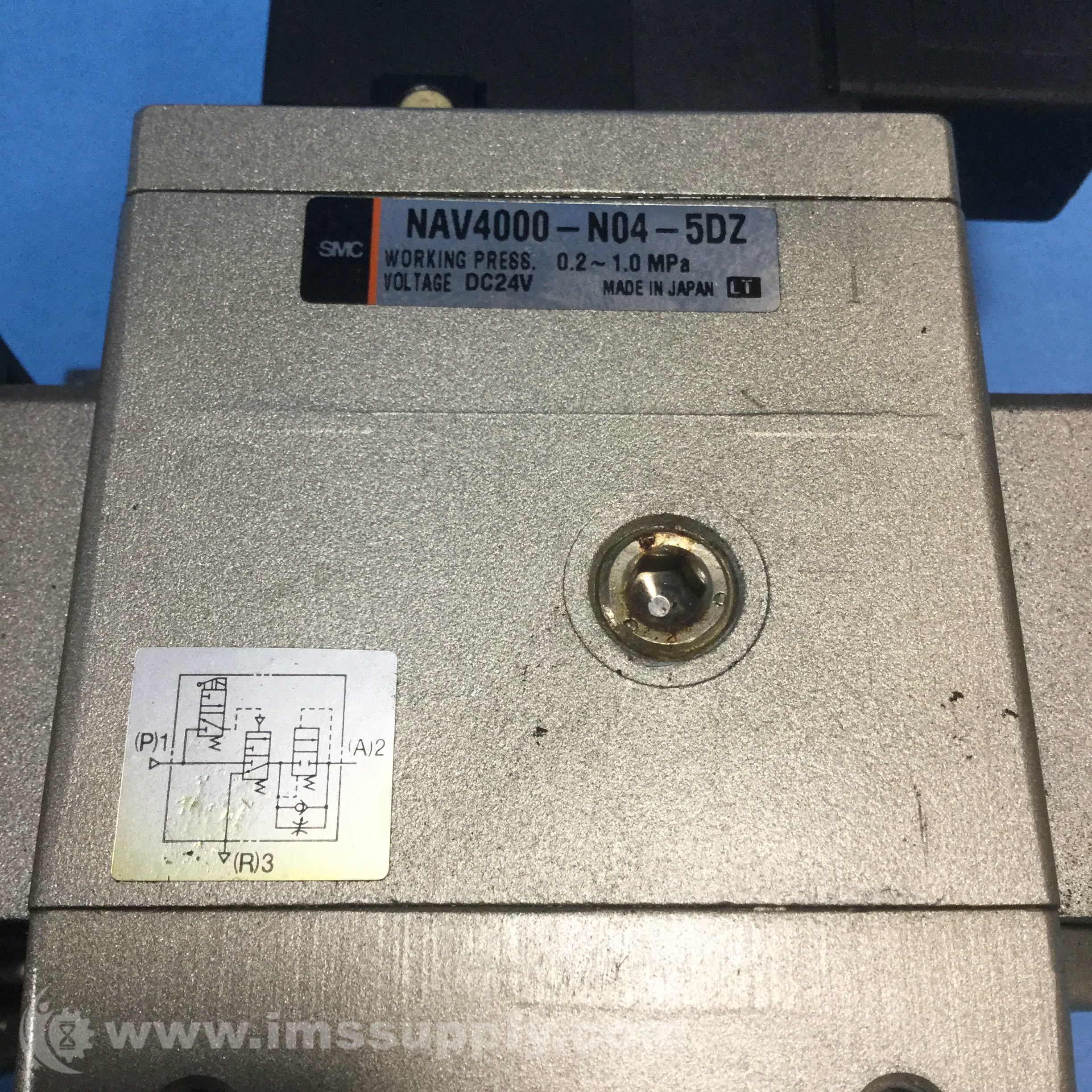

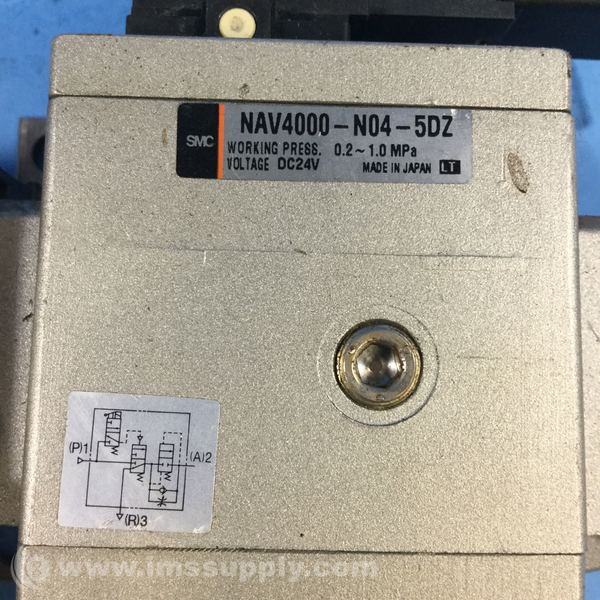

SMC NAV4000-N04-5DZ SOFT START-UP VALVE
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: NAV4000-N04-5DZ
IMS Product Code: 1751640
Packaging: Sold Individually
Description:

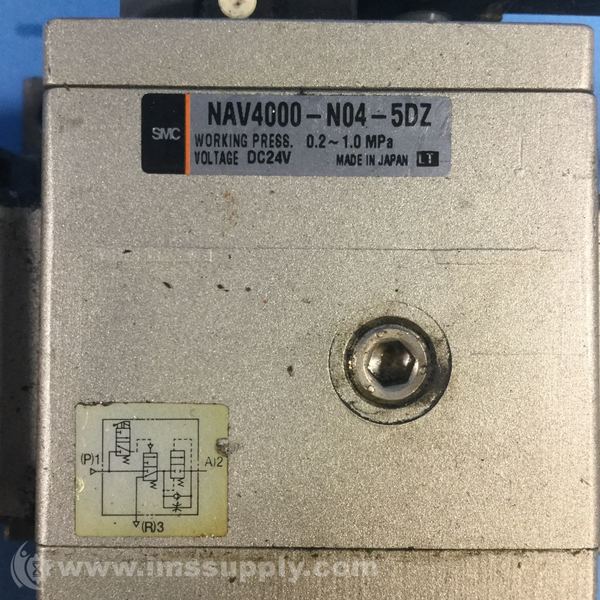

SMC NAV4000-N04-5DZ Soft Start-Up Valve
Direct operated soft start-up solenoid valve with indicator light/surge voltage suppressor, 1/2 inch port size, 0.2 to 1 MPa operating pressure range.
Specifications
- Port Size: 1/2
- Proof Pressure: 1.5 MPa
- Operating Pressure Range: 0.2 to 1 MPa
- Pressure Gauge Port Size: 1/8
- Ambient and Fluid Temperature: 0 to 60C
- Effective Area: 61 mm˛ (1(P) to 2(A)), 76 mm˛ (2(A) to 3(R))
- Mass: 0.74 kg
- Solenoid Supply Voltage: 24 V DC
- Solenoid Electrical Entry: DIN Terminal
- Manual Override Type: Non-Locking Push Type (Flush)
- Flow Coefficient Cv: 3.6/4.49
- Overall Dimensions: 153 mm (L) x 52 mm (W) x 147 mm (H)
- Seal Material: Nitrile
- Body Material: Aluminum
Used (Special):

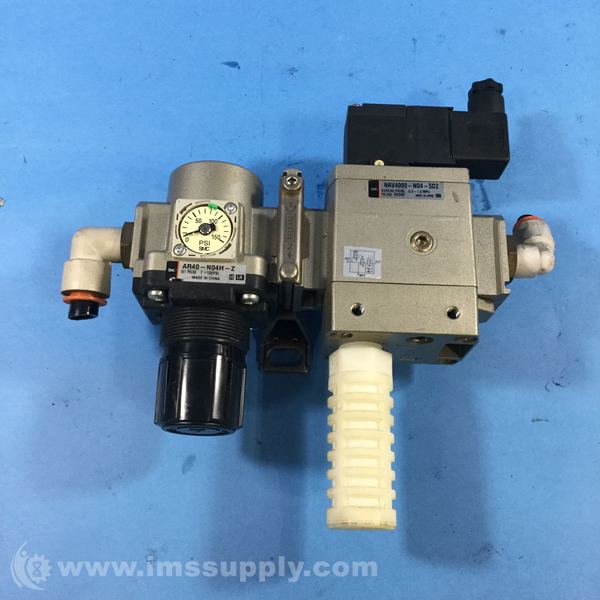

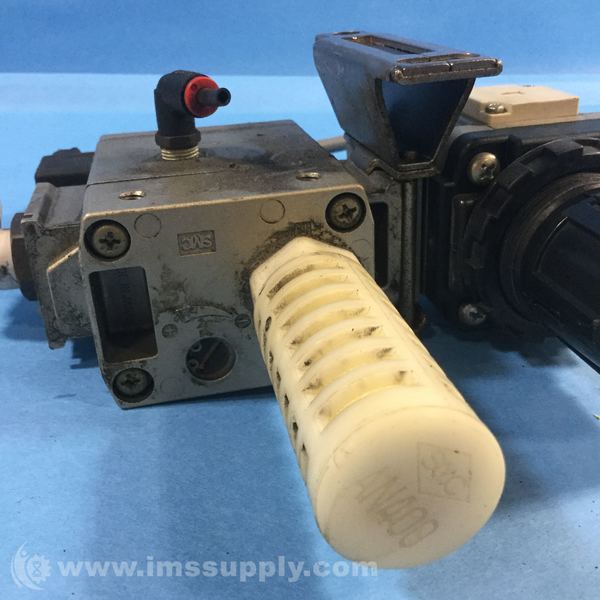

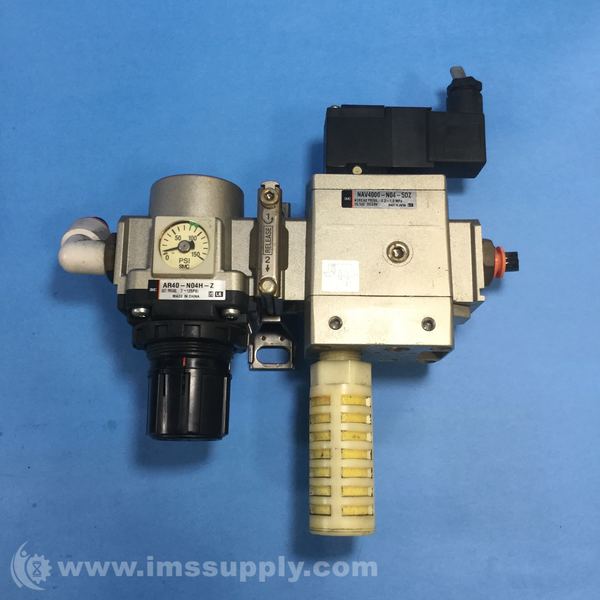

ADDITIONAL ATTACHED PARTS INCLUDE: SMC AR40-N04H-Z, SMC SILENCER AND ADDITIONAL FITTINGS.
Availability: 1 In Stock
Ships today if ordered in the next 14 hours and 15 minutes.
Used (Special):

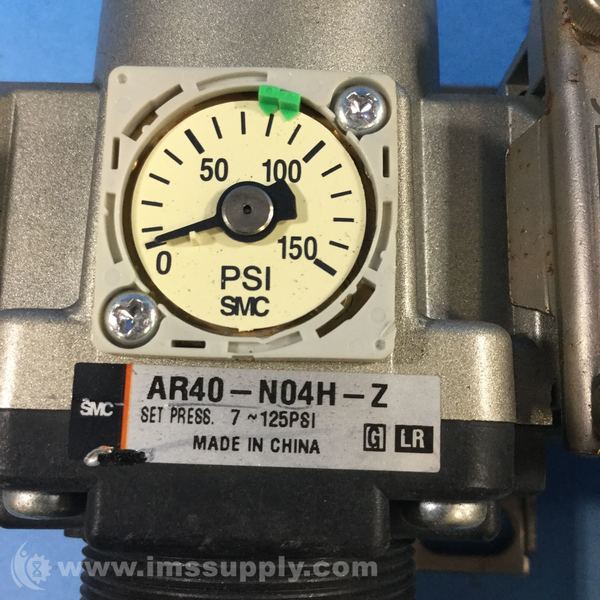

attached is SMC AR40-N04H-Z
Availability: 1 In Stock
Ships today if ordered in the next 14 hours and 15 minutes.
Used (Special):
Attached to SMC AR40-N04H-Z and additional fittings.
Availability: 1 In Stock
Ships today if ordered in the next 14 hours and 15 minutes.
Used (Special):

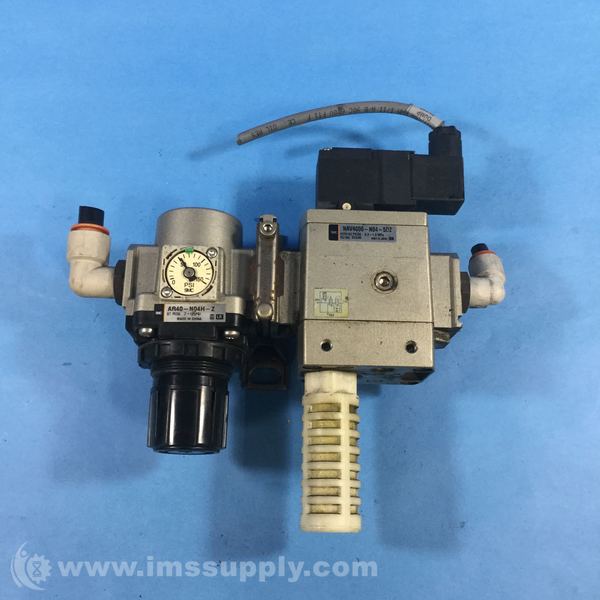

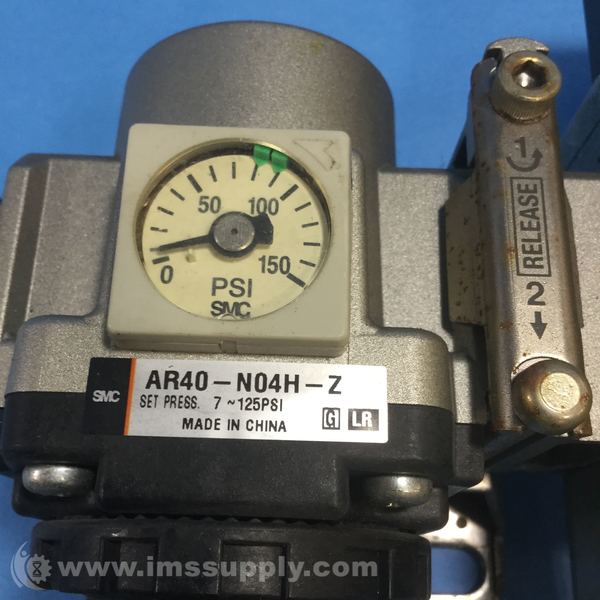

Attached: SMC AR40-N04H-Z regulator, psi gauge and fittings.
Availability: 1 In Stock
Ships today if ordered in the next 14 hours and 15 minutes.
Used (Special):

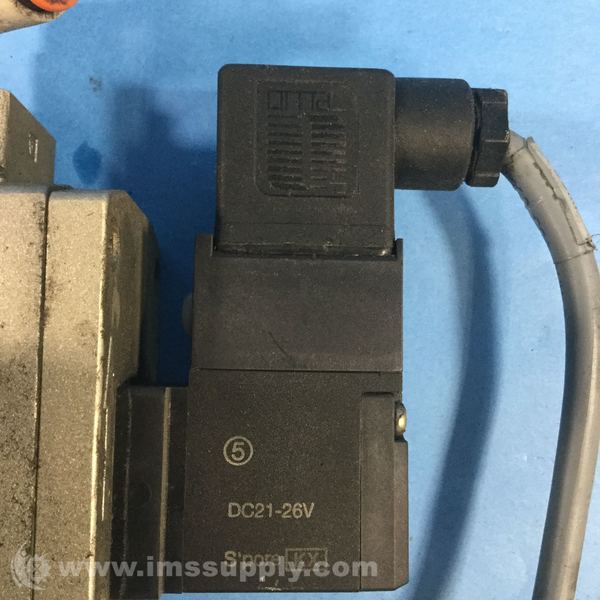

SMC AR40-N04H-Z and Tellio DC21-26V attached
Availability: 4 In Stock
Ships today if ordered in the next 14 hours and 15 minutes.
Used (Special):
This part has an SMC AR40-N04H-Z attached to it as well as some additional peripheral parts.
