SMC NAV5000-N06-5DZ SOFT START VALVE
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: NAV5000-N06-5DZ
IMS Product Code: 1979873
Packaging: Sold Individually
Description:

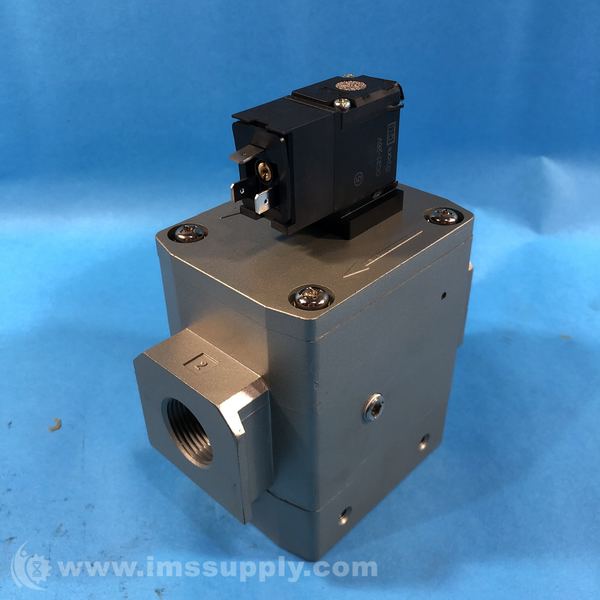

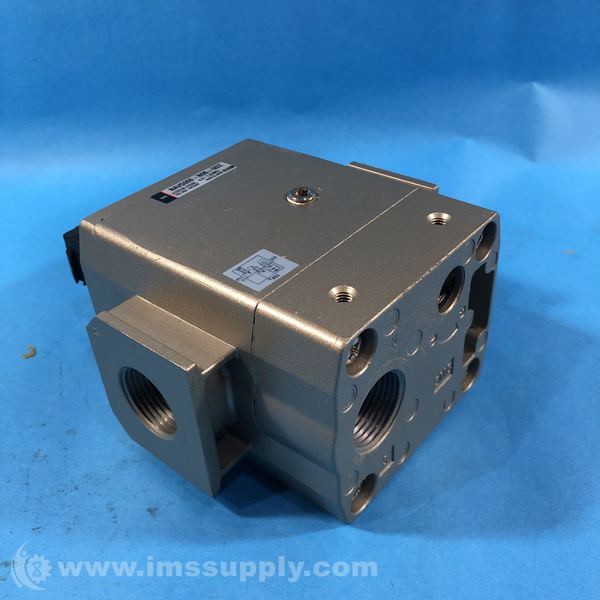

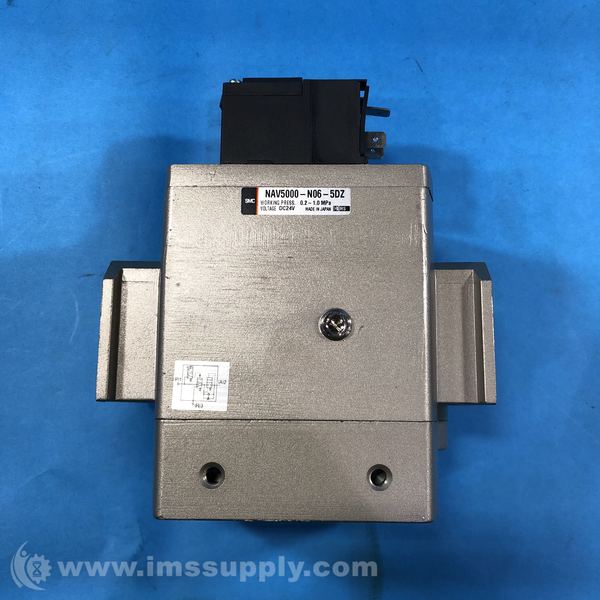

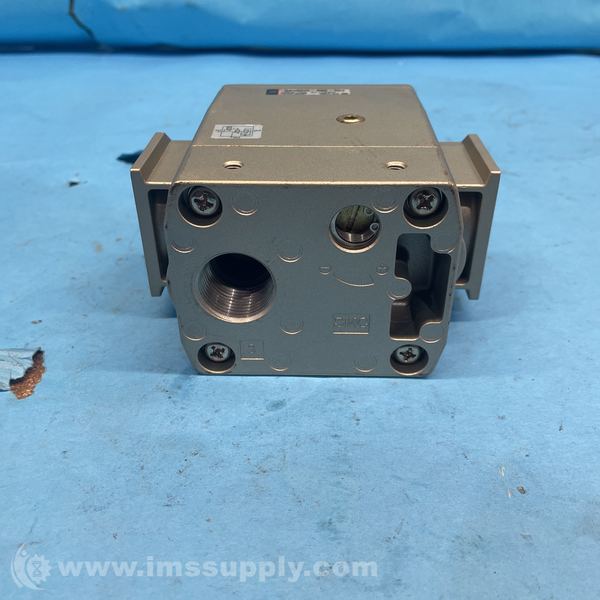

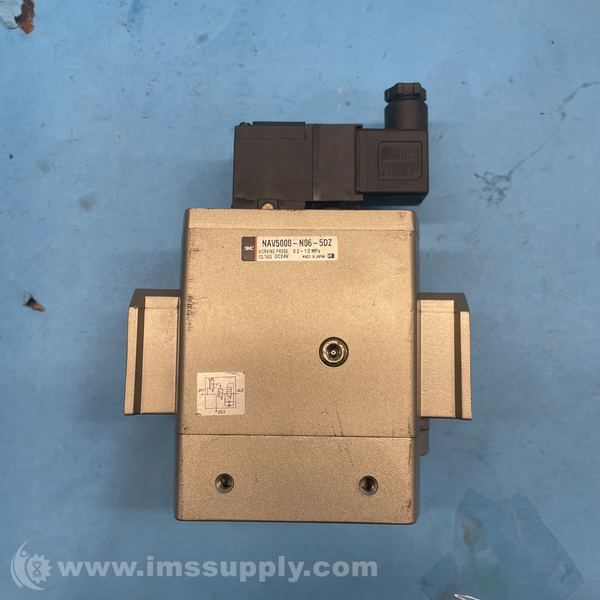

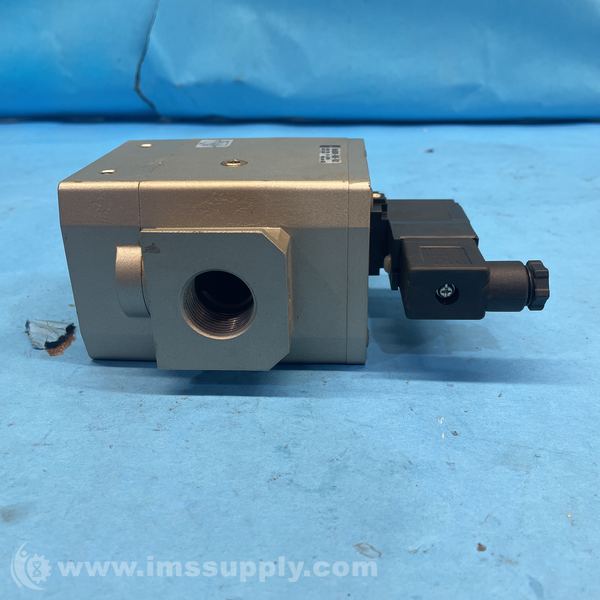

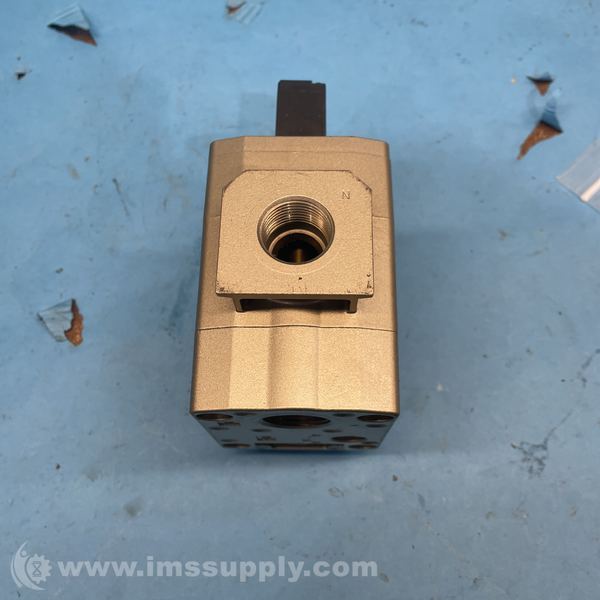

SMC NAV5000-N06-5DZ Soft Start Valve
Pneumatic soft start valve with 3/4 inch port size and 0.2-1.0 MPa pressure range.
Specifications
- Model: AV5000
- Port size: 3/4
- Proof pressure: 1.5 MPa
- Operating pressure range: 0.2 to 1 MPa
- Pressure gauge port size: 1/8
- Ambient and fluid temperature: 0 to 60C
- Effective area: 113 mm2
- Mass: 1.60 kg

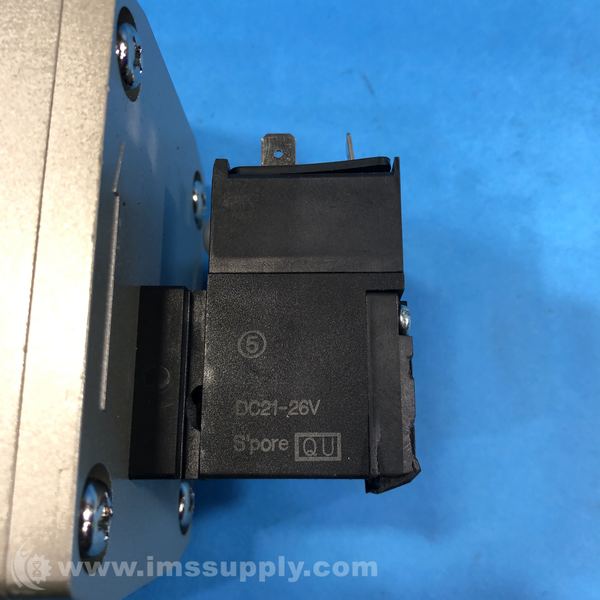

- Rated coil voltage: 24 VDC
- Allowable voltage fluctuation: -15 to +10% of rated voltage
- Coil insulation type: Equivalent to B type (130C)
- Current consumption DC: 3.4 VA (2.1 W)/50 Hz, 2.3 VA (1.5 W)/60 Hz
- Electrical entry: Grommet, Type D DIN terminal, Type Y DIN terminal
- Option specifications: Indicator light/Surge voltage suppressor
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 2 In Stock
Ships today if ordered in the next 3 hours and 27 minutes.
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships today if ordered in the next 3 hours and 27 minutes.
