SMC NCA1B200-0500 NFPA TIE ROD CYLINDER
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: NCA1B200-0500
IMS Product Code: 2153042
Packaging: Sold Individually
Description:

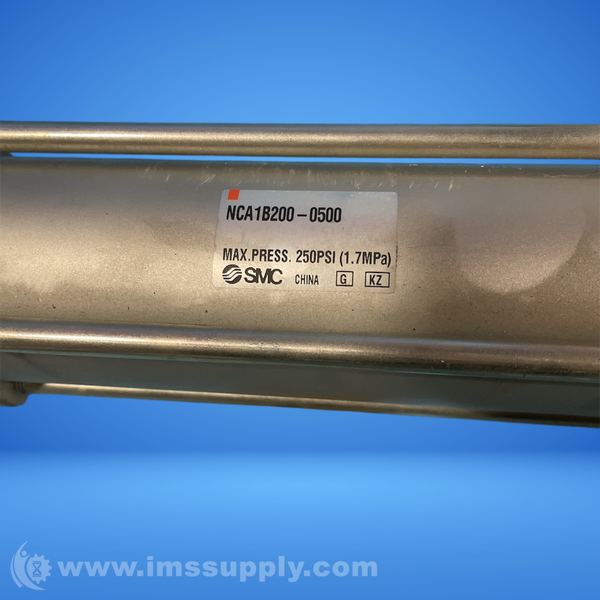

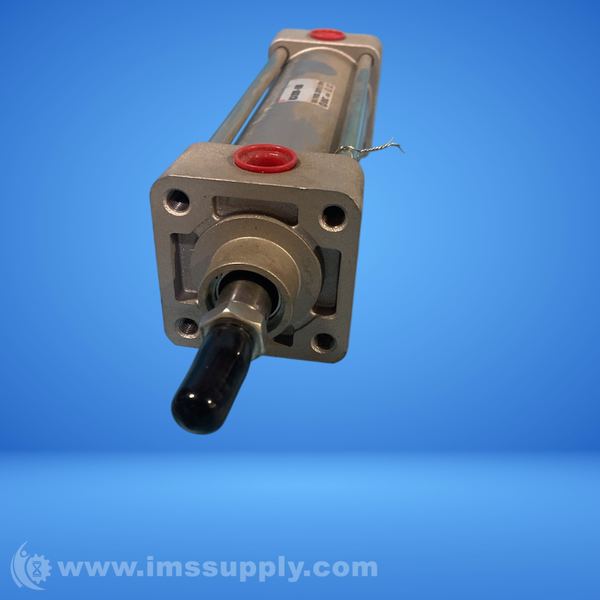

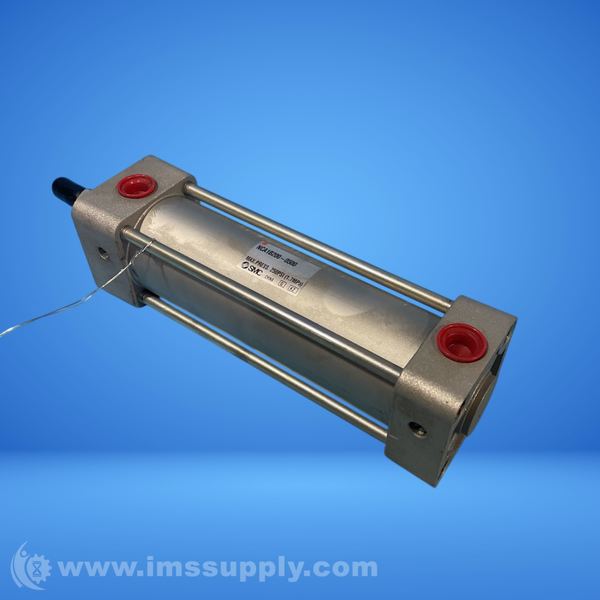

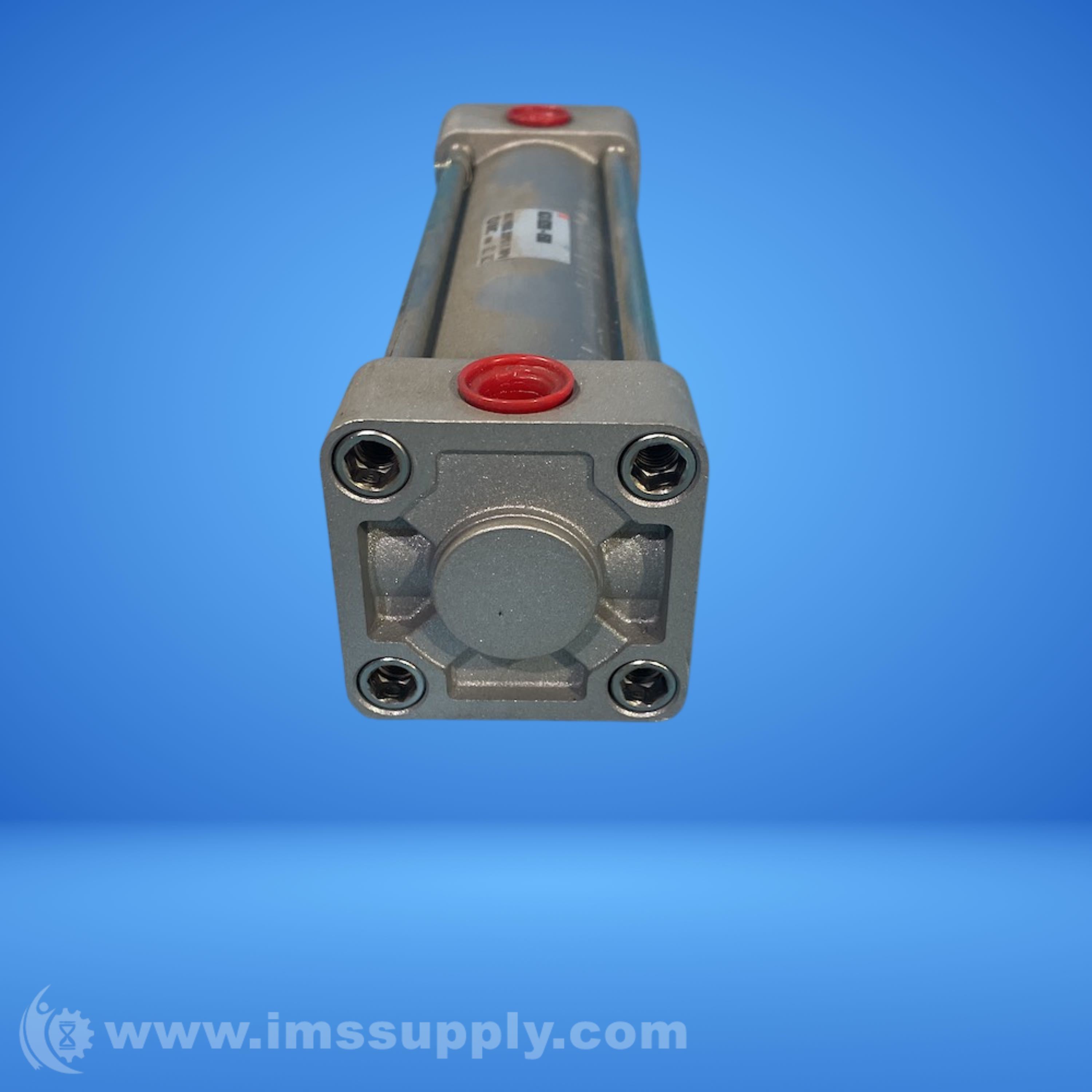

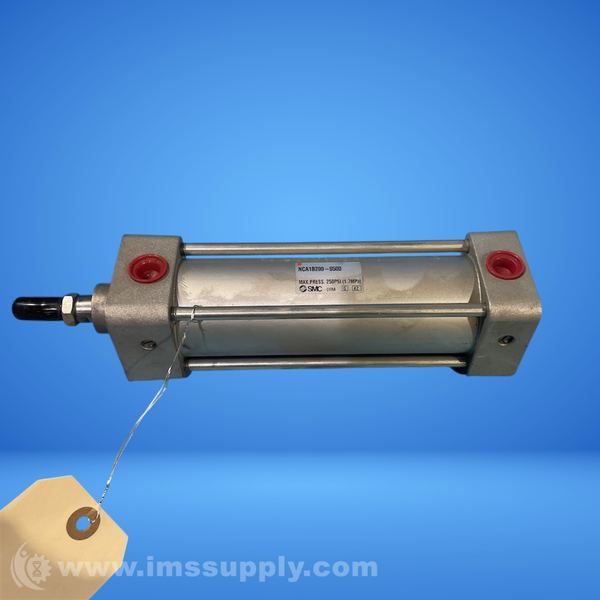

SMC NCA1B200-0500 NFPA Tie Rod Cylinder
Double-acting tie-rod air cylinder with 2 inch bore diameter and 5 inch stroke length, made of aluminum with anodized finish, conforming to NFPA standards.
Specifications
- Series: NCA1
- Type: NFPA Cylinder
- Bore Diameter: 2 in
- Stroke Length: 5 in
- Action: Double-acting
- Body Material: Aluminum
- Body Material Finish: Anodized
- Cushion Type: Air Cushion
- Magnetic Piston: Non-Magnetic Piston
- Mounting: Tapped Hole
- Number of Rods: Single Rod
- Rod Thread Length: 3/4 in
- Rod Thread Size: 7/16"-20
- Maximum Operating Pressure: 250 psi
- Minimum Operating Pressure: 8 psi
- Maximum Operating Temperature: 140 degrees F
- Minimum Operating Temperature: 40 degrees F
- End Cap Material: Aluminum
- Piston Material: Aluminum
- Piston Rod Material: Carbon Steel
- Tie Rod Material: Carbon Steel
- Overall Height: 2-1/2 in
- Overall Width: 2-1/2 in
- Rod Diameter: 5/8 in
- For Fluid Type: Air
- Weight: 3.28929 lb
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 2 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
