SMC NCDA1B150-0150 TIE ROD AIR CYLINDER
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: NCDA1B150-0150
IMS Product Code: 1297698
Packaging: Sold Individually
Description:

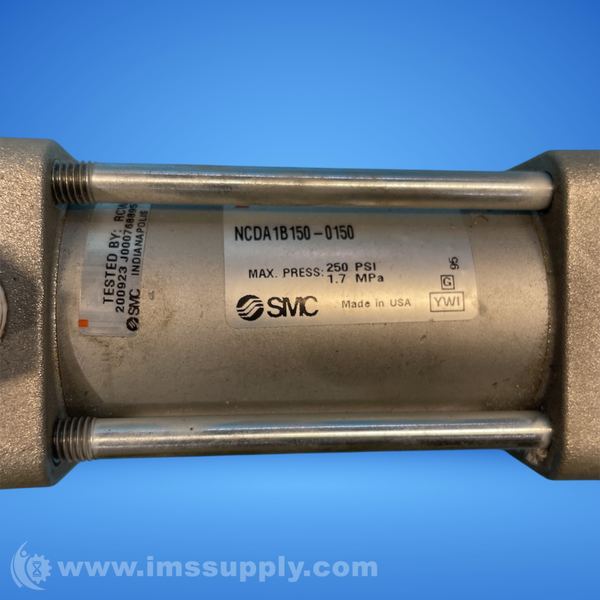

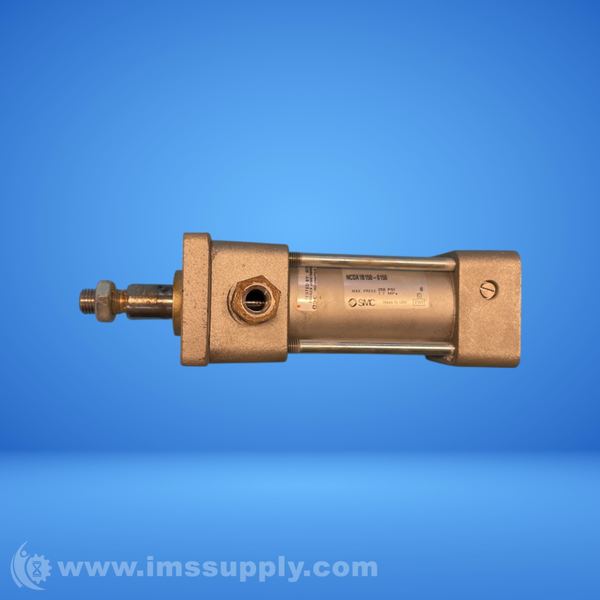

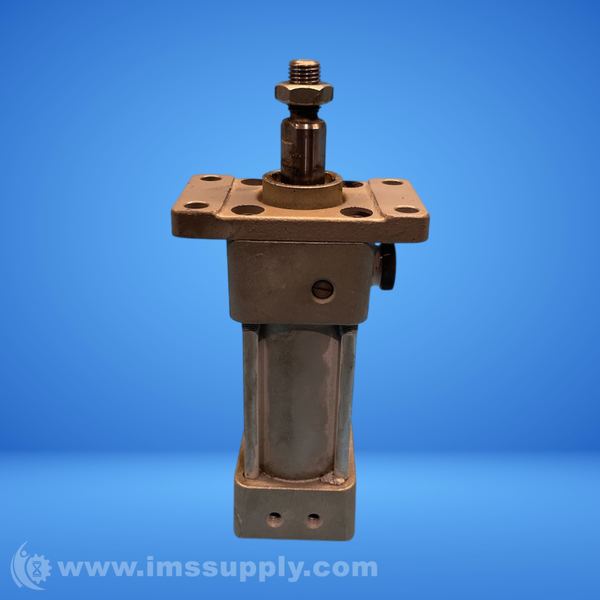

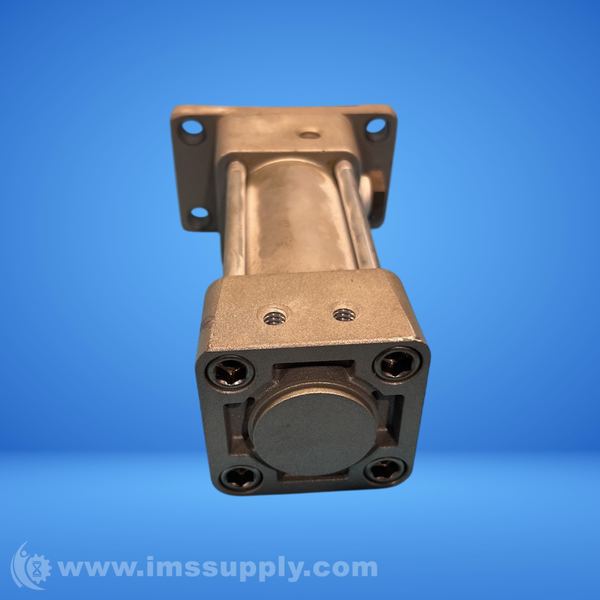

SMC NCDA1B150-0150 Tie Rod Air Cylinder
Double-acting tie rod air cylinder with 1.5 inch bore diameter and 1.5 inch stroke length. NFPA interchangeable, pre-lubricated, and available with magnetic piston and auto-switch capability.
Specifications
- Series: NCA1
- Cylinder Type: NFPA
- Bore Diameter: 1.5000 in
- Stroke: 1.500 in
- Rod Type: Single Rod
- Rod Gender: Male
- Rod - Thread Size: 7/16-20 Male Thread
- Port Size: 3/8 NPT
- Port Gender: Female
- Port Thread Standard: NPT
- Cushion Type: Cushion Both Ends
- Piston Action: Double-Acting
- Rod Thread Standard: UNF
- Rod Size: 0.6250 in
- Maximum Operating Pressure: 250 psi
- Minimum Operating Pressure: 8 psi
- Operating Pressure Range: 8 to 250 psi
- Operating Temperature Range: 40 to 140 degrees F
- Push Force At 100 Psi: 177 lb
- Pull Force At 100 Psi: 31 lb
- Standards Met: ANSI (NFPA) T3.6.7 R2-1996
- Lube Style: Non-lube
- Mounting Type: Basic, MX0
- Overall Width: 2.0000 in
- Overall Height: 2.0000 in
- Weight: 1.98416 lb
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 2 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
