SMC NCDA1F150-0150 TIE ROD AIR CYLINDER
Quick Overview
Manufactured By: SMC

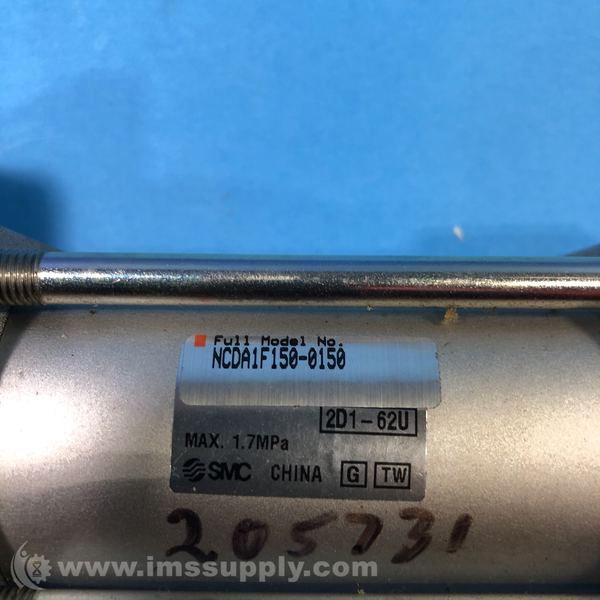

Manufacturer Part Number: NCDA1F150-0150
IMS Product Code: 1305150
Packaging: Sold Individually
Description:

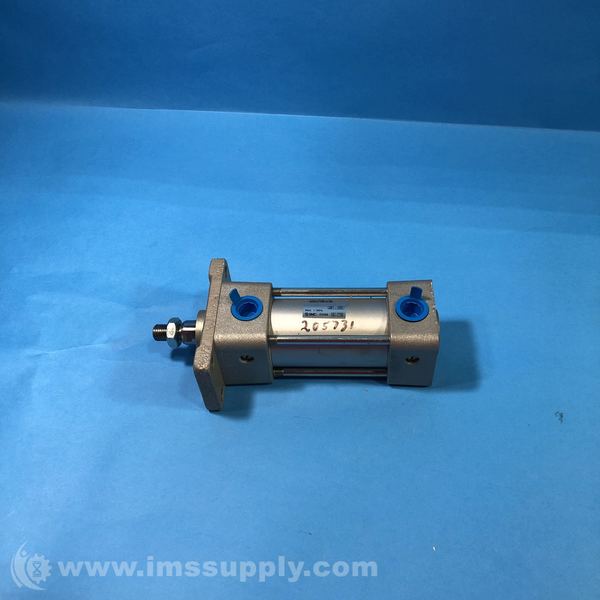

SMC NCDA1F150-0150 Tie Rod Air Cylinder
SMC pneumatic cylinder with a maximum pressure of 250 psi (1.70 MPa). Double-acting single rod with 1.5 inch bore size and 1.5 inch stroke.
Specifications
- Series: NCA1
- Type: Tie-Rod Cylinder
- Action: Double-Acting
- Bore Diameter: 1.5 in
- Stroke: 1.5 in
- Rod Type: Single Rod
- Rod Size: 0.625 in
- Rod Thread Size: 7/16-20 Male Thread
- Port Size: 3/8 NPT
- Port Gender: Female
- Port Thread Standard: NPT
- Maximum Operating Pressure: 250 psi
- Minimum Operating Pressure: 8 psi
- Operating Pressure Range: 8 to 250 psi
- Cushion Type: Cushion Both Ends
- Auto-Switch: With Auto Switch (Magnetic Piston)

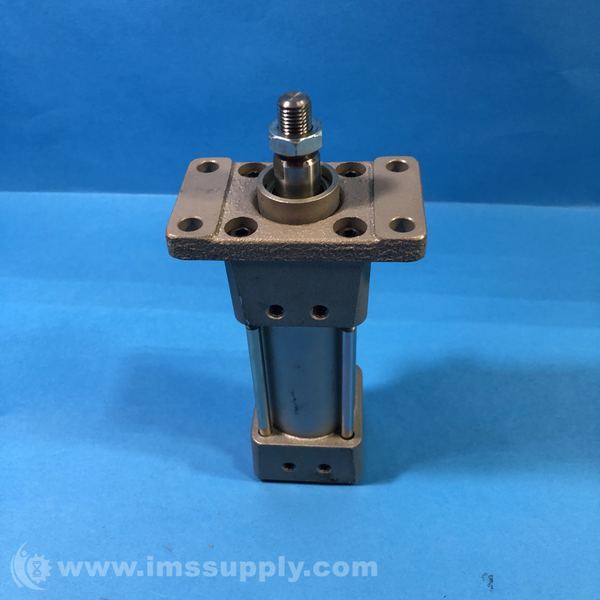

- Mounting Type: Flange (Rod), MF1
- Overall Width: 3.375 in
- Overall Height: 2 in
- Lube Style: Non-lube
- Standards Met: ANSI (NFPA) T3.6.7 R2-1996
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
