SMC NCDA1F200-1200 TIE ROD CYLINDER
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: NCDA1F200-1200
IMS Product Code: 1305718
Packaging: Sold Individually
Description:

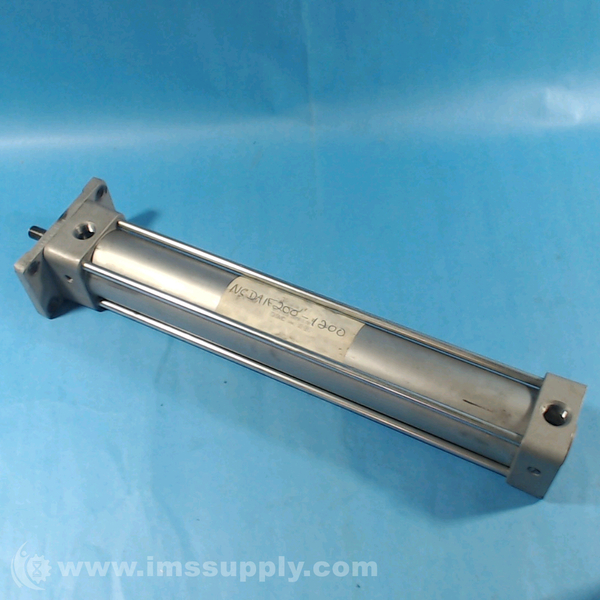

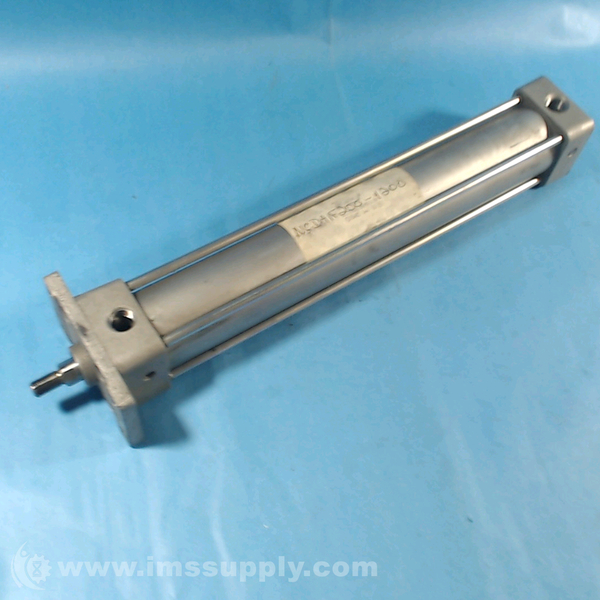

SMC NCDA1F200-1200 Tie Rod Cylinder
Double-acting tie rod cylinder with 2-inch bore and 12-inch stroke, NFPA compliant.
Specifications
- Bore Diameter: 2.0000 in
- Stroke: 12.000 in
- Cylinder Type: NFPA
- Rod Type: Single Rod
- Rod Gender: Male
- Rod - Thread Size: 7/16-20 Male Thread
- Port Size: 3/8 NPT
- Port Gender: Female
- Port Thread Standard: NPT
- Rod Thread Standard: UNF
- Rod Size: 0.6250 in
- Cushion Type: Cushion Both Ends
- Piston Action: Double-Acting
- Maximum Operating Pressure: 250 psi
- Minimum Operating Pressure: 8 psi
- Operating Pressure Range: 8 to 250 psi
- Push Force At 100 Psi: 314 lb
- Pull Force At 100 Psi: 31 lb
- Operating Temperature Range: 40 to 140 degrees F
- Series: NCA1
- Mounting Type: Flange (Rod), MF1
- Product Type: Tie Rod Air Cylinders
