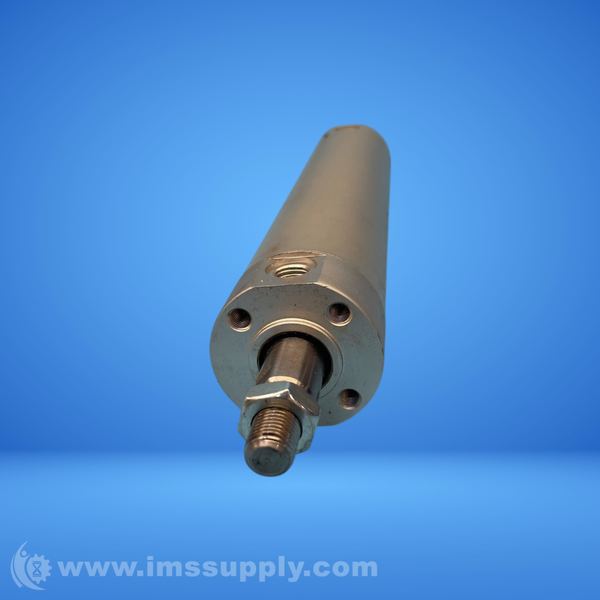

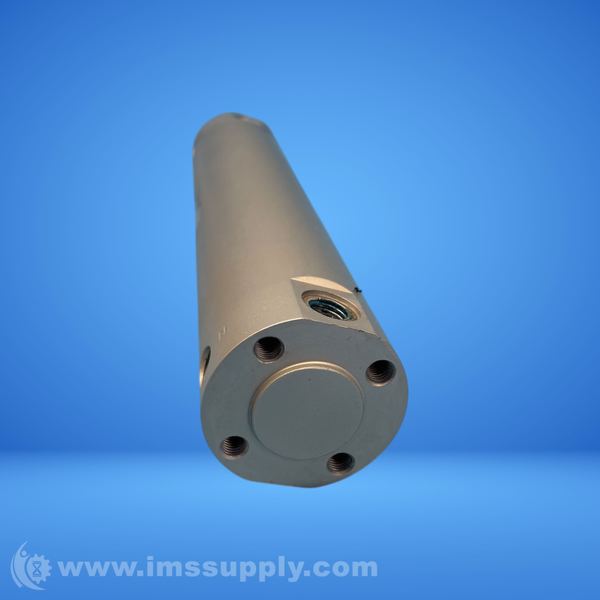

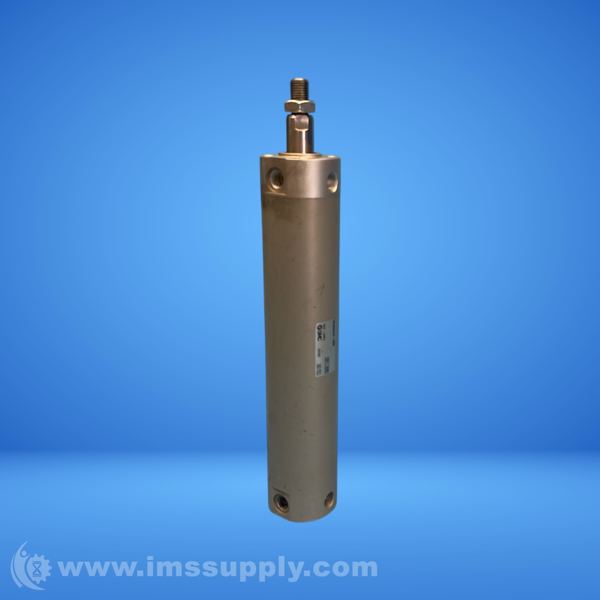

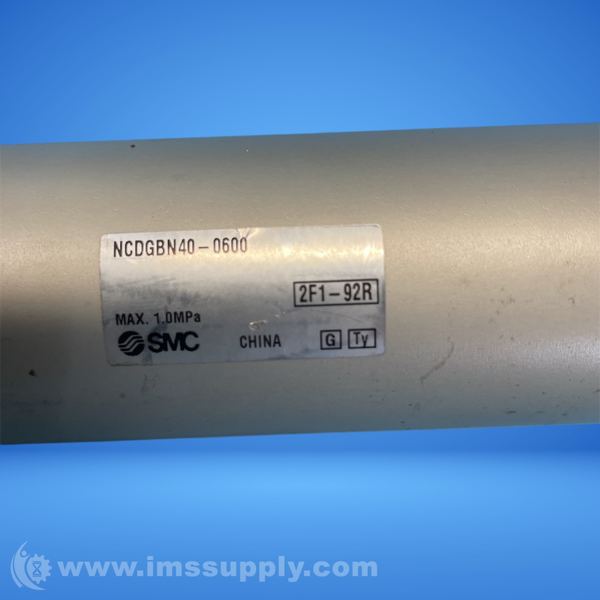

SMC NCDGBN40-0600 ROUND BODY CYLINDER
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: NCDGBN40-0600
IMS Product Code: 1321932
Packaging: Sold Individually
Description:
SMC NCDGBN40-0600 Round Body Cylinder
Double-acting single rod cylinder with 40 mm bore size and 6 inch stroke. Aluminum body, urethane cushion, and NPT port thread standard.
Specifications
- Bore Diameter: 40 mm
- Stroke: 6 in
- Piston Action: Double-Acting
- Rod Type: Single Rod
- Rod Size / Thread: 7/16-20 Male UNF
- Cushion Type: Urethane Cushion
- Port Size: 1/8 NPT
- Options Included: Magnetized, Switch Ready
- Operating Pressure Range: +8 to +145 psi
- Operating Temperature Range: +14 to +140 F
- Standards Met: JIS Class 2
- Overall Length: 10.78 in
- Overall Width: 1.85 in
- Body Material: Aluminum
- Magnet: Built-in
- Port Thread Standard: NPT
- Mounting Type: Basic
- Port Gender: Female
- Rod Gender: Male
- Rod Thread Standard: UNF
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships today if ordered in the next 6 hours and 36 minutes.
