SMC NCDMB075-0300 PNEUMATIC CYLINDER
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: NCDMB075-0300
IMS Product Code: 1342016
Packaging: Sold Individually
Description:

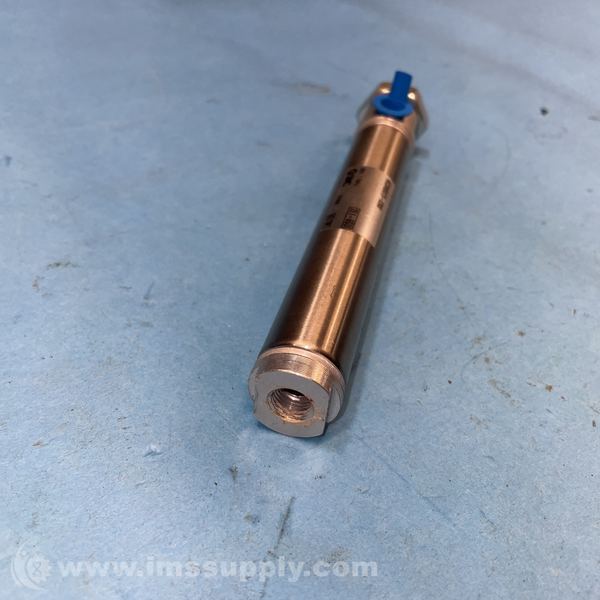

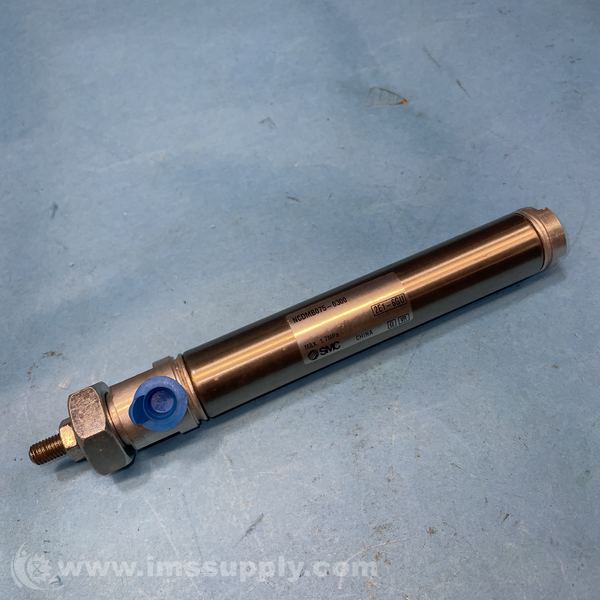

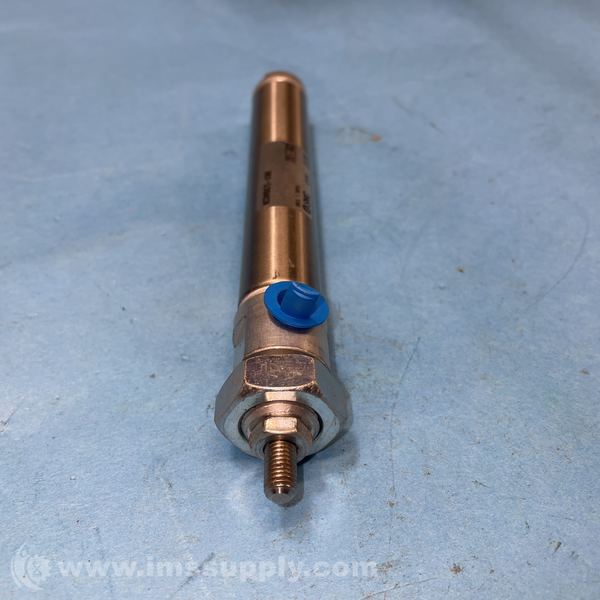

SMC NCDMB075-0300 Pneumatic Cylinder
Double-acting pneumatic cylinder with a 0.75 inch bore diameter and 3 inch stroke.
Specifications
- Bore Diameter: 0.7500 in
- Stroke: 3.000 in
- Piston Action: Double-Acting
- Rod Type: Single Rod
- Rod Size / Thread: 1/4-28 Male UNF
- Cushion Type: None
- Port Size: 1/8 NPT
- Options Included: Magnetized, Switch Ready
- Operating Pressure Range: 8 psi to 250 psi
- Push Force At 100 Psi: 44.2 lbf
- Pull Force At 100 Psi: 39.3 lbf
- Operating Temperature Range: 40 F to 140 F
- Overall Length: 6.47 in
- Overall Width: 0.86 in
- Body Material: Stainless Steel
- Port Thread Standard: NPT
- Mounting Type: Nose Mount
- Maximum Operating Pressure: 250 psi
- Minimum Operating Pressure: 8 psi
- Port Gender: Female
- Rod Gender: Male
- Rod Size: .2500 in
- Rod Thread Standard: UNF
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
