SMC NCDMB106-0200CS ROUND BODY CYLINDER
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: NCDMB106-0200CS
IMS Product Code: 1343418
Packaging: Sold Individually
Description:

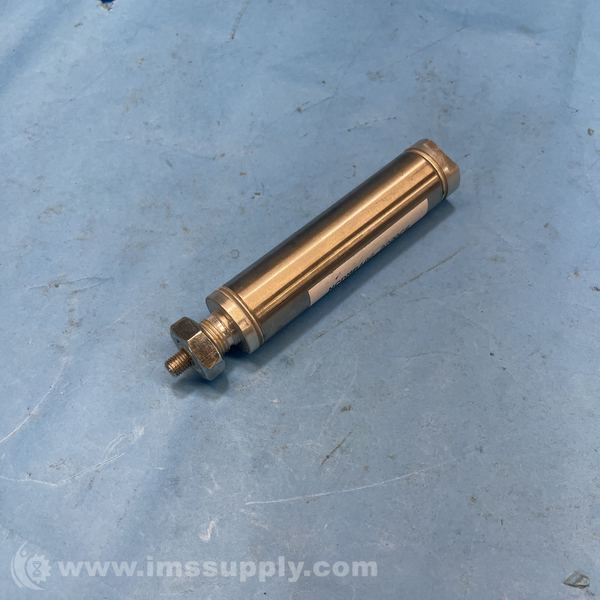

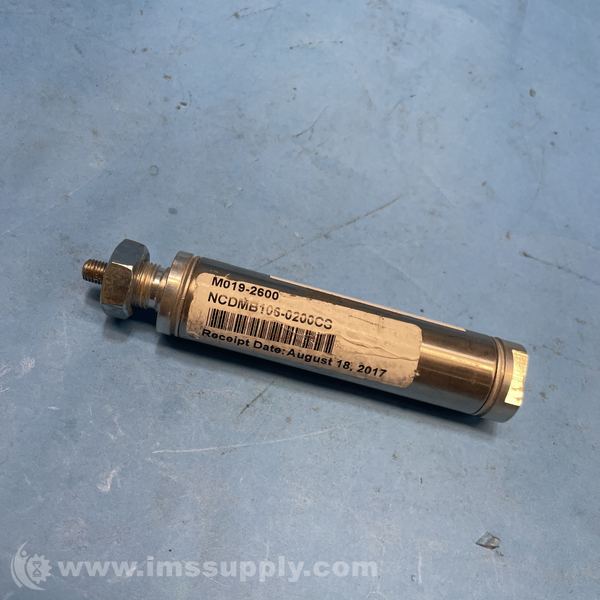

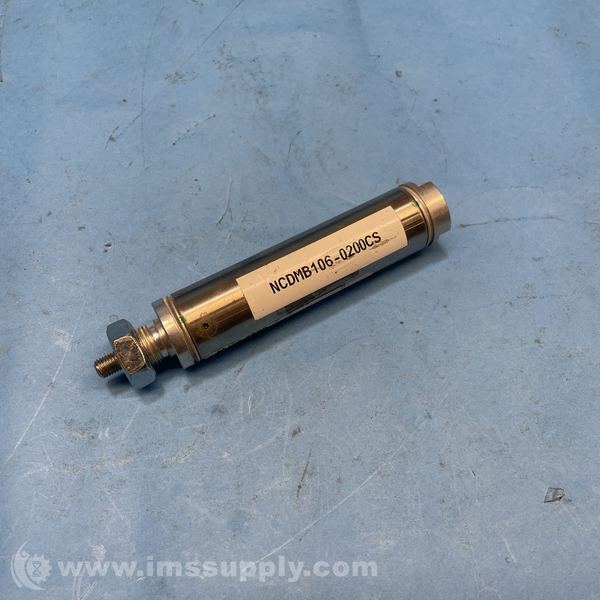

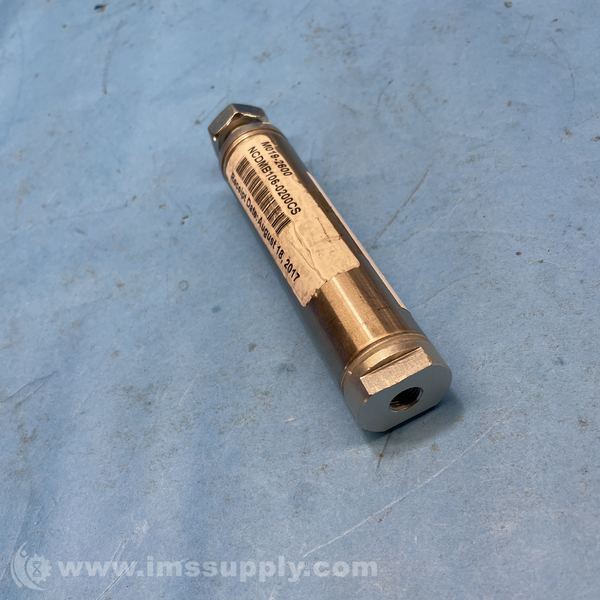

SMC NCDMB106-0200CS Round Body Cylinder
NCM Round Body Cylinder, Double acting, Single rod, Stainless Steel body, 1-1/16 in bore diameter, 2 in stroke length, Non-repairable, Nose mounting, 1/8 in NPT air inlet, Rubber cushion, Magnetic piston.
Specifications
- Series: NCM
- Model: MB1
- Cylinder Action: Double Acting
- Cylinder Type: Round Body
- Mounting Style: Nose
- Bore Diameter: 1-1/16 in
- Stroke Length: 2 in
- Body Material: Stainless Steel
- Body Material Grade: 316
- Body Material Finish: Anodized
- End Cap Material: Aluminum
- End Cap Material Finish: Anodized
- Piston Material: Aluminum
- Piston Material Finish: Chromate Coated
- Piston Rod Material: Carbon Steel
- Piston Rod Material Finish: Chrome Plated
- Number of Rods: Single Rod
- Maximum Operating Pressure: 250 psi
- Minimum Operating Pressure: 8 psi
- Maximum Operating Temperature: 140 degrees F
- Minimum Operating Temperature: 40 degrees F
- Cushion Type: Rubber Cushion
- Air Inlet: 1/8 in NPT
- Nose Mount Thread Size: 5/8-18
- Rod Diameter: 5/16 in
- Rod Thread Length: 1/2 in
- Rod Thread Size: 5/16-24
- Body Diameter: 1-1/8 in
- Weight: 0.33 lb
- Standards: RoHS Compliant
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 5 In Stock
Ships today if ordered in the next 7 hours and 39 minutes.
