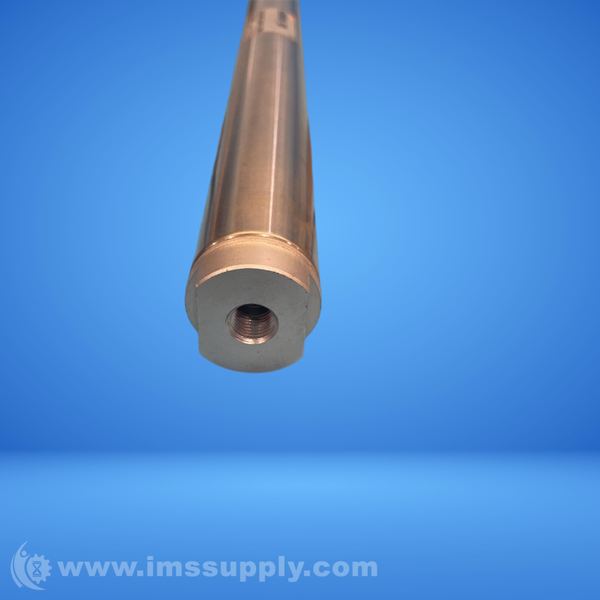

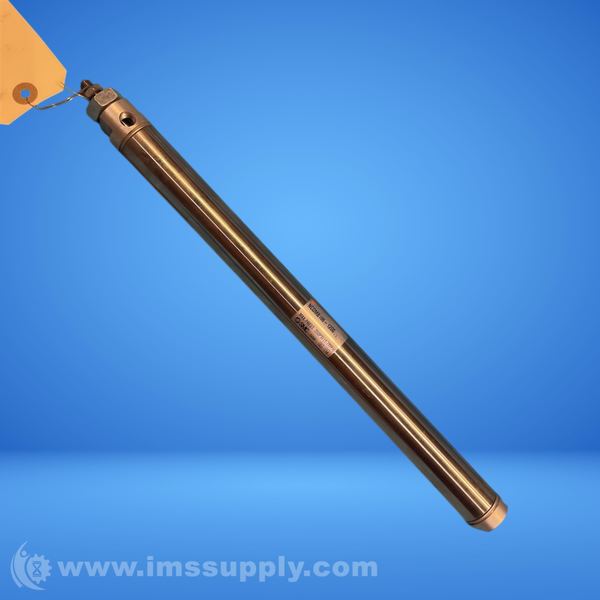

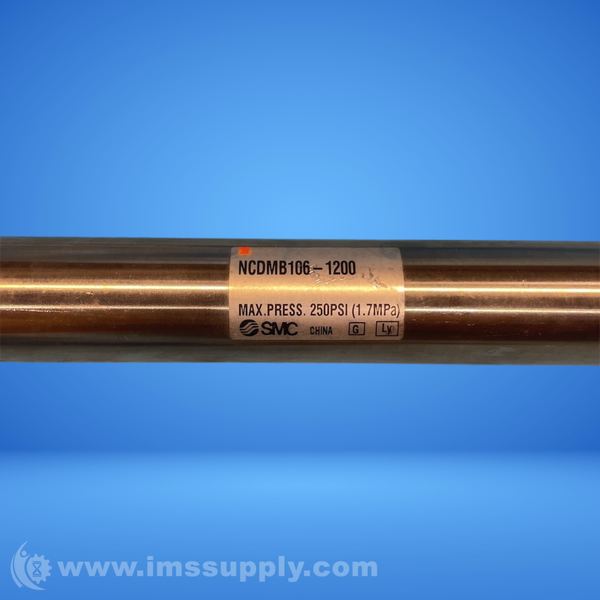

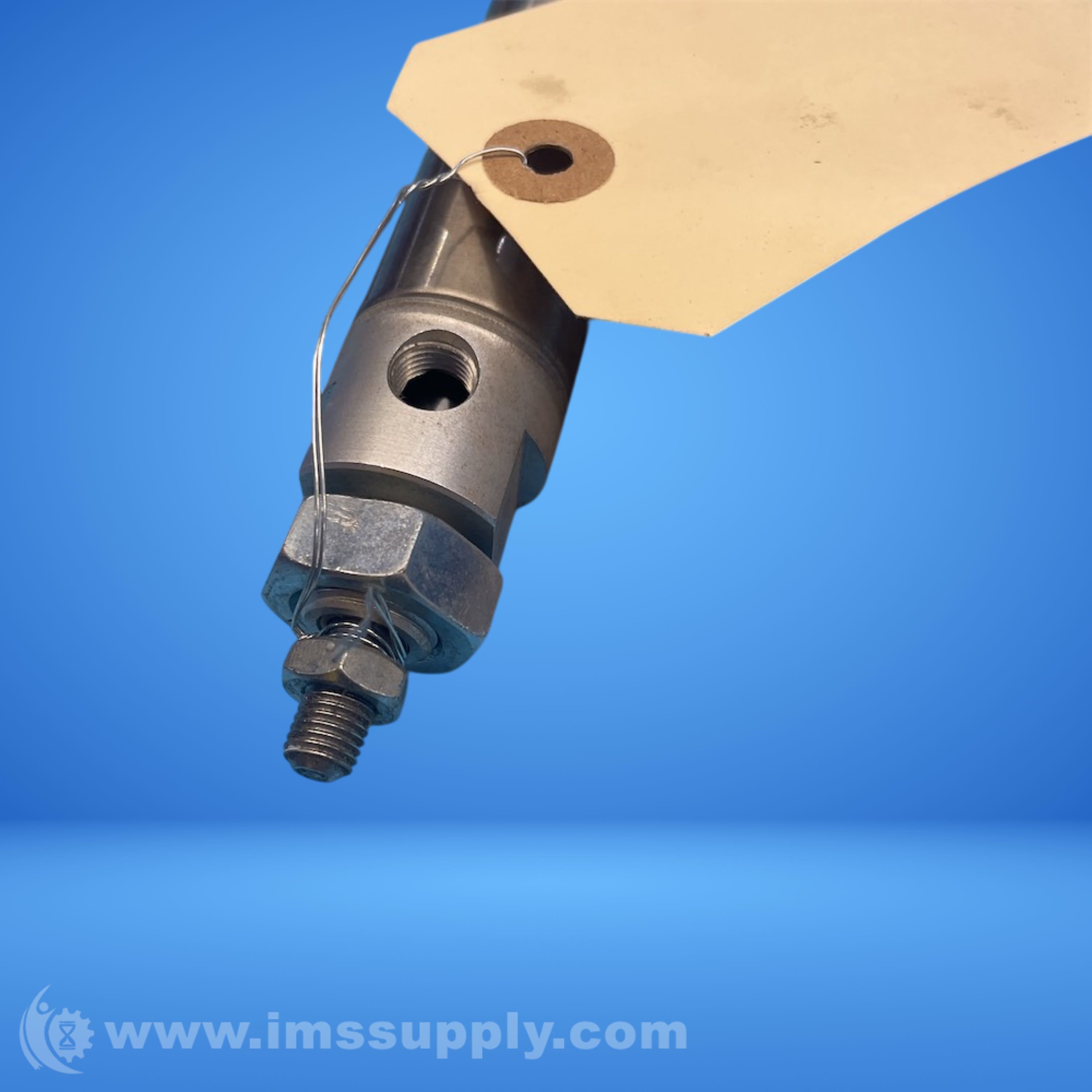

SMC NCDMB106-1200 NCM AIR CYLINDER
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: NCDMB106-1200
IMS Product Code: 1343976
Packaging: Sold Individually
Description:
SMC NCDMB106-1200 NCM Air Cylinder
Standard double acting single rod version of NCM stainless steel cylinders. Bore sizes range from 7/16" to 2" and standard strokes from 1/2" to 12".
Specifications
- Series: NCM
- Bore Diameter: 1.0625 in
- Stroke: 12.000 in
- Piston Action: Double-Acting
- Rod Type: Single Rod
- Cushion Type: None
- Port Size: 1/8 NPT
- Options Included: Magnetized, Switch Ready
- Operating Pressure Range: 8 psi to 250 psi
- Push Force At 100 Psi: 88.7 lbf
- Pull Force At 100 Psi: 81.1 lbf
- Operating Temperature Range: 40 degrees F to 140 degrees F
- Overall Length: 15-3/4 in
- Overall Width: 1.12 in
- Body Material: Stainless Steel
- Port Thread Standard: NPT
- Maximum Operating Pressure: 250 psi
- Minimum Operating Pressure: 8 psi
- Mounting Type: Nose Mount
- Port Gender: Female
- Rod Gender: Male
- Rod Size: .3125 in
- Rod Thread Standard: UNF
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
