SMC NCDME106-0300 AIR CYLINDER
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: NCDME106-0300
IMS Product Code: 1350425
Packaging: Sold Individually
Description:

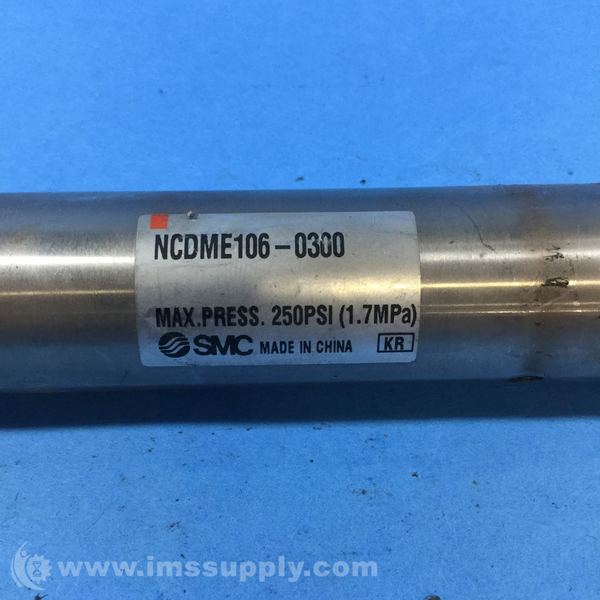

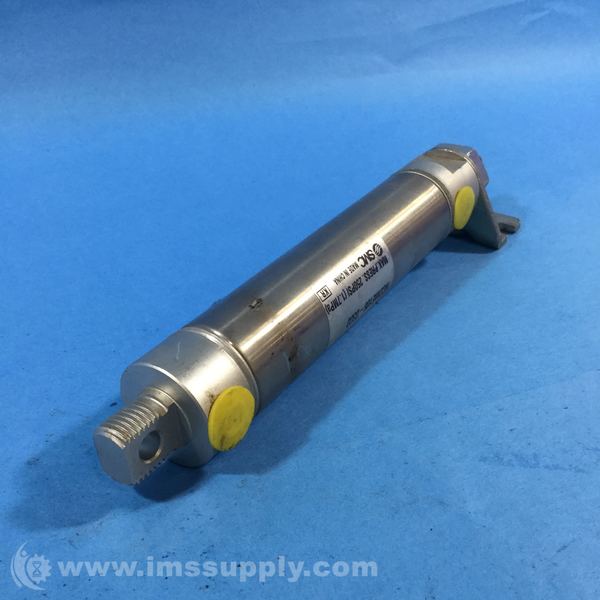

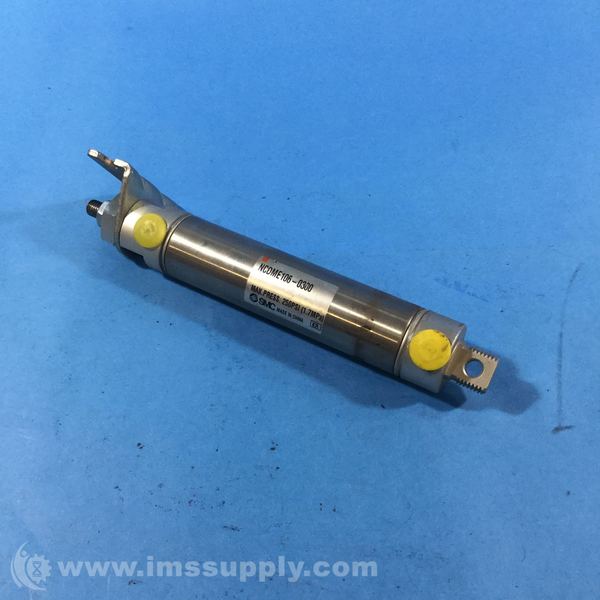

SMC NCDME106-0300 Air Cylinder
Double-acting round body air cylinder with stainless steel body and magnetized switch ready design. Features 1.0625 inch bore diameter, 3 inch stroke, and 1/8 NPT port size.
Specifications
- Bore Diameter: 1.0625 in
- Stroke: 3.000 in
- Piston Action: Double-Acting
- Rod Type: Single Rod
- Rod Size / Thread: 5/16-24 Male UNF
- Cushion Type: None
- Port Size: 1/8 NPT
- Operating Pressure Range: 8 psi to 250 psi
- Push Force At 100 Psi: 88.7 lbf
- Pull Force At 100 Psi: 81.1 lbf
- Operating Temperature Range: 40 F to 140 F
- Overall Length: 7.62 in
- Overall Width: 1.12 in
- Body Material: Stainless Steel
- Port Thread Standard: NPT
- Mounting Type: Double End Mount
- Rod Gender: Male
- Rod Size: .3125 in
- Rod Thread Standard: UNF
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 2 In Stock
Ships today if ordered in the next 10 hours and 42 minutes.
