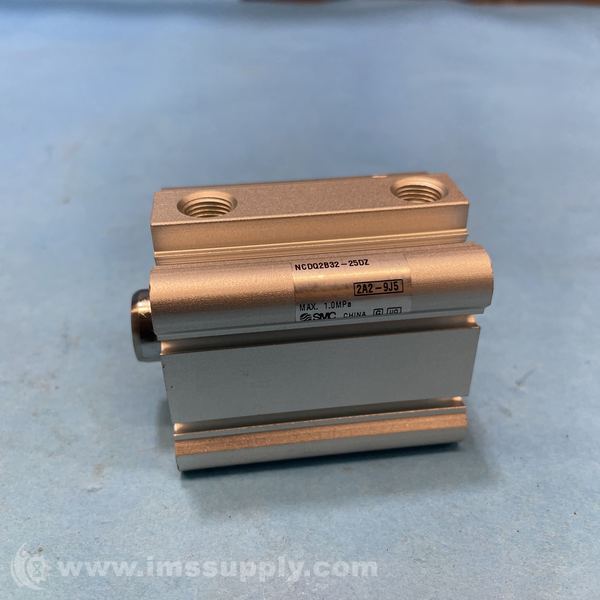

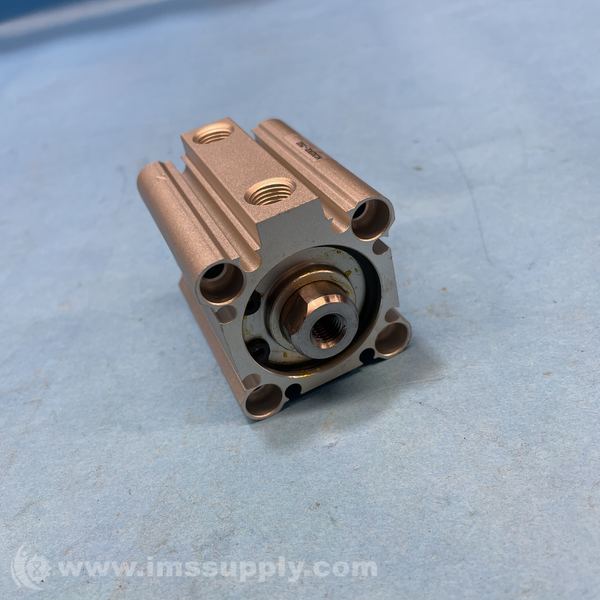

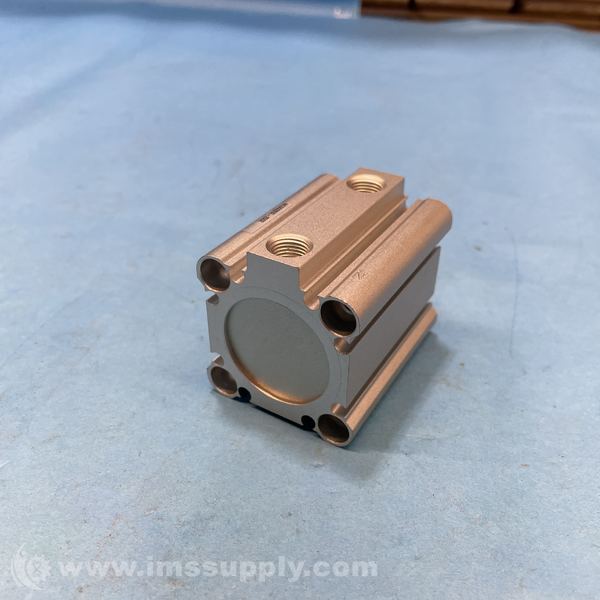

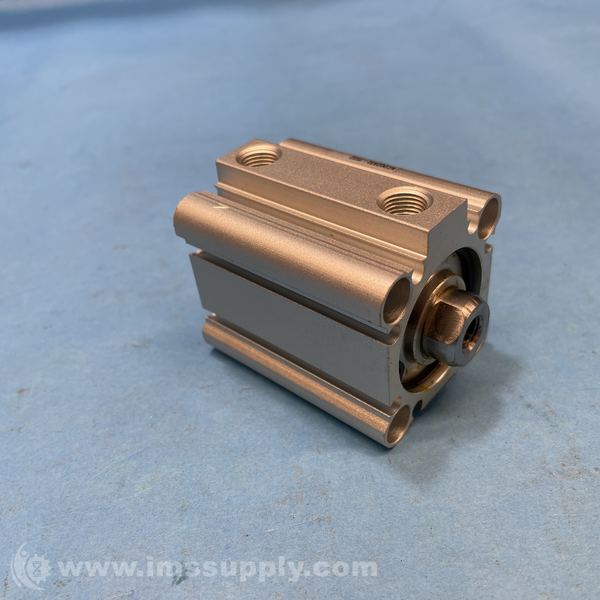

SMC NCDQ2B32-25DZ PNEUMATIC CYLINDER
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: NCDQ2B32-25DZ
IMS Product Code: 1367281
Packaging: Sold Individually
Description:
SMC NCDQ2B32-25DZ Pneumatic Cylinder
Double acting, single rod, compact cylinder
Specifications
- Series: NCQ2-Z COMPACT CYLINDER
- Weight: 0.57540 lb
- Compact Cylinder Type: Standard
- Bore Diameter: 32 mm
- Stroke: 25 mm
- Piston Action: Double-Acting
- Rod Type: Single Rod
- Options Included: Magnetized, Switch Ready
- Cylinder Series: NCQ2
- Port Thread Standard: Rc
- Rod Gender: Female
- Type: Pneumatic
- Body Option: Standard (Rod end female thread)
- Mounting Type: Through Holes
- Product Type: Compact Air Cylinders
- Cylinder Bore: 32 mm
- Mounting: Through Hole
- Bore Diameter: 32 mm
- Stroke Length: 25 mm
- Cylinder Action: Double Acting
- Cylinder Type: Compact
- Mounting Style: Through Hole
- Body Material: Aluminum
- Magnetic Piston: Magnetic Piston
- Cushion Type: None
- For Fluid Type: Air
- Number of Rods: Single Rod
- Maximum Operating Pressure: 145 psi
- Minimum Operating Pressure: 7.3 psi
- Body Material Finish: Anodized
- Rod Diameter: 16 mm
- Rod Thread Size: 5/16"-24 UNF
- Piston Material: Aluminum
- Piston Material Finish: Chromate Coated
- Piston Rod Material: Carbon Steel
- Piston Rod Material Finish: Chrome Plated
- Maximum Operating Temperature: 158 degrees F
- Minimum Operating Temperature: 14 degrees F
- Overall Height: 45 mm
- Overall Width: 45 mm
- Weight: 0.2 kg
- Rod Rotation: Rotating Rod
- Bore Size (Inch): 1-1/4
- Bore Size (mm): 32.00
- Rod Diameter (Decimal Inch): 0.6300
- Rod Diameter (mm): 16.00
- Stroke Length (Inch): 1
- Stroke Length (mm): 25.00
- Port Size: 1/8
- Port Type: NPT
- Width (Decimal Inch): 1.9480
- Width (mm): 49.50
- Length (Decimal Inch): 2.165
- Length (mm): 30.00
- Material: Aluminum Alloy, Aluminum
- Seal Material: Nitrile butadiene rubber
- Maximum Working Pressure (psi): 145
- Built-in Magnet: Built-in Magnet
- Mounting Style: Through-hole (Standerd)
- Type: Standard Type
- Bore Size: 32 mm
- Cylinder Stroke: 25 mm
- Dual Stroke Mark: Without Two Stroke Mark
- Cylinder Stroke 2: Without Cylinder Stroke 2
- Body Option: Standard (Rod End Female Thread)
- Auto Switch Mounting Groove: ?12-?25 2 Sides/?32-?100 4 Sides
- Auto Switch: Without Auto Switch
- Number Of Auto Switches: 2 pcs. Or None
- Made To Order: Standard
