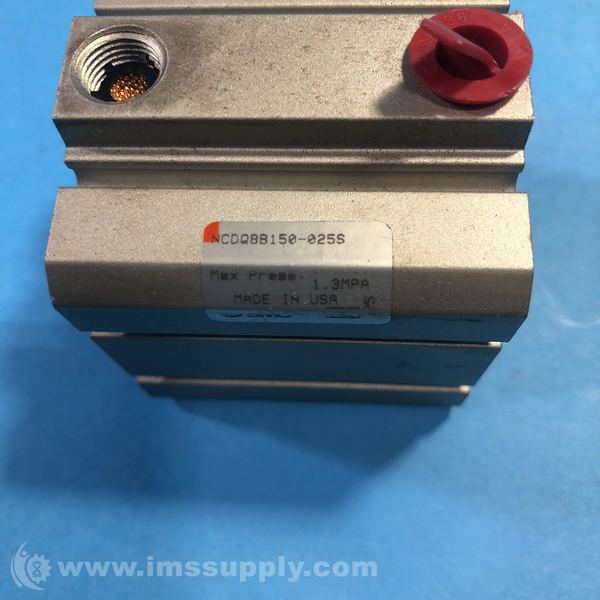

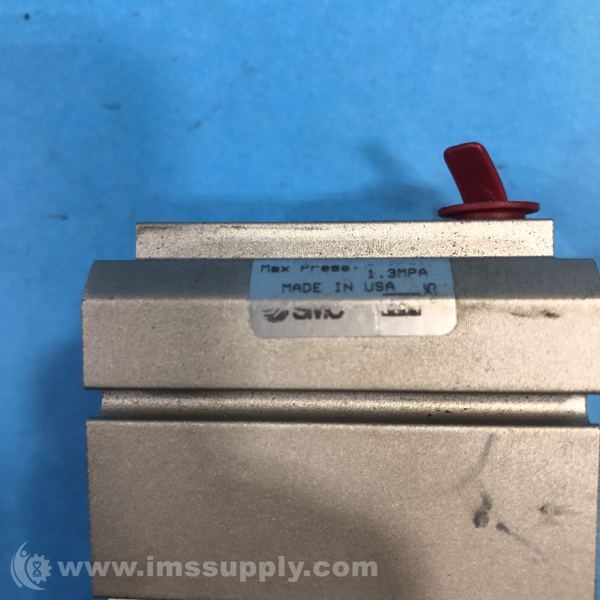

SMC NCDQ8B150-025S COMPACT CYLINDER
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: NCDQ8B150-025S
IMS Product Code: 1384427
Packaging: Sold Individually
Description:
SMC NCDQ8B150-025S Compact Cylinder
SMC's single acting, single rod version of the NCQ8 series is a square body, compact interchange type cylinder that allows close center to center mounting. Mounting of the auto switch is easy and is mountable on multi-sides. Use of the retaining ring method improves maintenance performance.
Specifications
- Bore Diameter: 1.5000 in
- Stroke: 0.250 in
- Piston Action: Single-Acting Spring Return
- Rod Type: Single Rod
- Rod Size / Thread: 3/8-24 Female UNF
- Port Size: 1/8 NPT
- Cushion Type: None
- Options Included: Spring Return
- Proof Pressure: +300 psi
- Operating Pressure Range: +22 to +200 psi
- Operating Temperature Range: +15 to +150 F
- Standards Met: ANSI/ASME B 1.1-1989
- Overall Width: 2 in
- Overall Height: 2.19 in
- Cylinder Series: NCQ8
- Maximum Operating Pressure: +200 psi
- Minimum Operating Pressure: +22 psi
- Port Gender: Female
- Port Thread Standard: NPT
- Rod Gender: Female
- Mounting Type: Through Hole
- Rod Size: 3/8-24 in
- Rod Thread Standard: UNF
- Series: NCQ8
- Product Type: Compact Air Cylinders
- Cylinder Stroke Range: 1/8 to 2
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
