SMC NCDY2S25H-0800B RODLESS CYLINDER
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: NCDY2S25H-0800B
IMS Product Code: 1390448
Packaging: Sold Individually
Description:

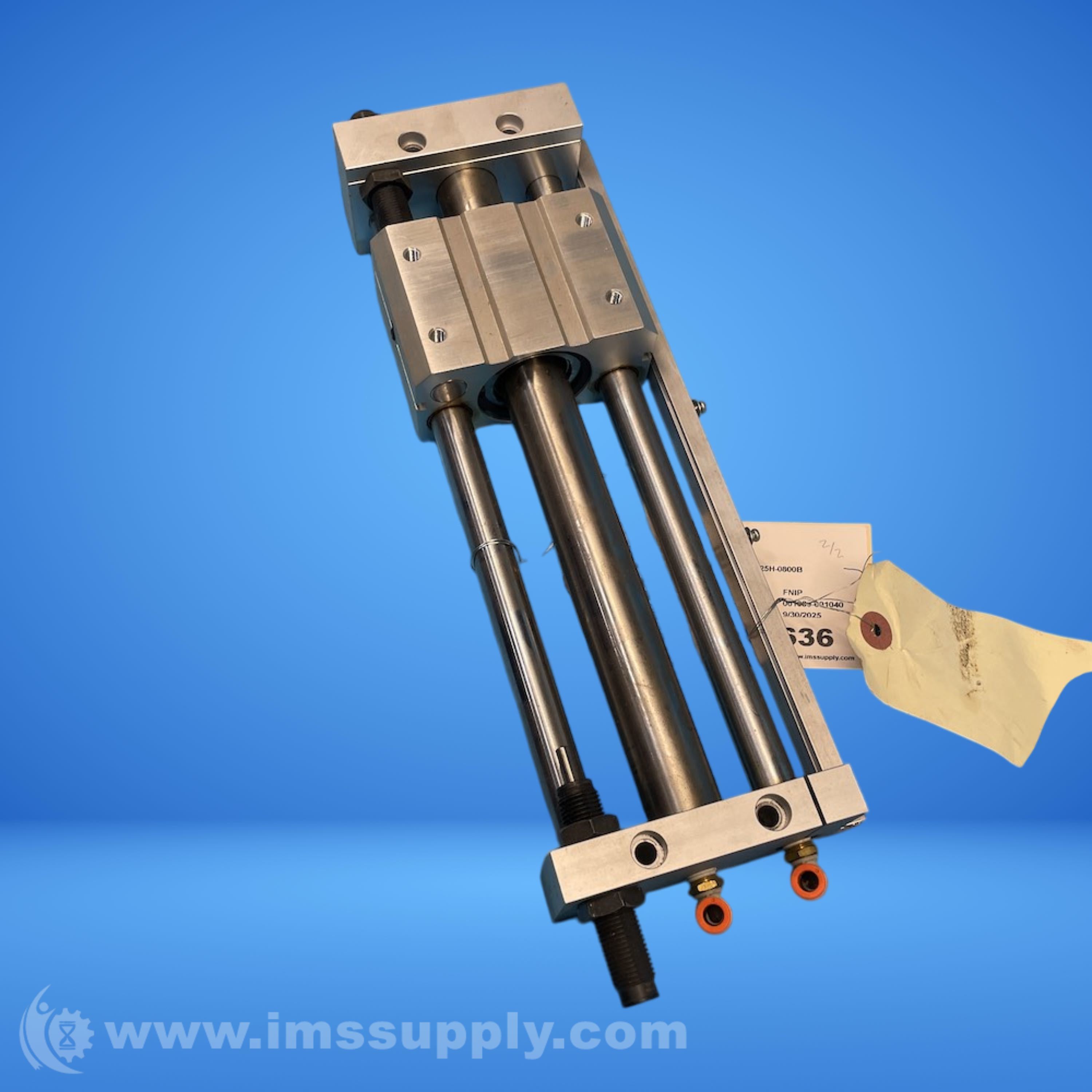

SMC NCDY2S25H-0800B Rodless Cylinder
Magnetically coupled rodless cylinder with slide bearing guide, 1 inch bore diameter, 8 inch stroke, double-acting, urethane cushion.
Specifications
- Series: NCY2
- Cylinder Style: Magnetically Coupled
- Guide Type: Slide Bearing Guide
- Bore Diameter: 1.0000 in
- Stroke: 8.000 in
- Cushion Type: Urethane Cushion
- Piston Action: Double-Acting
- Port Thread Standard: NPT
- Port Size: 1/8 NPT
- Port Gender: Female
- Stroke Adjuster Type: B = (Left: Shock Absorber + Adjusting Bolt), (Right: Shock Absorber + Adjusting Bolt)
- Options Included: Switch Ready
- Mounting Orientation: Horizontal
- Operating Temperature Range: 14 to 140 F
- Overall Height: 2.13 in
- Overall Width: 4.49 in
- Overall Length: 13.41 in
- Operating Pressure Range: 26 to 101 psi
- Minimum Operating Pressure: 26 psi
- Maximum Operating Pressure: 101 psi
- Proof Pressure: 152 psi
- Seal Kit: CY2S25-PS
- Mounting Type: Basic
- Product Type: Rodless Air Cylinders
- Type: slide bearing
- Bore size (mm): 25
- Maximum stroke: 60"
- Auto switch capable: true
