SMC NCMB075-0150C ROUND BODY CYLINDER
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: NCMB075-0150C
IMS Product Code: 1402086
Packaging: Sold Individually
Description:

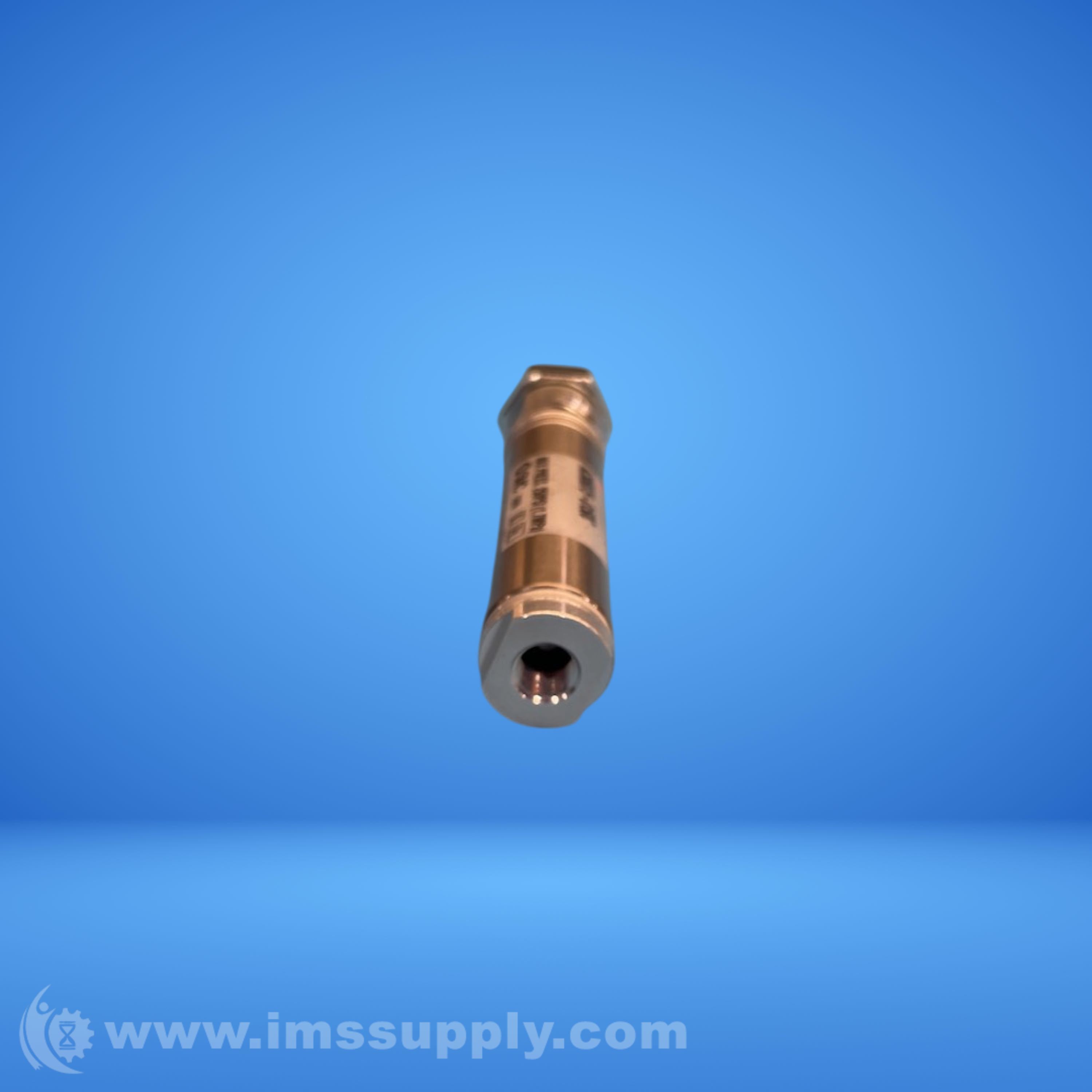

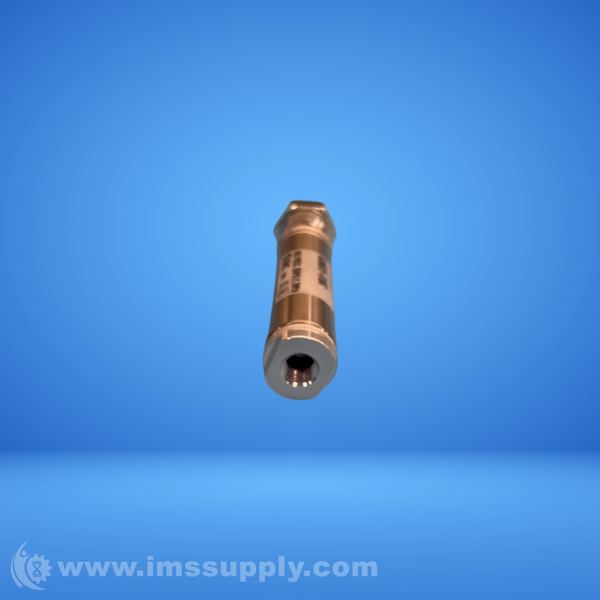

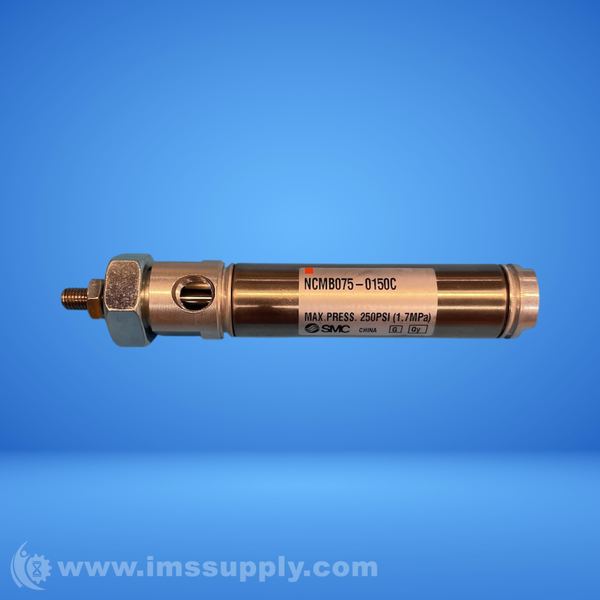

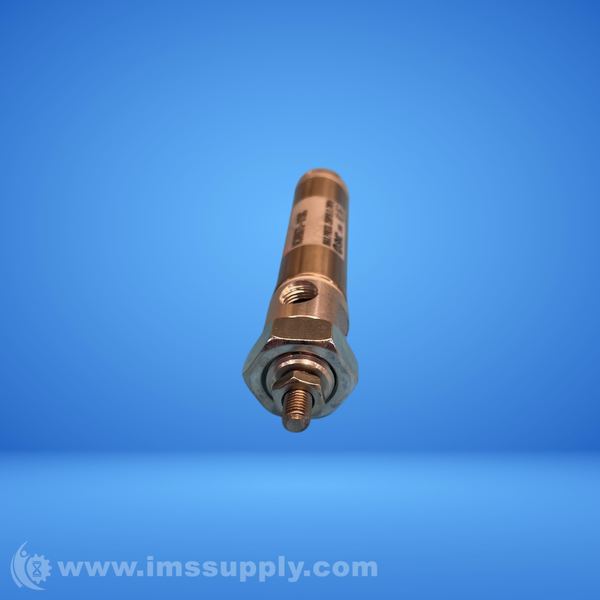

SMC NCMB075-0150C Round Body Cylinder
Double acting single rod stainless steel cylinder with wear ring and bronze rod bushing. Available in nose mount configuration.
Specifications
- Bore Diameter: 0.7500 in
- Stroke: 1.500 in
- Body Material: Stainless Steel
- Mounting Type: Nose Mount
- Piston Action: Double-Acting
- Port Size: 1/8 NPT
- Maximum Operating Pressure: 250 psi
- Minimum Operating Pressure: 8 psi
- Operating Temperature Range: 40 degrees F to 140 degrees F
- Overall Length: 4.97 in
- Overall Width: 0.86 in
- Pull Force At 100 Psi: 39.3 lbf
- Push Force At 100 Psi: 44.2 lbf
- Rod Size: 0.2500 in
- Rod Thread Standard: UNF
