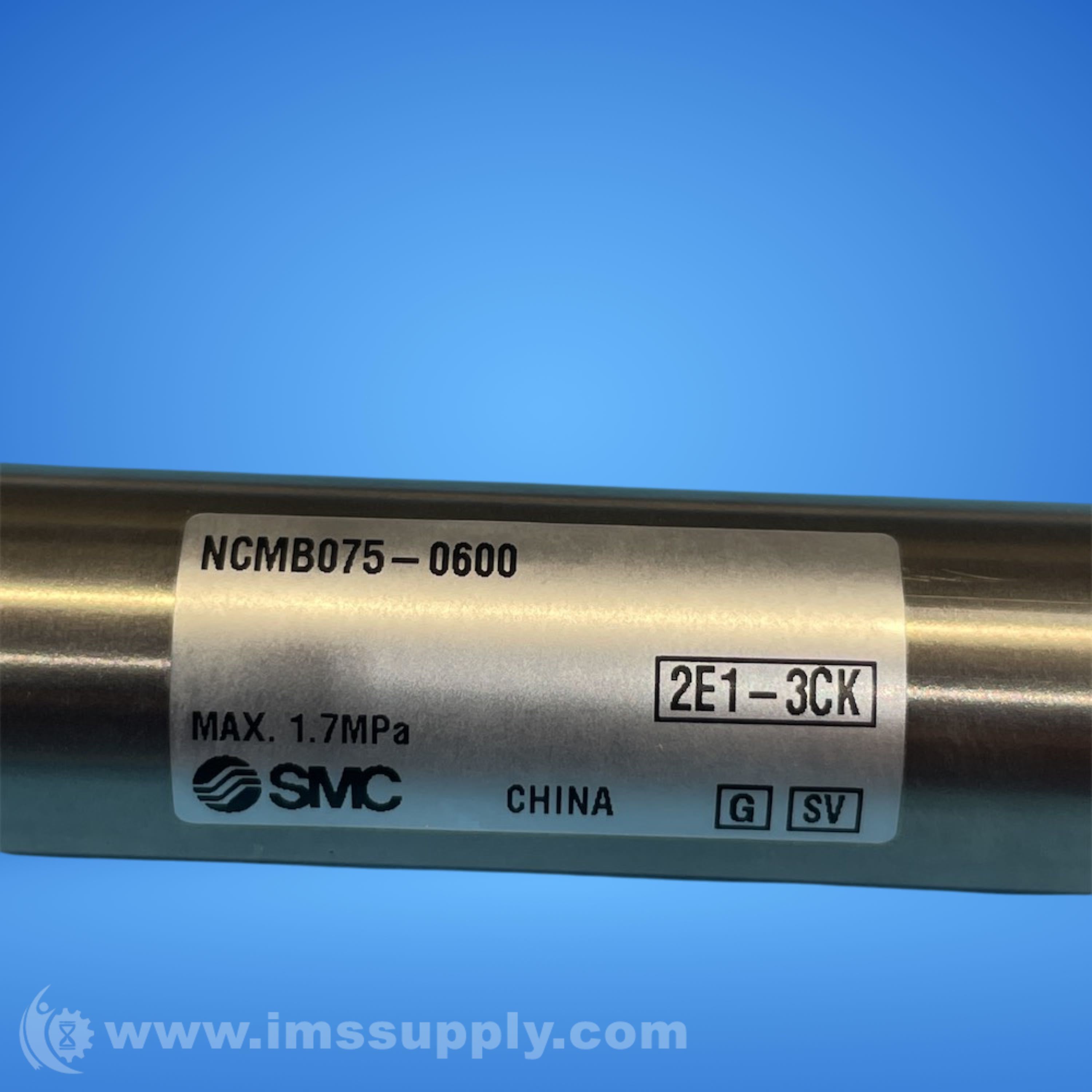

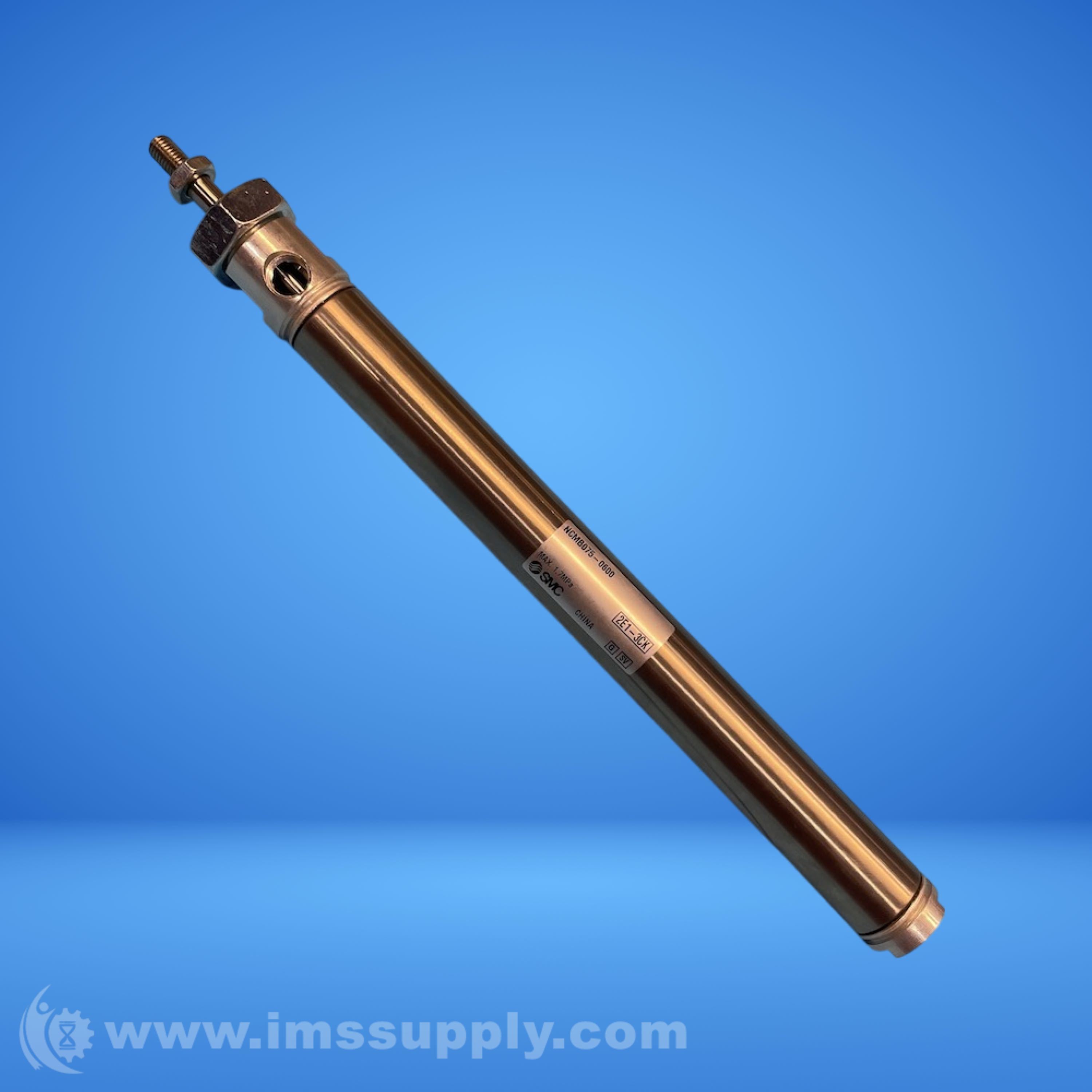

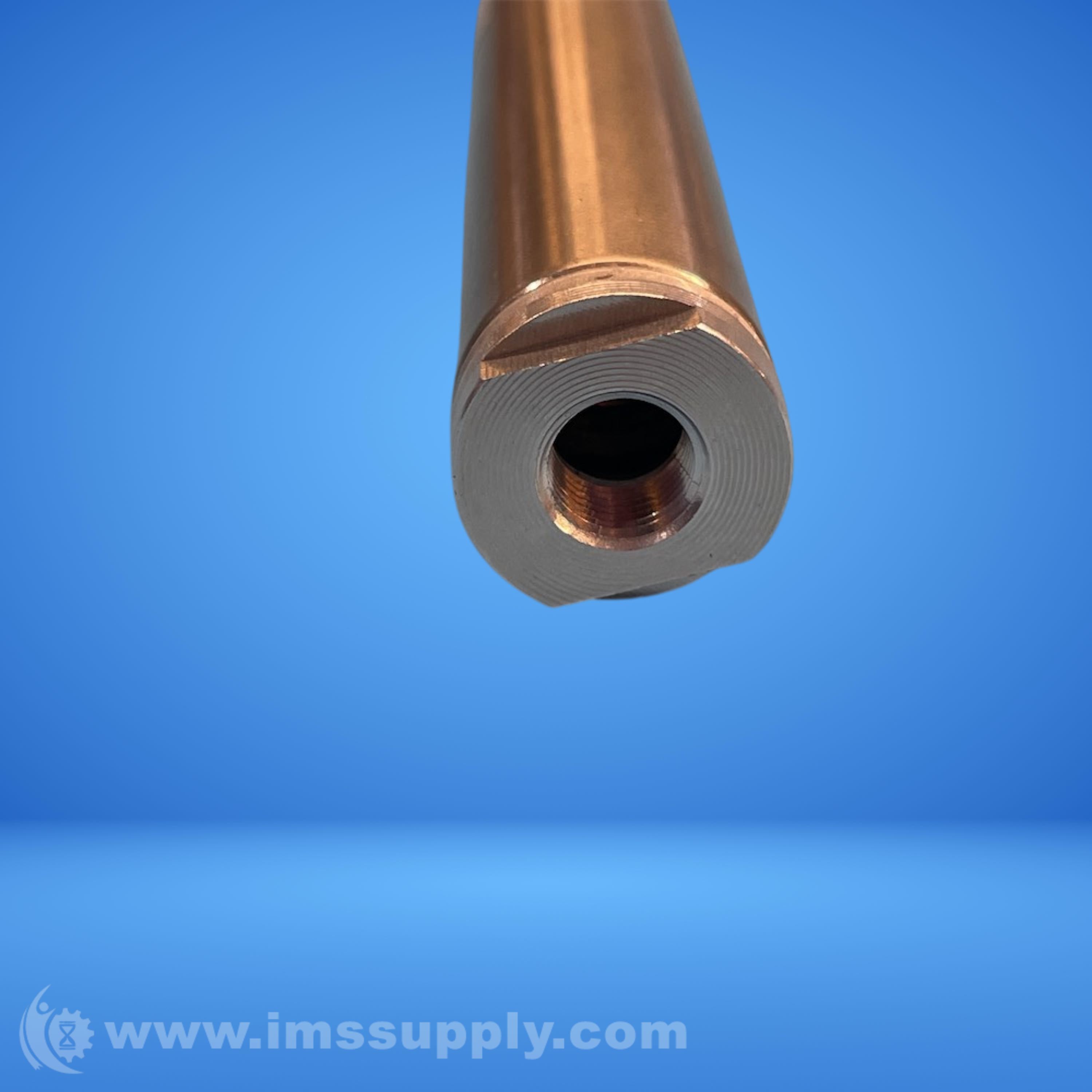

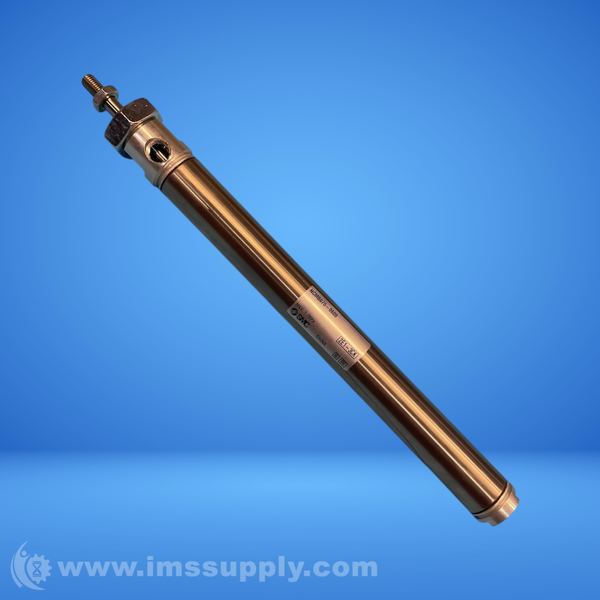

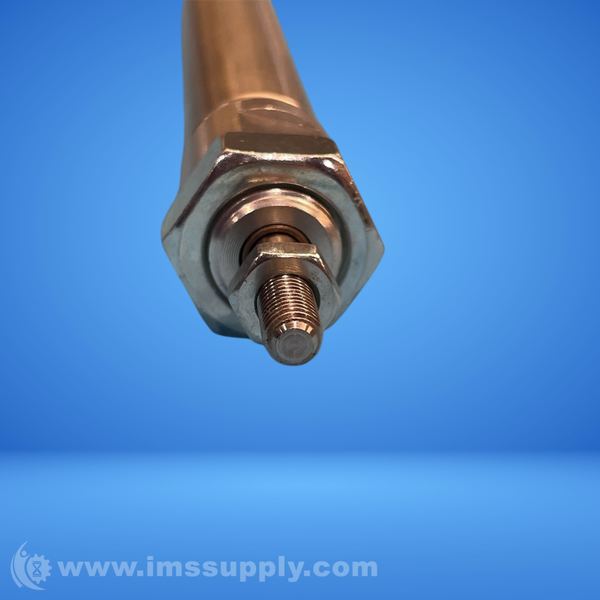

SMC NCMB075-0600 ROUND BODY AIR CYLINDER
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: NCMB075-0600
IMS Product Code: 2127400
Packaging: Sold Individually
Description:
SMC NCMB075-0600 Round Body Air Cylinder
Double-acting round body air cylinder with stainless steel body, 0.75 inch bore diameter, 6 inch stroke, and 1/8 NPT port size.
Specifications
- Series: NCM
- Bore Diameter: 0.7500 in
- Stroke: 6.000 in
- Piston Action: Double-Acting
- Rod Type: Single Rod
- Rod Size / Thread: 1/4-28 Male UNF
- Cushion Type: None
- Port Size: 1/8 NPT
- Operating Pressure Range: 8 psi to 250 psi
- Push Force At 100 Psi: 44.2 lbf
- Pull Force At 100 Psi: 39.3 lbf
- Operating Temperature Range: 40 F to 140 F
- Overall Length: 9.47 in
- Overall Width: 0.86 in
- Body Material: Stainless Steel
- Mounting Type: Nose Mount
- Port Gender: Female
- Rod Gender: Male
- Rod Size: .2500 in
- Rod Thread Standard: UNF
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
