SMC NCMB106-0200 DOUBLE-ACTING AIR CYLINDER
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: NCMB106-0200
IMS Product Code: 1402902
Packaging: Sold Individually
Description:

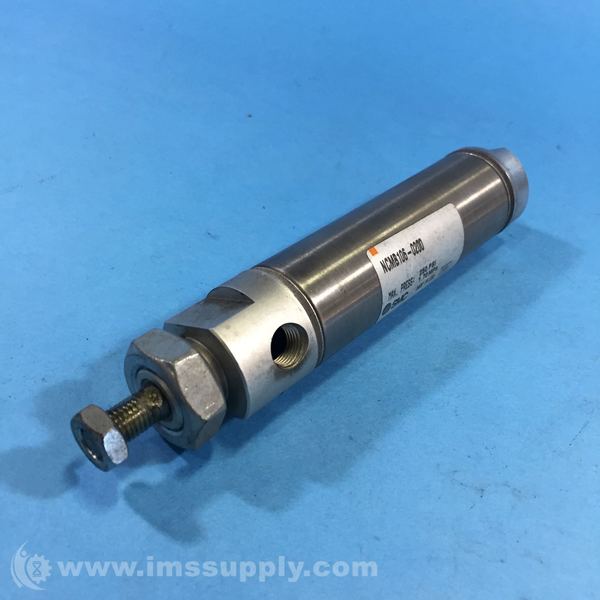

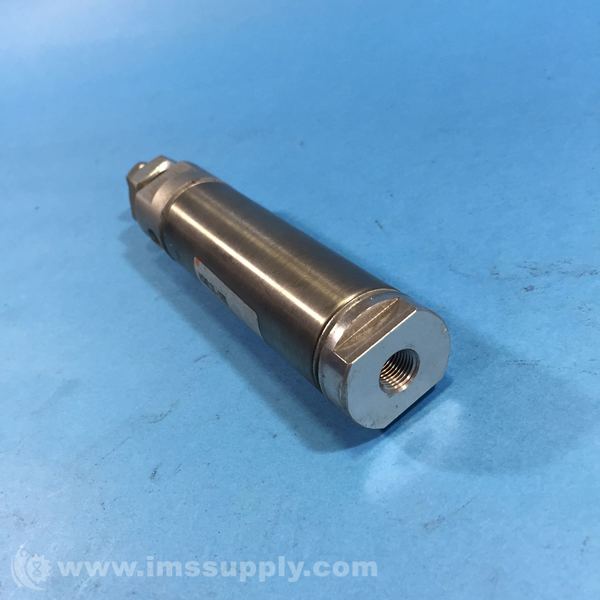

SMC NCMB106-0200 Double-Acting Air Cylinder
Stainless steel round body air cylinder with 1.0625 inch bore diameter and 2 inch stroke. Double-acting with single rod, nose mount design.
Specifications
- Bore Diameter: 1.0625 in
- Stroke: 2.000 in
- Piston Action: Double-Acting
- Rod Type: Single Rod
- Rod Size / Thread: 5/16-24 Male UNF
- Cushion Type: None
- Port Size: 1/8 NPT
- Operating Pressure Range: 8 psi to 250 psi
- Push Force At 100 Psi: 88.7 lbf
- Pull Force At 100 Psi: 81.1 lbf
- Operating Temperature Range: 40 degrees F to 140 degrees F
- Overall Length: 5-3/4 in
- Overall Width: 1.12 in
- Body Material: Stainless Steel
- Port Thread Standard: NPT
- Mounting Type: Nose Mount
- Maximum Operating Pressure: 250 psi
- Minimum Operating Pressure: 8 psi
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
