SMC NCMB106-0300 ROUND BODY AIR CYLINDER
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: NCMB106-0300
IMS Product Code: 1403005
Packaging: Sold Individually
Description:

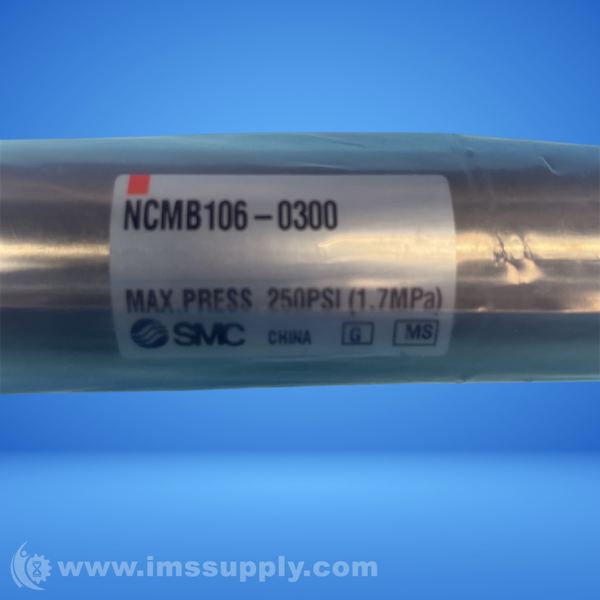

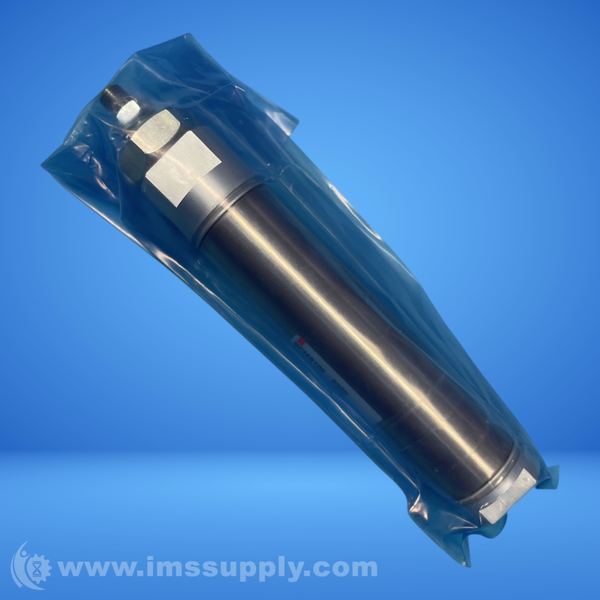

SMC NCMB106-0300 Round Body Air Cylinder
Double-acting round body air cylinder with stainless steel body, 1.0625 inch bore diameter, 3 inch stroke, and 1/8 NPT port size.
Specifications
- Series: NCM
- Bore Diameter: 1.0625 in
- Stroke: 3.000 in
- Piston Action: Double-Acting
- Rod Type: Single Rod
- Cushion Type: None
- Port Size: 1/8 NPT
- Operating Pressure Range: 8 psi to 250 psi
- Push Force At 100 Psi: 88.7 lbf
- Pull Force At 100 Psi: 81.1 lbf
- Operating Temperature Range: 40 F to 140 F
- Overall Length: 6-3/4 in
- Overall Width: 1.12 in
- Body Material: Stainless Steel
- Mounting Type: Nose Mount
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
