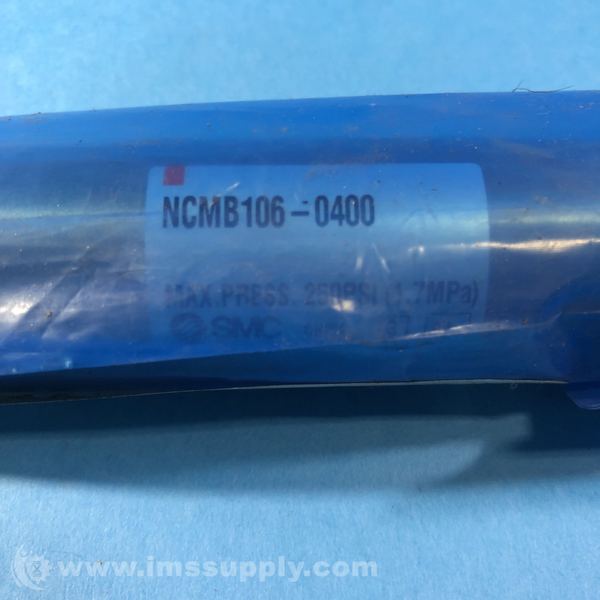

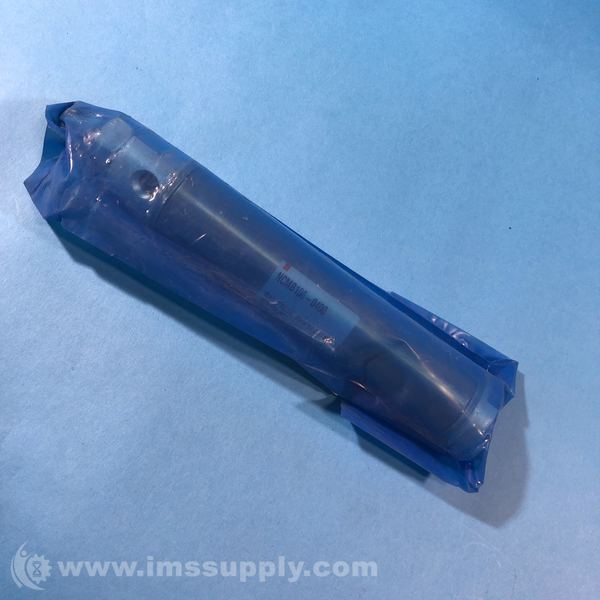

SMC NCMB106-0400 STAINLESS STEEL AIR CYLINDER
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: NCMB106-0400
IMS Product Code: 1938916
Packaging: Sold Individually
Description:
SMC NCMB106-0400 Stainless Steel Air Cylinder
Double-acting round body air cylinder with 1.0625 inch bore diameter and 4 inch stroke. Made of stainless steel with nose mounting and 1/8 NPT ports.
Specifications
- Series: NCM
- Bore Diameter: 1.0625 in
- Stroke: 4 in
- Body Material: Stainless Steel
- Mounting Type: Nose Mount
- Cushion Type: None
- Port Size: 1/8 NPT
- Operating Pressure Range: 8 psi to 250 psi
- Piston Action: Double-Acting
- Rod Type: Single Rod
- Rod Size / Thread: 5/16-24 Male UNF
- Overall Length: 7-3/4 in
- Overall Width: 1.12 in
- Maximum Operating Pressure: 250 psi
- Minimum Operating Pressure: 8 psi
- Operating Temperature Range: 40 °F to 140 °F
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
