SMC NCMB125-0800C AIR CYLINDER
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: NCMB125-0800C
IMS Product Code: 1403608
Packaging: Sold Individually
Description:

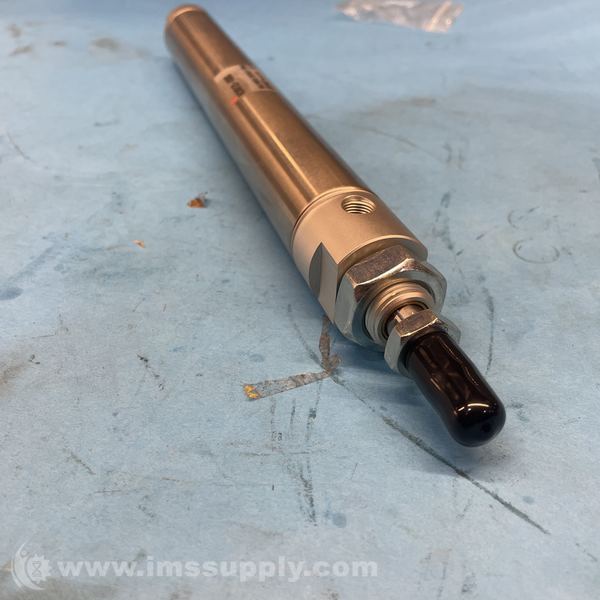

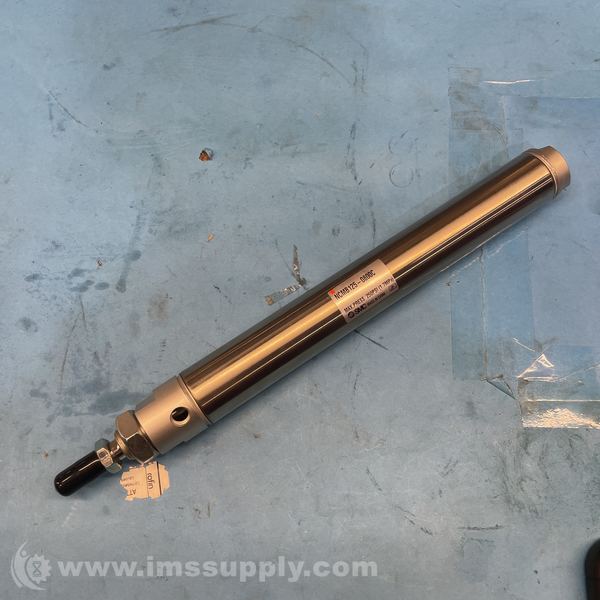

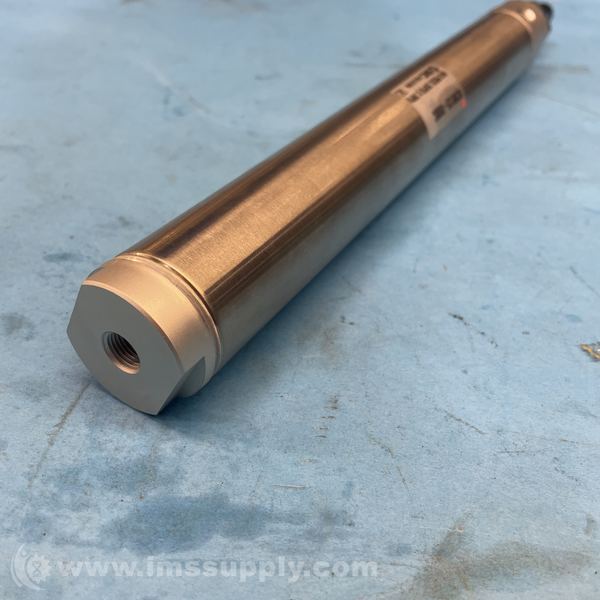

SMC NCMB125-0800C Air Cylinder
Double acting single rod air cylinder with 1-1/4 inch bore and 8 inch stroke. Nose mounting type with rubber bumper cushion. Stainless steel body material.
Specifications
- Bore Diameter: 1.2500 in
- Stroke: 8.000 in
- Piston Action: Double-Acting
- Rod Type: Single Rod
- Cushion Type: Rubber Bumper
- Port Size: 1/8 NPT
- Operating Pressure Range: 8 psi to 250 psi
- Push Force At 100 Psi: 122.7 lbf
- Pull Force At 100 Psi: 107.7 lbf
- Operating Temperature Range: 40 °F to 140 °F
- Overall Length: 12-3/4 in
- Overall Width: 1.32 in
- Body Material: Stainless Steel
- Mounting Type: Nose Mount
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
